Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117

Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117

  • Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117
  • Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117
  • Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117
  • Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117
Nozzle Salt Spray Corrosion Test Chamber , High precision Salt Fog Test ASTM B117
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 2423, GB/T 10125, ASTM.B117, IEC68-2
Model Number: YY1020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 6 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Environmental Test Chamber Usage: Salt Fog Testing Equipment
Material: PP&PVC Temperature Control Meter: 1.0~6.0
Spray Volume: 1.0~2.0ml /80cm2 /h Power Supply: AC220V, 50/60HZ
High Light:

sand and dust test chamber

,

thermal shock test chamber

Nozzle Salt Spray Environmental Test Chamber, Salt Water Spray Testing Equipment





Product Description:


Nozzle salt spray machine is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.



Salt Fog Testing Machine of the Salt Water Spray Test Chamber for CASS, NSS Test :


1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test




Structure:

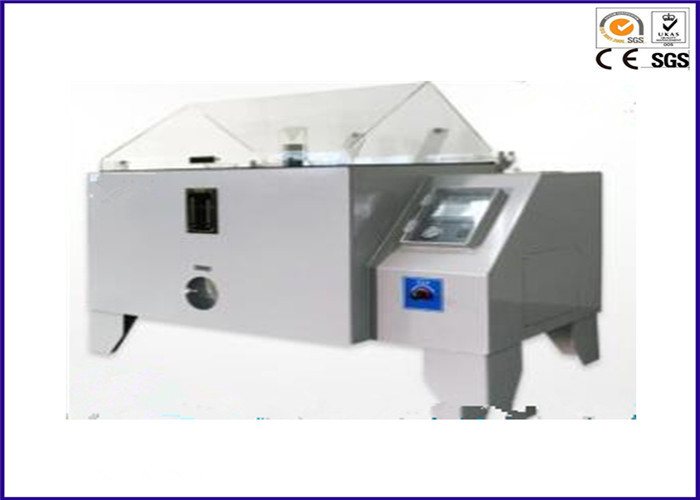

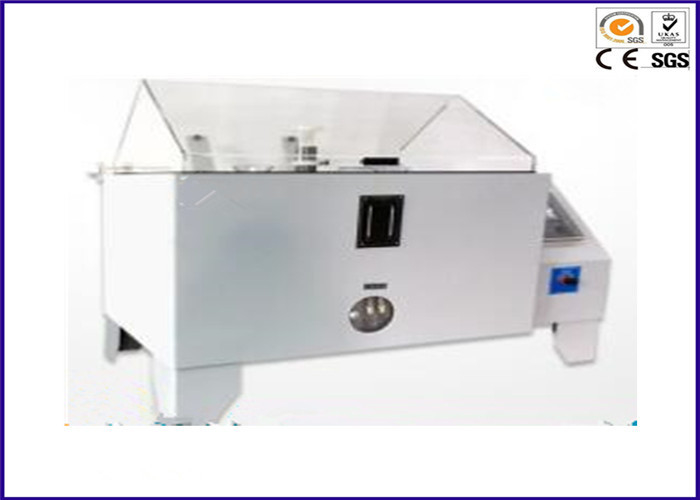

1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.

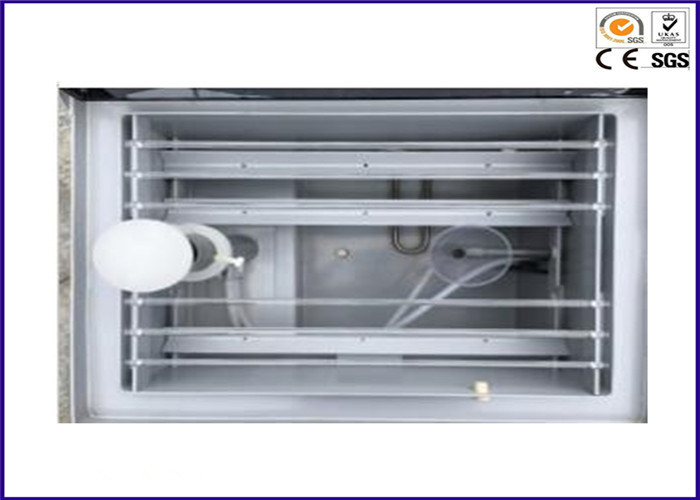

3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4. Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
5. Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
6. With automatic demist device, it can clear observe the tested products after the experience is finished.
7. Three complete temperature control systems (Saturated air temperature, temperature inside the chamber, test liquid temperature) ensure the consistency and standards of the test.




Control System:


High precision P.I.D.temperature control meter with its error ±0.1°C.



Technical parameters:



Model YY1020-60 YY1020-90 YY1020-120 YY1020-160 YY1020-200
Internal Dimension WxHxD (mm) 600x450x400 900x600x500 1200x800x500 1600x800x500 2000x1000x500
External Dimension WxHxD (mm) 1100x600x1200 1400x950x1200 1900x1300x1400 2300x1300x1400 2700x1500x1500
Lab Temperature Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C
Lab Capacity(L) 108 270 480 640 1000
Saline Capacity(L) 15 25 40 40 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Exter./Inter.Material P.V.C & P.P
Compressed Air Pressure(Kgf) 1.0~6.0
Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Power AC220V , lines15A
Weight(Kg) 65 80 120 160 200
System Salt Spray Vehicle Air+acid(base)liquid
Heating SUS#304 & #316stainless steel heater+taflon
Controller Hydrometer,salinomerer,fog collector,glass bar
Safety Devices Overheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator light
Power Source(K.W.) AC 1Ψ 220V 60/50Hz
1.1 1.5 3.5 5.5 7
