Name: Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY1009
Price: 11957.00 USD
Availability: InStock

Home > products > Environmental Test Chamber >

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

salt spray corrosion test chamber

salt spray test machine for mobile

environmental test chamber with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY1009

Request A Quote

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

Product Details

Model:

YY1009-108L

Test Room Size (WxLxH)(mm):

600*450*400

Machine Size (L×W×H) (mm):

1070*600*1180

Lab Temperature:

NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Saturator Temperature:

NSS.ACSS 47°C ± 1 °C / CASS 63°C ± 1 °C

Humidity:

85%~98%RH

Temperature Range:

± 0.5ºC

Salt Spray Subside:

1.0~2.0ml/80cm2/h

Power Supply:

AC220V 50HZ

Highlight:

salt spray corrosion test chamber

salt spray test machine for mobile

environmental test chamber with warranty

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

108L Salt Spray Cyclic Corrosion Test Chamber Test Equipment For Electronics

Get Best Price

Constant Environmental Cycling Control High-low Temperature Climatic Chamber With Controlled Temperature and Humidity

Get Best Price

Video

Lab Supplies Programmable Constant Temperature Humidity Chamber Test Equipment

Get Best Price

UV Aging Test Lamp For Bituminous Materials With 220v Voltage Current Power Monitor Power Factor Frequency Energy Meter

Get Best Price

86-769-26622869

Contact Now

Product Description

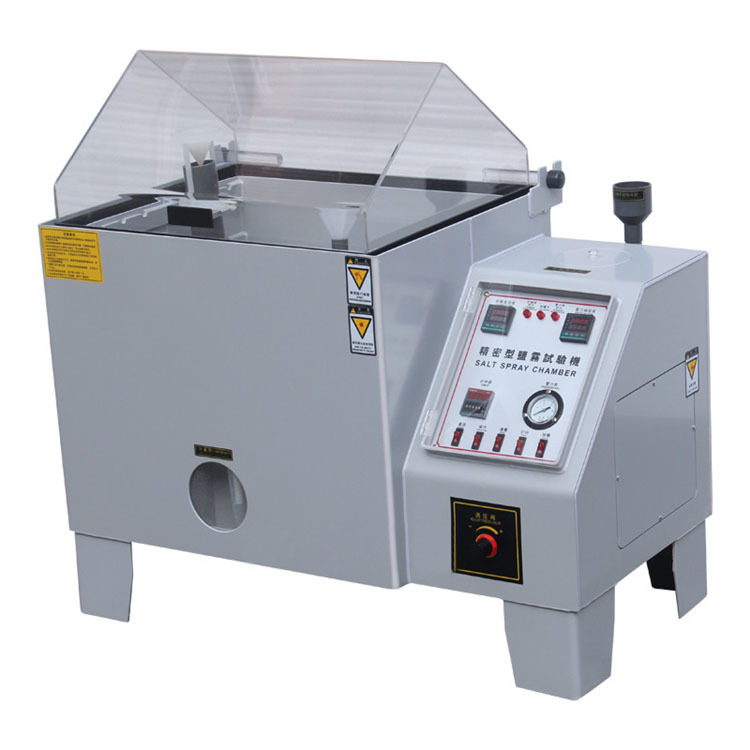

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

Product Specifications

Attribute	Value
Model	YY1009-108L
Test room size (WxLxH)(mm)	600450400
Machine size (L×W×H) (mm)	10706001180
Lab temperature	NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator temperature	NSS.ACSS 47°C ± 1 °C / CASS 63°C ± 1 °C
Humidity	85%~98%RH
Temperature range	± 0.5ºC
Salt spray subside	1.0~2.0ml/80cm2/h
Power supply	AC220V 50HZ

Product Description

Salt spray test chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after this anti-corrosive treatment to test the corrosion resistance of their products.

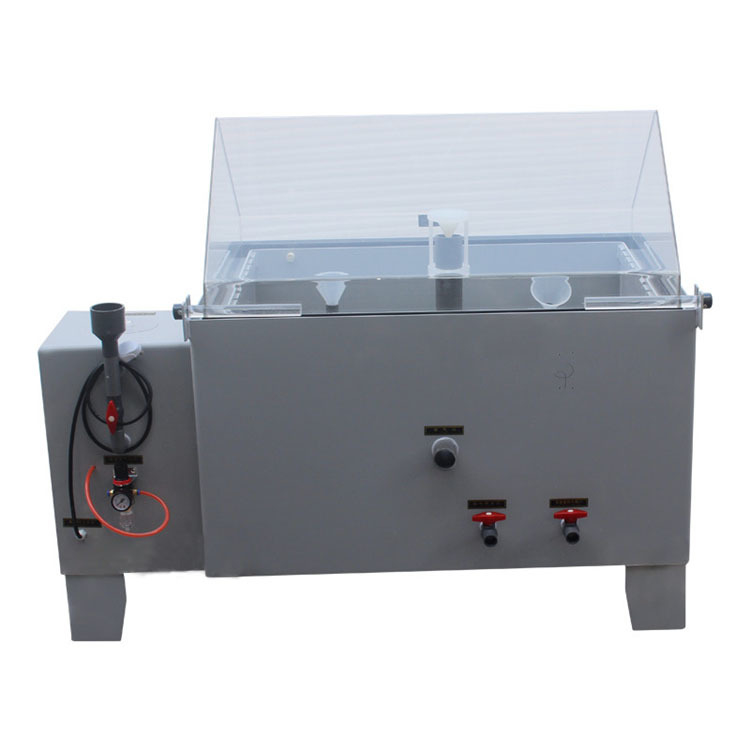

Construction Details

The tester body is made of light gray impact-resistant PVC board with thickness of 5mm and durable temperature at 85℃. The edge is surrounded by three-dimensional reinforcement thickness of 5mm, solid structure
The sealing of the test chamber cover is made of PVC impact-resistant board with a thickness of 5mm, which does not distort and deform when used at high temperatures. The edge of the inner and outer double-thickness, to prevent distortion and deformation due to long-term high temperature. Thickness 15mm

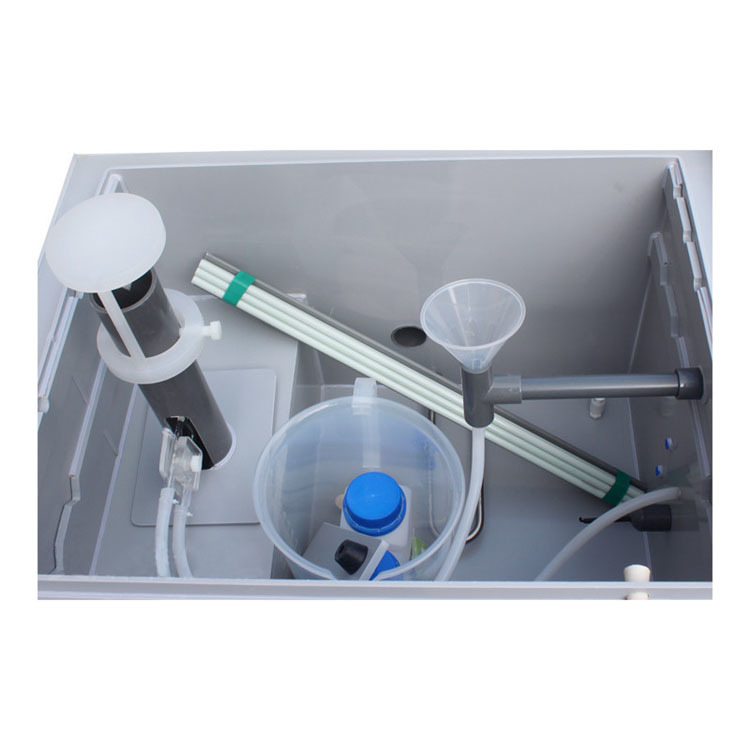

Hidden one-piece refill bottle, easy to clean and easy to operate
The saturated air barrel adopts SUS#304 stainless-steel high-pressure barrel with the best insulation effect
The specimen placing table is made of 8mm temperature-resistant ABS board, with strong load-bearing capacity, and the test specimen holder adopts plane indexing type, with arbitrary angle adjustment, even fog falling on all sides, and the fog is completely consistent, with accurate test results and a large number of test specimens placed

Compliance Standards

GB/T 2423.17, IEC60068-2-11, ISO4628-3, ISO9227, ASTM B117, JIS-Z2371, JIS-G3141, GJB 150.1, MIL-STD-810F, MIL-STD-883E and so on.
