| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | JIS-K6328,L1005 |
| Model Number: | YYX-021 |
| Packaging Details: | wooden case |
|---|---|
| Delivery Time: | 7 work days |
| Supply Ability: | 300 Set/Sets per Month |
| Specimen Dimension: | 25 × 100 Mm | Test Frequency: | 120 Rpm/min |
|---|---|---|---|
| Load: | 0.5 ~ 5kgf | Minimum Graduation: | 500g |
| Testing Displacement: | 0 ~ 50 Mm Adjustable | Counter: | LCD Digital Display, 0-999.99 |
| Dimension: | 650×510×300mm(L×W×H) | Weight: | About 55kg |
| High Light: | fatigue tester machine,perspiration tester |
||

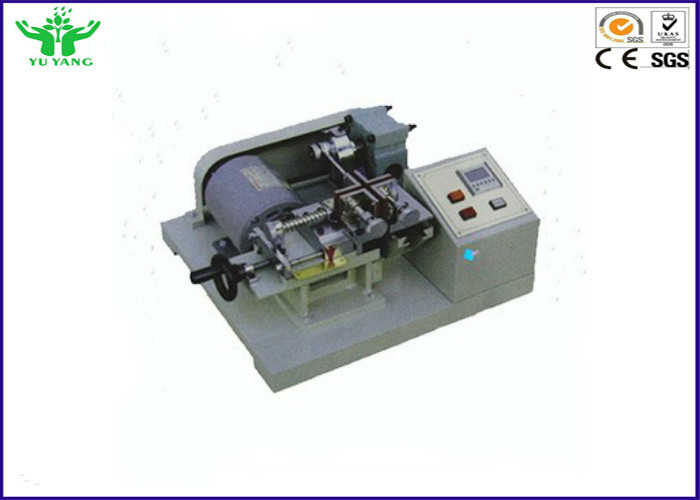

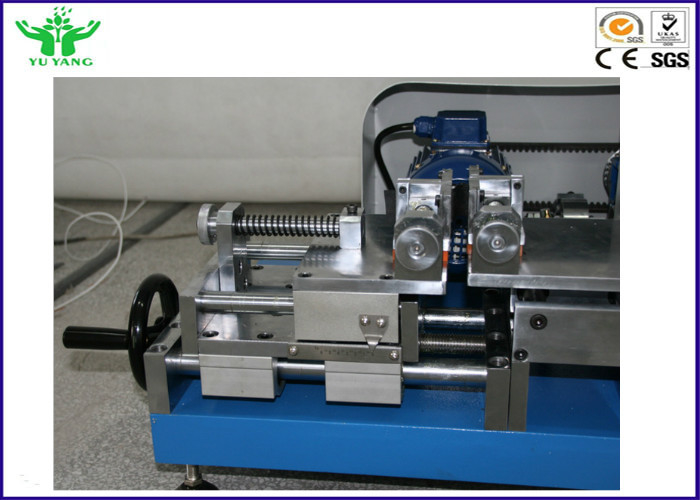

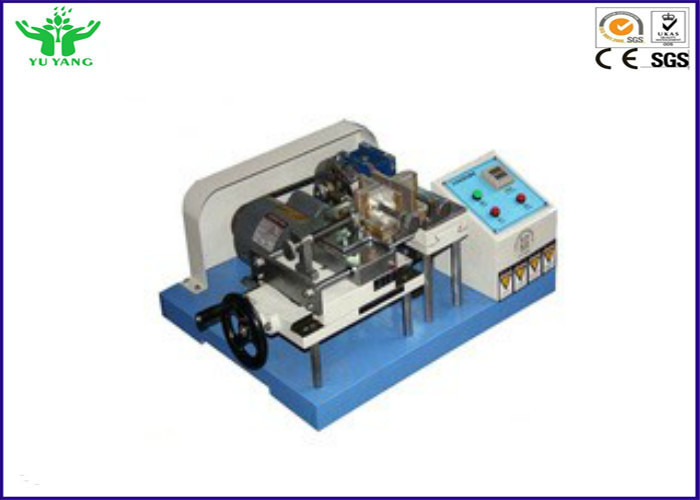

55KG LED Leather crumpling resistance / knead tester testing machine L1005
Detailed Descriptions:
This leather crumpling resistance tester is applied to test the crumpling resistance of leather, PU,rubber, cloth and other materials. Applied load on the specimen, the distance between the clamp and reciprocating distance can be adjusted, gradually narrow the fixture distance, make 2 pieces of sample cloth gently applied load after contact, through a certain frequency, regulation of the travel conditions, to and fro 1000 times.
Observation specimen surface crack, damage or cloth and coating separation phenomenon etc. to determine the quality of the products.
Specifications:
| Specimen dimension | 25 × 100 mm |
| test frequency | 120 Rpm/min |
| Load | 0.5 ~ 5kgf |
| Minimum graduation | 500g |
| Testing displacement | 0 ~ 50 mm adjustable |
| Counter | LCD digital display, 0-999.99 |
| Power supply | 220V |
| Dimension | 650×510×300mm(L×W×H) |
| Weight | about 55kg |
