Place of Origin:
China
Brand Name:
YUYANG
Certification:
CE
Model Number:
YYF020

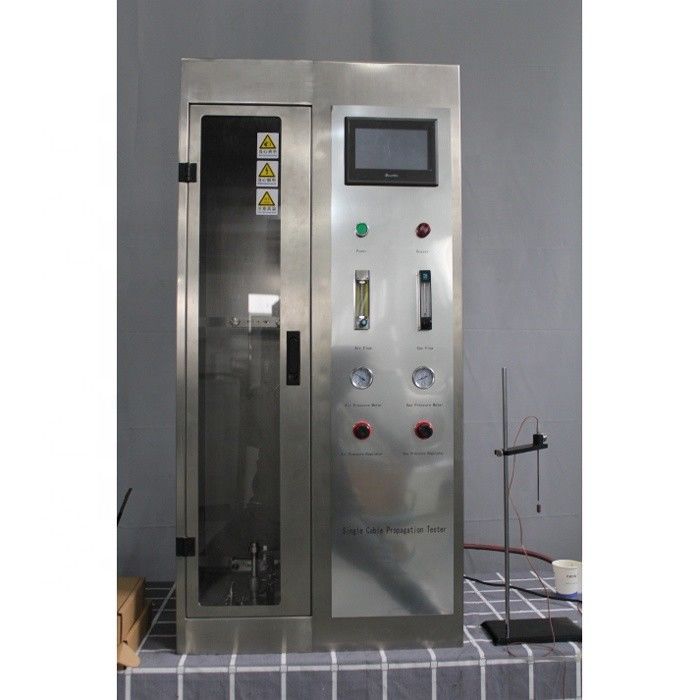

IEC 60332 Flame Propagation Tester, Single Cable Flame Propagation Testing Machine
Description:
Wire and Cable is second-largest industry. Single wire and cable vertical burning tester is the most widely used and low cost of cable fire performance test equipment; Single wire or cable burning tester meet the national standard GB /T18380.11-2008 / IEC60332-1-1: 2004 requirement. It is to test flame retardant insulation layer under fire conditions applicable for testing wire and cable in overheating, over-current and other non-normal state. It can be used for vertical or fiber optic wire and cable flame spread test,and test combustion conditions of Dettol matter under fire conditions.
Standard of IEC 60332-1 Flame Propagation Tester for Single Cable
IEC 60332-1-1,2,3
EN 50086-1-1994
GBT 18380.11,12-2008
Main features of IEC 60332-1 Flame Propagation Tester for Single Cable:
1, The touch screen intelligent control system; Operating interface in English and Chinese;
2, The system automatic ignition, automatic timing, automatic data storage;
3, The test section and control section is combined design in one box for installing and operation;
4, Stainless steel test box,and the internal cavity size is height 1200mm, width 300mm, depth of 450mm;
6, A pre-mixed burner, and inner diameter is 12 ± 0.5mm, length is 100mm. 1kW mixed type standard burner, which can be provides accurate test fire;
7, Flame time and duration of combustion can be adjusted from 0 to 99 minutes 99 seconds. Automatic control testing process;
8, Import needle valve precisely adjust the flame height, according to standards, the blue flame height is 50mm ~ 60mm, total height is 170mm ~ 190mm;
9, The gas flow rate is controlled by needle valve;
10, Equipped with a flame height caliper;
11, With a gas flow meter and pressure regulator; automatic ignition;
12, The burner angle can be adjust between 45 C and 0 C;
13, Flame check device for optional.
Specification of IEC 60332-1 Flame Propagation Tester for Single Cable
| Operating voltage | AC220 V ± 10V 50HZ |
| Ambient temperature | room temperature ~ 40 ℃ |
| Gas Pressure | 0.1MPa |
| Gas purity | Propane> 95%; compressed air |
| Timing Accuracy | 0.1s |
| Size | 600(W)×450(D)×1250(H)mm |
| Power | AC 220V, 50/60Hz, 3A |
| Weight | 60kg |
| Manual |
Provide |
