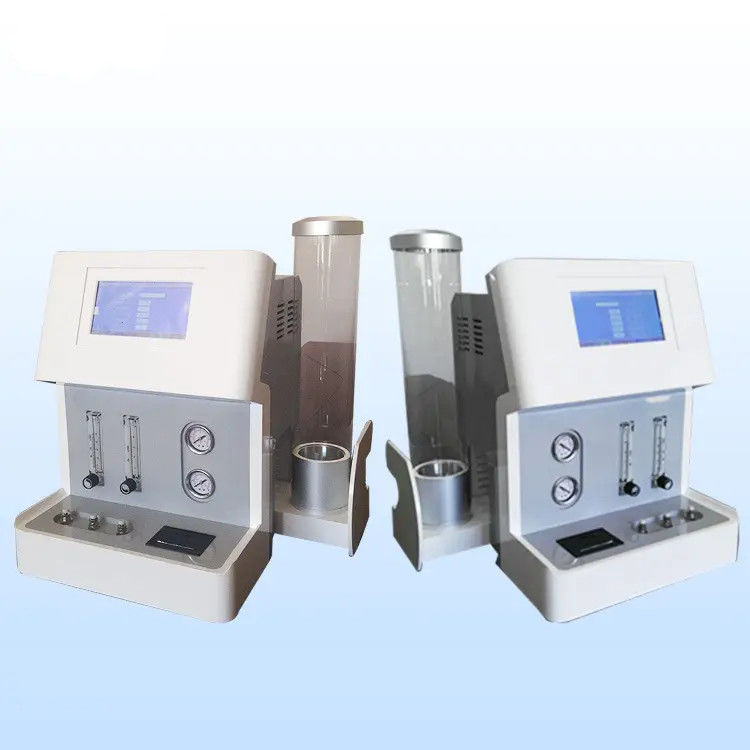

Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863

Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863

  • Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863
Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYF031
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $1000
Packaging Details: Wooden Box
Delivery Time: 5-30 Days
Payment Terms: T/T
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Limited Oxygen Index Apparatus Combustion Tube Inner Diameter: 100mm
High Combustion Tube: 450mm Test Environment: Temperature:10-35℃ ,Humidity:45[%]-75[%]
Input Pressure: 0.2-0.3Mpa Working Pressure: 0.05-0.15Mpa
High Light:

0.15Mpa Limiting Oxygen Index Tester

,

0.3Mpa Limiting Oxygen Index Tester

,

ASTM D2863 Oxygen Concentration Tester

Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863



Product summary:



The Oxygen Index Tester is used for measuring the oxygen concentration (volume percent) required for the polymer combusting process. The apparatus is simply designed and very simple to use: it makes measurements with an (imported) transducer and shows the result digitally without the need to calculate it with a formula. This machine

it can be used to identify combustion characteristics, it can be used to study polymers.

It can also be used to study the combustion properties of polymers and as a research tool to better understand the combustion process of polymers.

Translated with www.DeepL.com/Translator (free version)


Applicable industry:



Oxygen Index Tester applies to the burning of plastics, rubber, foam and other materials performance test, its results are accurate, the reproducibility is good. Research, test equipment essential for the production of flame retardant material.



Meet standards:



Oxygen Index Tester meet according to the national standard GB2406 stipulated conditions of manufacture of an instrument.



Technical parameters:



Model

Limiting Oxygen Index Tester

Combustion tube inner diameter

100mm

High combustion tube

450mm

Flowmeter accuracy

2.5 grade

Pressure gauge accuracy

2.5 grade

Gas source

GB3863 prescribed oxygen,GB3864 prescribed nitrogen

Test environment

Temperature:10—35℃ , Humidity:45%—75%

Input pressure

0.2—0.3Mpa

Working pressure

0.05—0.15Mpa

Sample type

Self-supporting material and non-self-supporting material

Display

Digital



Defined:



Tests for oxygen index limitation under specified conditions, materials at the minimum oxygen concentration required for combustion of a mixed gas stream consisting of both oxygen and nitrogen. To represent oxygen

the percentage of the capacity occupied by the value. A high oxygen index means that the material is non-combustible,

A low oxygen index means that the Material is readily flammable, and an oxygen index <22 is generally accepted as a

flammable if the oxygen index is between 22 and 27, flammable if the oxygen index is >27.



Our Company:



Dongguan YUYANG Instrument Co, Ltd located in Wanjiang District (Dongguan City, Guangdong Province, China), a famous history city with a thriving industry and convenient transit. We are a high-tech enterprises specializing in the development and production of the fire testing equipment, fire testing equipment for building materials, fire testing equipment for cables and wires, environmental testing chamber, textile testing equipment, toy testing equipment, etc. Decades of research and development consolidate YUYANG's leadership in the field and establish a key role in research and development for high quality and high price test equipment.

YUYANG test equipment is widely used in various fields: scientific institutions, universities, testing institutions, auto components, electronics, electricity, lithium batteries, LED, photoelectricity, mobile telephony, plastics and rubber, displays, telecommunications, chemical industry, aerospace, building materials and products, cables and wires, toys, furniture, textiles and industrial products, etc.

All YUYANG testing devices are designed according to international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, etc. DONGGUAN YUYANG INSTRUMENT CO.,LTD would like to establish cooperation with customers all over the world.

If you are interested in any of our items or would you like to discuss a custom order. Please feel welcome to contact us. We hope to have a successful cooperation with new customers around the world in the near future.


Digital Limiting Oxygen Index Tester Minimum Concentration Measurement ASTM D2863 0
