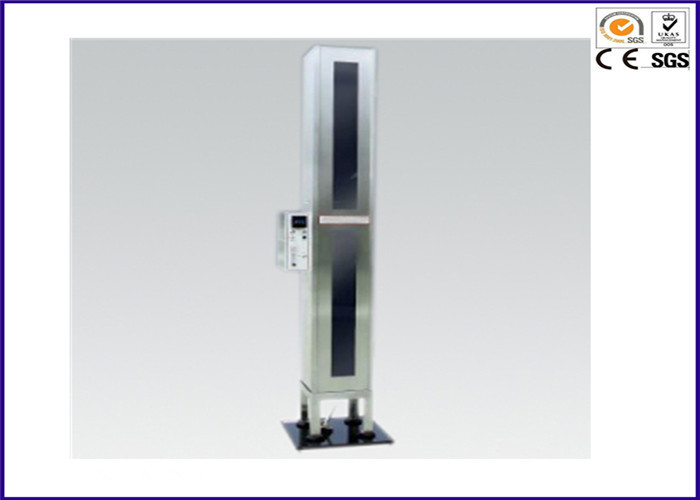

NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test

NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test

  • NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test
  • NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test
NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: NFPA 701-2004 Methods 2
Model Number: YY802
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Product Name: Textile Testing Equipment
Usage: Flame Propagation Test Flame Height: 280±12mm
Timing Range: 0~99s Weight: Approx. 110kg
Power Supply: AC220V 50Hz, 110W Burner Size: Φ9.5mm×(100±10)mm
High Light:

textile testing machines

,

fabric stiffness tester





NFPA-701 Textile and Film Testing Equipment 280mm Flame Propagation Tester





Application:



It is used to assess the propagation of flame beyond the area exposed the ignition source. It is applicable to vinyl-coated fabric blackout linings and fabrics including multilayered fabrics, films and plastic blinds, with or without reinforcement or backing, with area density greater than 700g/m2.





Standard:



NFPA 701-2004 Methods 2





Specification:



1. Test cabinet size: 305×305×2420mm (L×W×H)

2. Burner size: Φ9.5mm×(100±10)mm

3. Flowmeter range: 0~66ml/min

4. Bunsen burner flame angle: 25°

5. Flame height: 280±12mm

6. Timing range: 0~99s

7. Power supply: AC220V 50Hz, 110W

8. Weight: Approx. 110kg



NFPA-701 Film / Textile Testing Equipment 280mm Flame Propagation Test 0
