DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | NFPA 701-2004 Test Method 1 |
| Model Number: | YY204 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5 sets per month |
| Material: | Stainless Steel | Product Name: | Vertical Flammability Tester |
|---|---|---|---|
| Usage: | NFPA 701 Test Method 1 Tester | Timer Accuracy: | 0.1s |
| Weight: | 80 Kg | Power Supply: | 220V 50HZ |
| High Light: | vertical flammability chamber,combustion testing equipment |
||

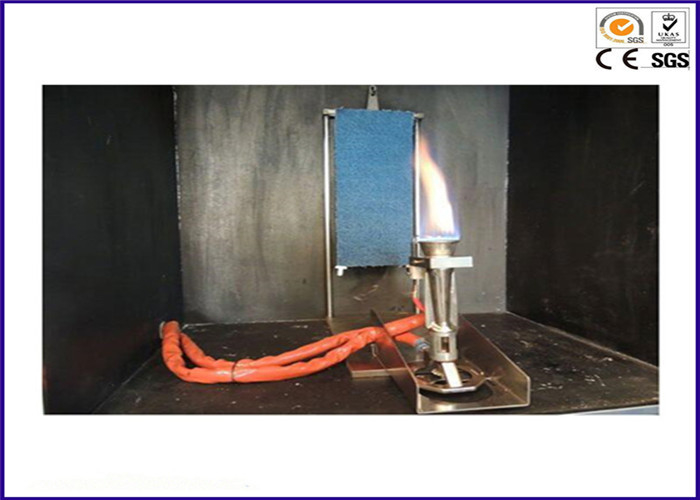

NFPA 701 Test Method 1 Vertical Flammability Tester for Single-layer or Multi-layer Fabrics
Application:
NFPA 701-2004 Flammability Tester, to determine the ignition resistance properties of draperies and other hanging fabrics according to test method NFPA 701#1, and it is suitable for single-layer or multi-layer fabrics, but not suitable for fabrics with density larger than 700g/m2 (21oz/yd2).
Standard:
NFPA 701-2004 Test Method 1
Specifications:
1. Open-type burning chamber structure;
2. Chamber body in calcium silicate board, and wrapped by stainless steel external;
3. Standard Meker laboratory burner;
4. Record burning time automatically;
5. Auto-ignition mode to avoid operative error;
6. Timer accuracy up to 0.1second;

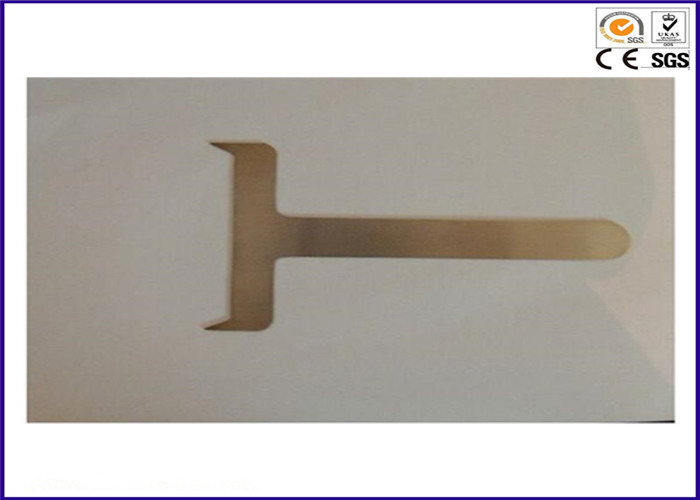

7. Provide with a standard specimen holder
8. Power 220 /110 V 50/60 Hz 2 A
9. Weight 80 Kg
10. Dimensions 900 x 510 x 720 mm(LxWxH)
