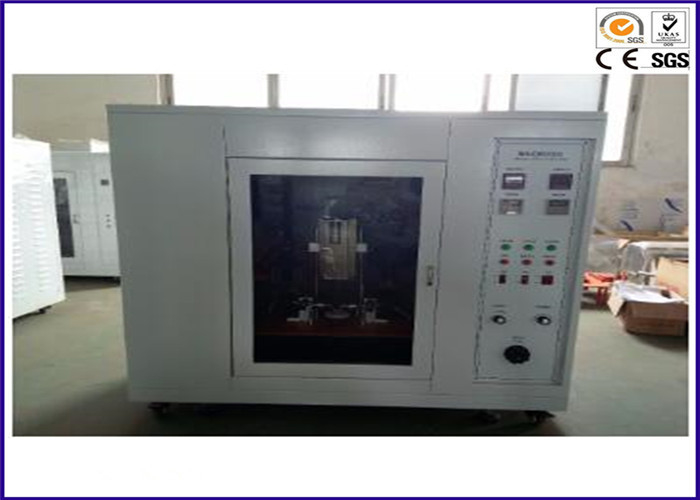

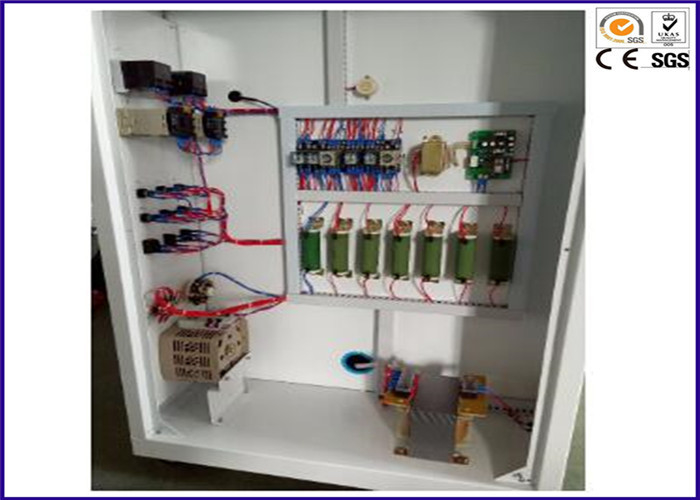

30 - 40mm Height Drop Environmental Test Chamber 100V - 600V High Voltage Tracking Tester

30-40mm Height Drop Environmental Test Chamber 100V-600V High Voltage Tracking Tester

Description:

High Voltage tracking tester suit for electronic products, household appliances and other materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials resistance to tracking and erosion levels.

Standards:

IEC 60587-1984, GB/T6553-2003,

ASTM D 2303 Standard Test Methods for Liquid-Contaminant, Inclined-Plane Tracking and Erosion of Insulating Materials

IEC 60587 : Test methods for evaluating resistance to tracking and erosion of electrical insulating materials used under severe ambient conditions

Specifications:

1. The electrode: 0.5mm thick material: stainless steel;

2. The upper and lower electrode distance: 50.0mm ± 0.1;

3. The test voltage: 100V-6000V stepless adjustable;

4. The regulator: output: 0 ~ 250V adjustable, capacity 5KVA;

5. Test transformer capacity: 5KVA, the highest output voltage of AC6000V(or DC6000V optional);

6. High-precision voltage regulator output power: AC220V 6000W,accuracy of ± 1%;

7. The loop current is 60mA, cut off the output voltage;

8. Test time: 6 hours;

9. Dropping accuracy: 0.5%;

10. Voltage stability: + 1%;

11. The mark to judge:

According to standard GB/T6553-2003/4.1.2, the voltage applied to the specimen (2.5k V, 3 5K V and 4.5K V), and with a certain velocity dropsbelow 60mA in the current contamination, persistent 6H but flow is through;

12. Dropping device:

The Leif precision peristaltic pump, flow rate range from 0.00185 to 20 ml / min, the working speed of 0.1 ~ 50 rpm, flow accuracy error: < 0.5%;

13. The output voltage: AC / DC (switchable)

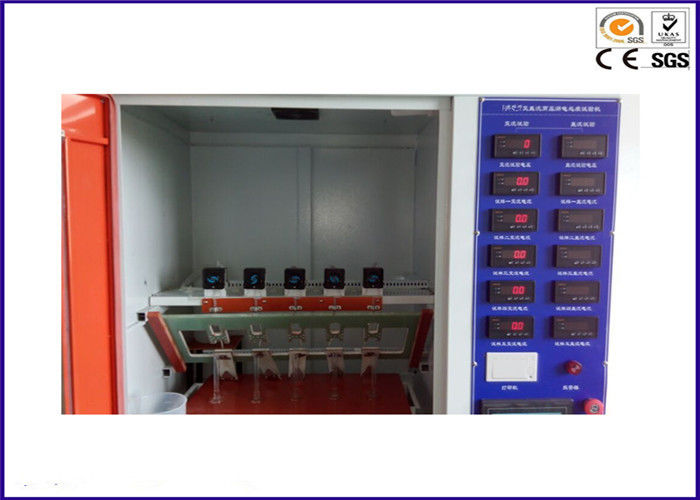

14. The experimental group: five groups

15. Control device: using Siemens PLC+ Taiwan wein view touch screen control, control precision,

simple operation, design humanization, the end of the test automatically generate reports, panel thermal

printer can print test results timely;

16. Studio size: 900L*650W*950H (mm); the volume is 0.56m3.

17. The case: the SUS304 stainless steel (wire drawing);

18. Sewage tank made of 316 stainless steel, with sealing device.

19. The instrument dimensions: 1300L*700W*1800H (mm)

20. Weight: 200KG

Feature:

1. Over-current protection : when the electric current value flowing through the specimen is more than 60mA

2. Selection of series resistance : 1 kΩ, 10 kΩ, 22 kΩ, 33 kΩ 1% Grade 200 W

3. Variable voltage settings : 0 ~ 6 kV

4. 1.5% accuracy about entered value with a voltmeter

5. Using timer, a simple TEST hour setting function by hour / minute / second

6. Notification function : In 6 hours test, if the specimen is bad, the buzzer and flashing light starts working.

7. Syringe pump can create a constant flow conditions (flow rate memory function)

8. Electrical conduction meter can measure pollutants

- Resistivity (0.1Ωm ~ 10 kΩ m) and temperature(0 ~ 100°C) measurements

9. Digital depth gauge : ± 0.01m accuracy

10. Insulated TEST BOX which is safe in high-voltage test
