DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
|Place of Origin:||China|
|Certification:||CE, UL ,ISO|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Plywood Case|
|Delivery Time:||10 work days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||5 sets per month|
|Product Name:||Environmental Test Chamber||Usage:||High-forced Volume Thermal Convection|
|Temperature Range :||RT+5ºC~1300ºC||Accuracy :||±3.0ºC %|
|Material:||Stainless Steel||Power Supply:||AC220V 50HZ|
thermal shock test chamber,
salt spray test chamber

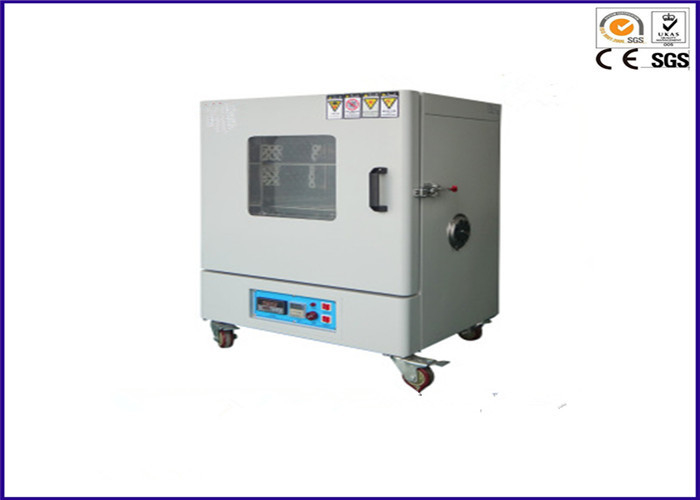

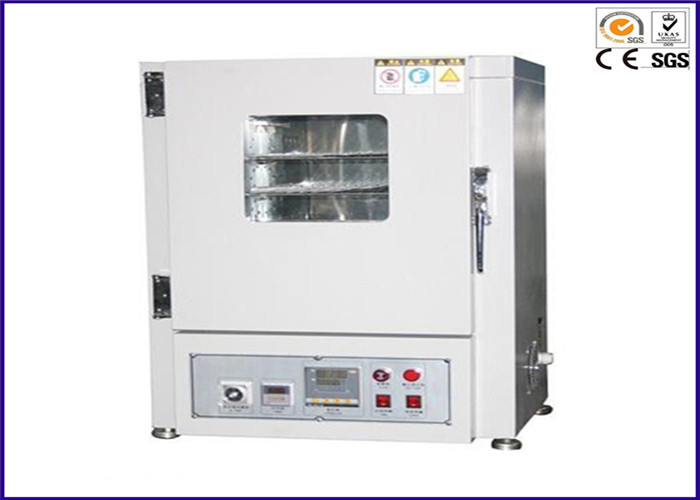

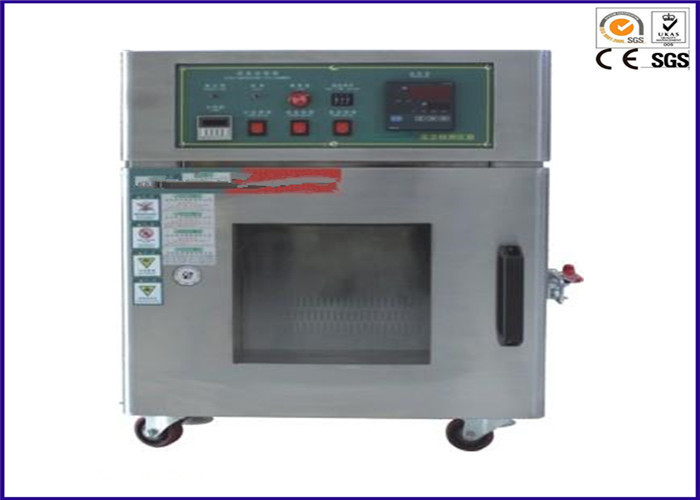

Laboratory High-forced Volume Thermal Convection Ovens Test Chamber
Laboratory ovens are ovens for high-forced volume thermal convection applications. These ovens generally provide uniform temperatures throughout. Process applications for laboratory ovens can be for annealing, die-bond curing, drying, Polyimide baking, sterilizing, and other industrial laboratory functions. Typical sizes are from one cubic foot to 0.9 cubic metres (32 cu ft) with temperatures that can be over 340 degrees Celsius.
Laboratory ovens can be used in numerous different applications and configurations, including clean rooms, forced convection, horizontal airflow, inert atmosphere, natural convection, and pass through.
Some of the types of industries that typically use these laboratory ovens are the healthcare industry, technology industry, and transportation industry. Civil engineering laboratories use ovens for drying asphalt, soil, rock, or concrete samples.
1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Electric hot air industrial circulation oven Use new high temperature resistant long shaft motor
3. Electric hot air industrial circulation oven use Turbine fan.
4. Silicone forced tight
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Electric hot air industrial circulation oven Heating system: PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.
PID microcomputer automatic conclusion,PS/SV simultaneous display,be able to set the temperature freely as needed in the range of allowable temperature.
CA(K) TYPE output for 12 V
Current controller is SSR contactless Relay, keep high stability of the current.
Heat material for cellular stainless steel heat pipe, no pollution and hair long service life.
Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then in-halt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.
|Internal Dimension WxHxD (mm)||150x150x150||200x200x200||300x300x300||400x400x400|
|External Dimension WxHxD (mm)||450x700x500||500x750x500||650x900x600||650x900x700|
|Material||Inner box is high temperature resistant ceramic plate; out shell is 1.2t steel plate paint power coating|
|Control Method||Micro computer PID+ SSR+ Timer|
Contact Person: Yilia Yi
