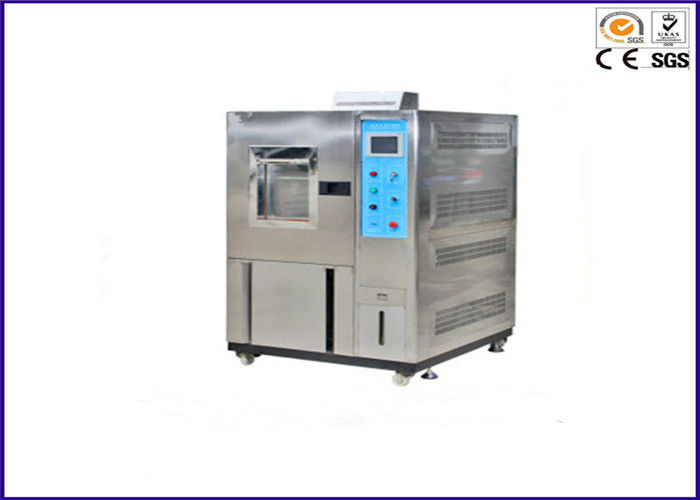

TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials

TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials

  • TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials
  • TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials
  • TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials
  • TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials
TEMI 880 Programmable Temperature And Humidity Test Chamber For Building Materials
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB 10592, GB 10586, GB/T 2423.1、2、3、4
Model Number: YY1006
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Environmental Test Chamber Usage: Programmable Temperature And Humidity
Temperature Range: 0 ℃ ~ +150 ℃ Humidity Range: 10% ~ 99.9% R.H
Material: Stainless Steel Power Supply: AC 380V 50/60Hz
High Light:

sand and dust test chamber


salt spray test chamber

Widely TEMI880 Programmable Temperature and Humidity Test Chamber





This temperature and humidity test chamber is widely used in testing the various materials of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance.

suitable for quality control of electronics, electrical appliances, instruments, food, vehicles, metal, chemical, building materials, aerospace, medical etc.

Provide the simulation experiment of natural conditions by setting test chamber temperature and humidity..In order to test the reliability of the products in this environment.



Testing Standard:


GB/T 2423.1,2,3,4(Electrical and electronic products basic environmental test procedure test)

A: Low temperature test method B: Hight temperature test method,Test Ca:Cosntant humidity and heat test method.Db: Alternating humidity and heat test method

GB 10592(High Low Temperature Test Chamber technical conditions)

GB 10586 (humid heat test technical conditions)





1. Import LED touch-screen controller,( Korea TEMI880), User-friendly, operation easy and simple.

2. Style design is perfect,arc type and surface spray coating,high texture appearance,use plane handle,easy to operate,safe and reliable.

3. Huge observation window,wide and bright visio.Use three layer vacuum coating window and Philips energy-saving fluorescent lamp, unnecessary Windshield wiper mist,keep Clear observation effect,observe sample condition in any time.

4. Water and electricity share to ensure safety, Humidifying system channel separate from power,controller and circuit board,to avoide leaking affect circuit,Improve safety.

5. Frozen and control system advanced and reliable,imported France Compressor, eco-friendly refrigerant



Technical parameters:


Item: TNH-80 TNH-150 TNH-225 TNH-408 TNH-800 TNH-1000

Inside dimensions(W*H*D)CM

40*50*40 50*60*50 50*75*60 65*85*80 80*100*100 100*100*100

Carton size(W*H*D)CM

85*140*95/95*150*115/95*165*115/105*175*135/145*190*135/ 155*195*150


Temp Range








I. Performance: refers to the air-cooled at room temperature 20 ℃, no load

1, temperature range: 0 ~ 150

2, humidity range: 20 ~ 98% RH

3, the control stability:

1) Temperature: ± 0.5 ℃

2) Humidity: ± 2.5% RH

4, the distribution uniformity:

1) Temperature: ± 2.0 ℃

2) Humidity: ± 3.0% RH

5, the heating time: from -20 ℃ to 100 ℃ about 45 minutes

6, cooling time: from 20 ℃ -20 ℃ about 55 minutes

7, power:AC 380V 50/60Hz



II. The structure and material

1, the inner box dimension: (W*H*D)500 × 600 × 500 (mm) --150 Liters

2, outer box size: (W*H*D)1020 ×1650 ×1030 (mm)

3, inner box material: SUS # 304 mirror surface stainless steel

4, outer box material: SUS # 304 stainless steel plate of sand grain style

5, the insulation layer: high-density rigid PU foam and the 24K glass wool

6, the machine foot stool: bottom equip with 4 drive wheels, 4 level feet.

7, door:

1) single door, left hand open the door, the handle on the left,

2) the window 280 × 300 × 35mm multiwall high definition electrical heating demist toughened grass

3) The inner box equipped with a imported fluorescent light of 11W power

8, draught fan: 60W lenghten axis motor with two sets of multi-wings type rotor

9, heater: fin-type radiating pipe-shaped stainless steel heater

10, the furnace accessories: 2 sets of adjustable-layer with 2 stainless steel shelving

11, the test hole: the ø50mm hole on the left of the machine body with a stainless steel lid

12, the control panel

1) Lighting type pressure buckle switch 2 pcs

2) Temperature and humidity controller 1 pcs

3) Power Switch 1

13, water tank

1) one stainless steel water tank of 24L built in front

2) a group of auto-supply pump, automatic water supply from the water tank for humidification and wet bulb

3) water shortage alarm device 1 group



III. the refrigeration system


1) original Tecumseh compressor imported from France,model: CAJ2464-J

2) environment-friendly refrigerants

3) fin-type condenser with cooling fan

4) multi-stage evaporator that it can automatically adjust the load capacity

5) Other Accessories: improted desiccant, oil separators, pressure protection switch and frozen refrigerant flow visual window

6) The machine adopts two section refrigeration



V. the control system


1, control mode: balanced thermostat humidity control system (BTHC), the PID control SSR, so that the heat and humidification is equal to the amount of heat and moisture loss, so the machine has long-term stability.

2, temperature and humidity controller: "TEMI-850" English interface, the screen displays data and information interactively temperature and humidity control,and single-point and programmable contro, adjustable screen backlighting.

1) Resolution: 0.01 ℃, 0.01% R.H

2) Temperature range: 0 ℃ ~ +150 ℃

3) Humidity range: 10% ~ 99.9% R.H

4) Program segment: 10 groups with 100 program memory segment

5) Each segment can also set the temperature, humidity and time, re-run 999 times

6) The program runs with standby, jump function, and functions to memory

7) the machine has the preseting value of time off and program stop functions

8) Start and stop with the appointment and failure prompts

9) thermoscope: PT-100 2 pcs

10) The main components of the system is equipped with a safety detector interface unit, when the abnormal failure occurs, fault immediately from the screen and power supply cut off automatically.

11) the machine has a cumulative run time display, available for machine time and run-time for your reference.

12) the program runs as SV curve window



VI. security protection devices:

1. Zero crossing thyristor power controller SSR 2 groups

2. anti-air burning switch

3. 1 set of water protection switch

4. High-pressure compressor protection switch

5. Compressor overload protection switch

6. Compressor over-current protection switch

7. line protection wire and sheath-type terminal

8. 16A 3P overload protection device 1 pcs

9. 1P6A overload device 1 pcs

10. 1 set of water shortage protection device



VII. operation environment: 5 ~ 30 ℃



Plywood package size:L 117cm x W 117cm x H 187cm

Gross Weight: approx 300kg
