| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE, UL, ISO |
| Model Number: | Yjh49 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
| Product Name: | Industrial Drying Ovens, Custom Industrial Oven | Heating System: | PID+S.S.R. |
|---|---|---|---|
| Inner Structure: | Stainless Steel Shelves Or Trucks | Controller: | PID Thermostat Or PLC Controller |
| Inner Material: | #SUS 304 Stainless Ste | Inner Chamber Size: | All Size Can Customize |
| Heating Speed:: | RT~100C, 10min | Temperature Range:: | Max 600C |

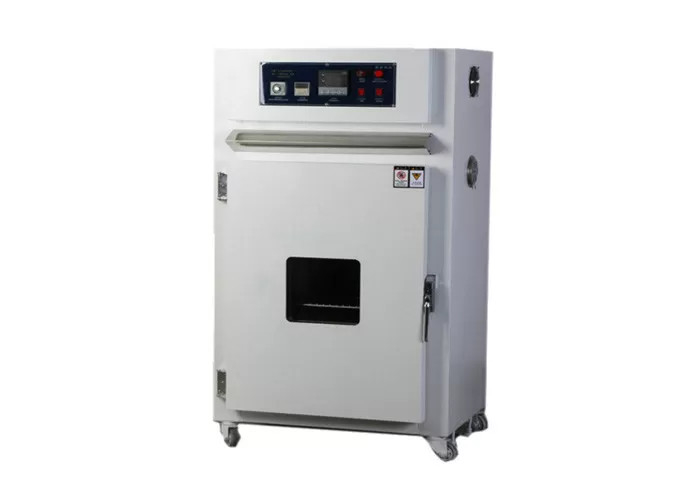

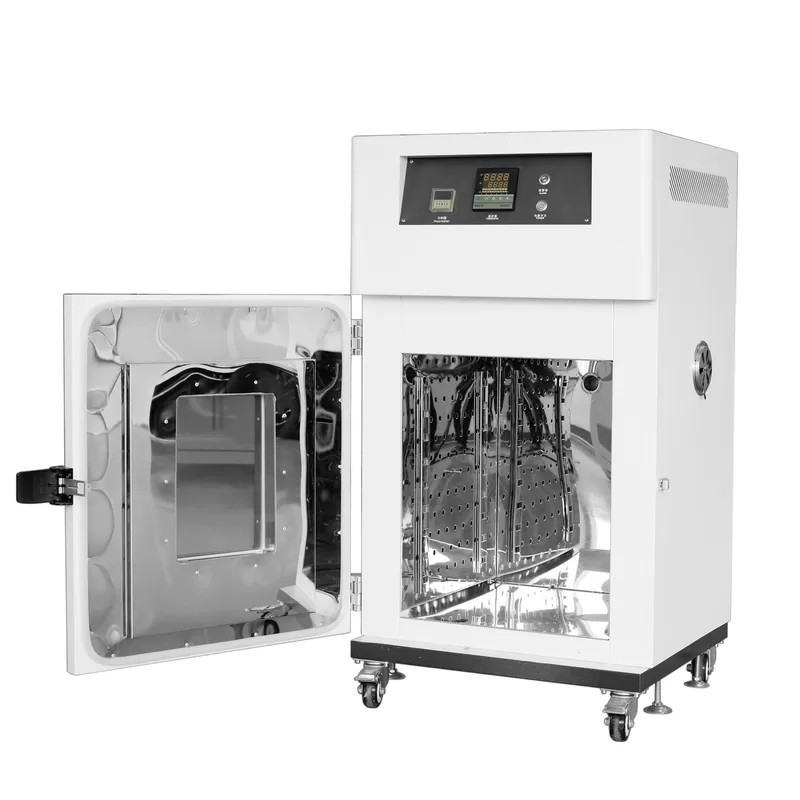

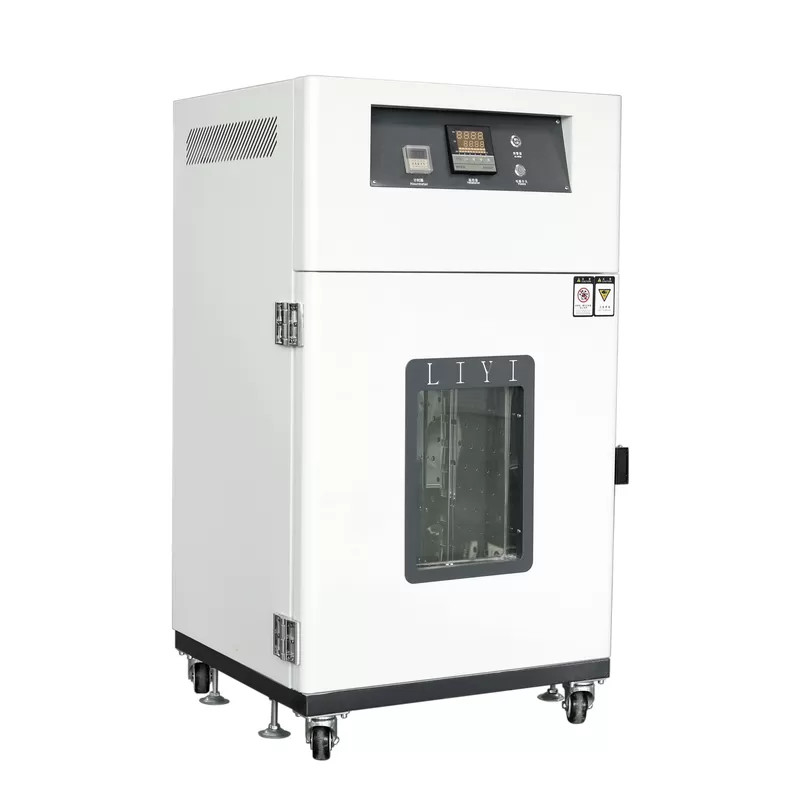

Stainless Steel Customize Built Free-Standing Ovens Electric Aluminium Coating
Product Description
Custom Built Electric Free-Standing Ovens – We design and manufacture custom built electric bench top or free-standing ovens for a wide variety of applications:
| Inner Size (W*H*D) | 90×120×60 |
| Accuracy | controlling accuracy: ±0.5℃ |
| Temperature distribution: | ±1.0℃%(no-load) |
| Temperature range | Room temperature～300℃/400℃ |
| Rate of work: | About 10 KW |
| Power | AC220V 50Hz |
Characteristics:
1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Stainless Steel Customize Industrial Oven Use new high temperature resistant long shaft motor
3. Stainless Steel Customize Industrial Oven use Turbine fan.
4. Silicone forced tight
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Stainless Steel Customize Industrial Oven Heating system: PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.
Specifications: All requirements can customize
|
Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm)
|
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| YY-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C
|
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| YY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| YY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| YY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| YY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| YY-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| YY-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| YY-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
