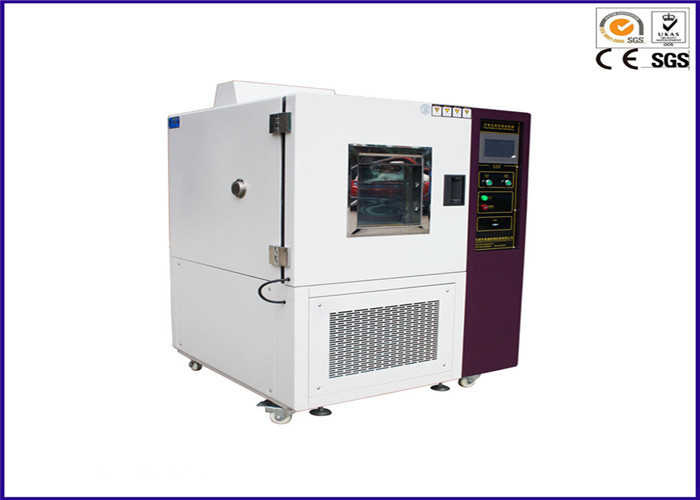

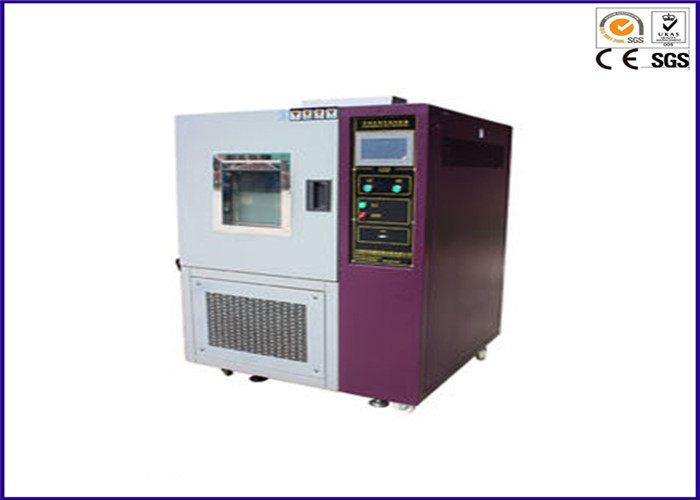

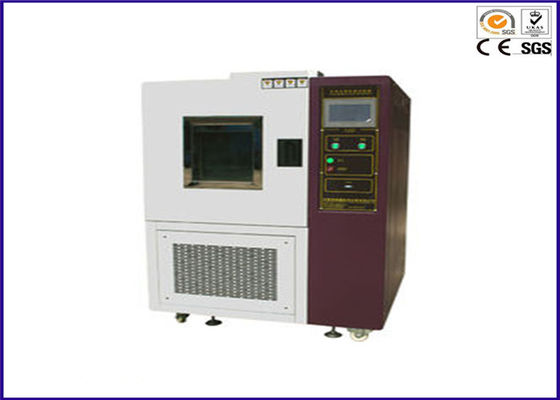

Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled

Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled

  • Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled
  • Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled
  • Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled
  • Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled
Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9
Model Number: YY1014
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Environmental Test Chamber Usage: High Low Temperature Change Chamber
Material: Stainless Steel Fluctuation: ±0.5°C ±2.5%RH
Condensing Way: Air-cooled Or Water-cooled Power Supply: AC380V, 50/60HZ
High Light:

sand and dust test chamber

,

thermal shock test chamber





Programmable High Low Temperature Change Chamber Environmental Test Chamber





Description:



Environment test chamber of Programmable Constant Temperature &Humidity Test Chamber can simulate different environment condition. It is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operation time.





Features:



1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).
6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position





Technical Parameters:



Mode YY1014-80L YY1014-150L YY1014-225L YY1014-408L YY1014-800L YY1014-1000L
Inner Size
W×H×D(cm)
40×50×40 50×60×50 60×85×80 60×85×80 100×100×80 100×100×100
Outside Size
W×H×D(cm)
92×140×90 105×150×110 105×165×120 115×175×140 160×190×160 160x190x180
Volume (L) 80 L 150L 225L 408L 800L 1000L
Temp and Hum Range A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
RH20%-98%
Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller analytical accuracy ±0.3°C ±2.5%RH
Material Inner Wall SUS #304 Stainless steel
Outer Skin #SUS 304 Stainless steel
Heat Preservation High temperature resistant,
High chlorine acid b vinegar foam insulation materials
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerater French Tecumseh
Refrigerants R4O4A USA dupont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply
Standard Accessories 1 Observe window(double-deck cavity toughened glass),
1 50mm test hole in the left,
1 PL inner chamber lamp,
2 clapboards,
1 bag of wet and dry bulb,
3 fuses,
1 power line.
Safety device Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system





Standards:


1. IEC60068-2-1.1990 low-temperature testing method
2. IEC60068-2-2.1974 high-temperature testing method
3. GJB150.3 high-temperature test
4. GJB150.4 low-temperature test
5. GJB150.9 humidity test



Programmable High Low Temperature Test Chamber With Air Cooled / Water Cooled 0
