TEMI 880 Temperature And Humidity Controlled Chambers With LCD Touch Screen

TEMI 880 Temperature And Humidity Controlled Chambers With LCD Touch Screen

sand and dust test chamber

thermal shock test chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE, UL, ISO, IEC

Model Number:

YY1026

Contact Us
Request A Quote
Product Details
Product Name:
Environmental Test Chamber
Usage:
Temperature And Humidity Test Chamber
Material:
Stainless Steel
Temp Analytic Accuracy:
0.1ºC/±2.0ºC
Temperature Fluctuation:
±0.5ºC
Power Supply:
AC220V, 50/60HZ
Humidity Analytic Accuracy:
±0.1%;±2.5%
Heat Up:
4.0°C/min
Cooling:
1.0°C/min
Controller:
TEMI South Korea
Highlight:

sand and dust test chamber

,

thermal shock test chamber

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Plywood Case
Delivery Time
10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
3 sets per month
Product Description

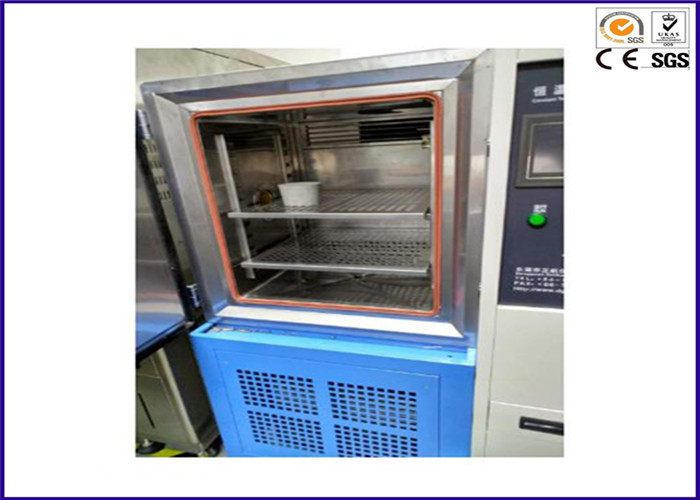

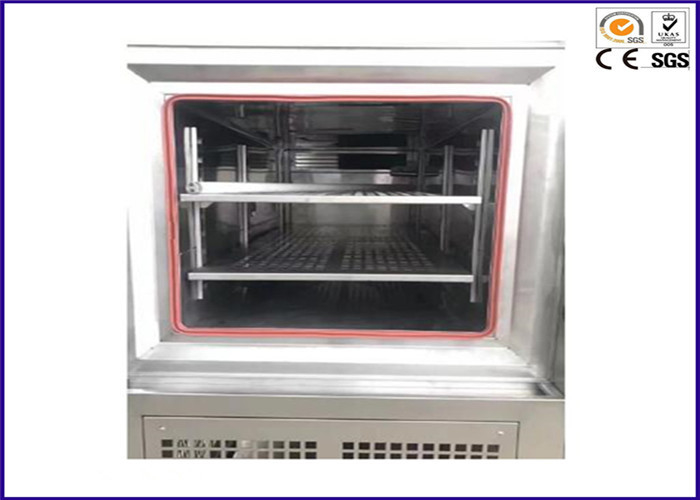

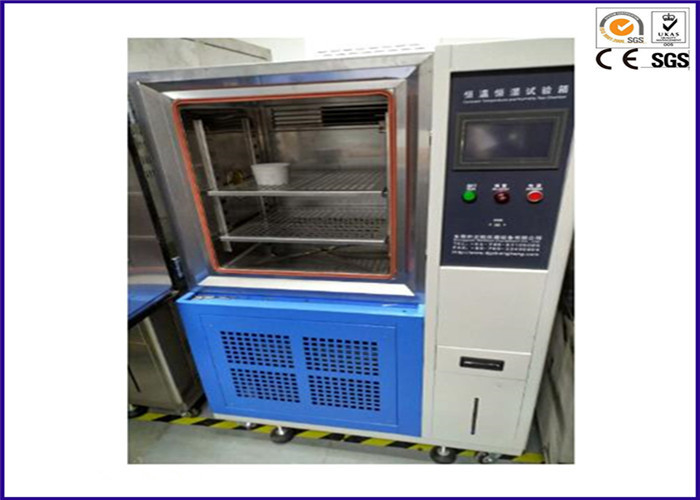

 LCD Touch Screen TEMI 880 Controller Environmental Humidity and Temperature Test Chamber


Product Description:

Constant Temperature and Humidity test chamber
1. LCD touch screen
2. Inner material:SUS#304
3. TEMI 880 controller
Constant Temperature and Humidity test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Specifications:


Model YY1026-80
(A~F)
YY1026-150
(A~F)
YY1026-225
(A~F)
YY1026-408
(A~F)
YY1026-800
(A~F)
YY1026-1000
(A~F)
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
Humidity range 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/
uniformity
0.1ºC/±2.0ºC
Temperature Fluctuation ±0.5ºC
Humidity analytic accuracy/ Humidity control accuracy ±0.1%;±2.5%
Heat; cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materials Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system Air cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)
Protection devices Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system
Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France "Tecumseh" brand
Controller TEMI South Korea
Power AC220V 50/60Hz & 1 , AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580
