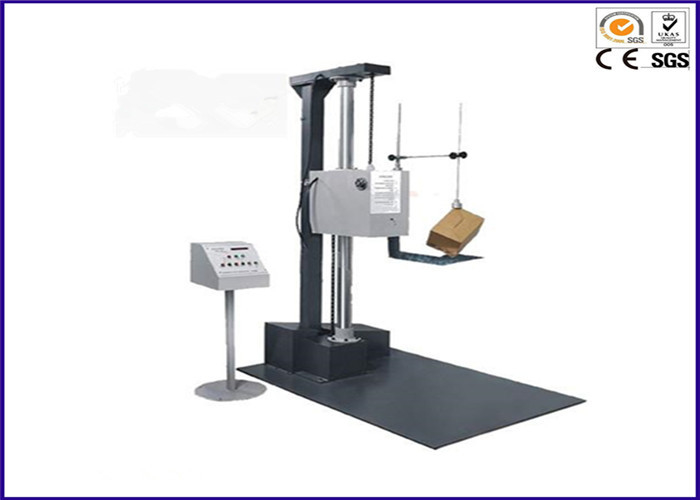

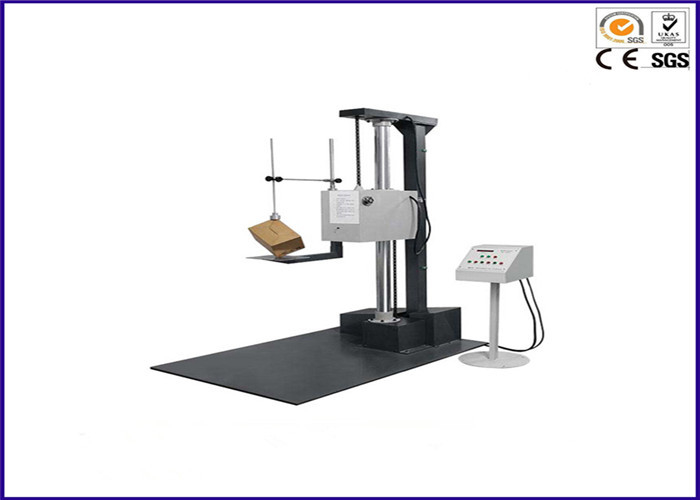

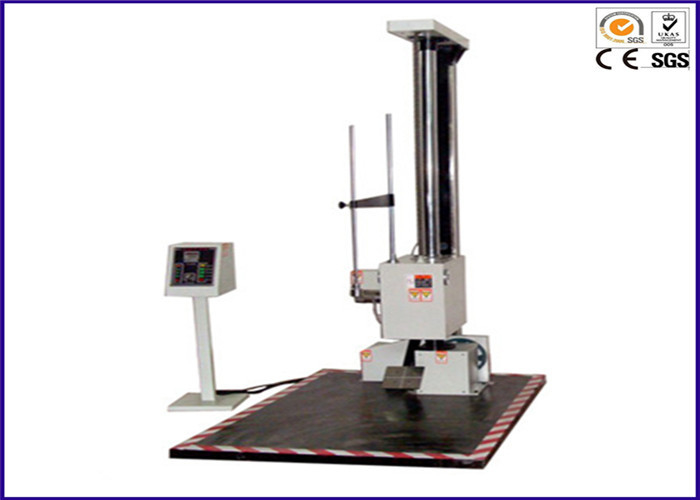

Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine

Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine

  • Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine
  • Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine
  • Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine
  • Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine
Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO 22488
Model Number: YY1403
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Package Testing Equipment Usage: Carton Drop Testing Machine
Drop Height: 300 - 1500mm Max Weight Of Specimen: 65 Kg
Test Space: 800×800×800mm Impact Board Dimensions: 1400×1200mm
Corbel Dimensions: 700×350mm Overall Dimensions: 1400×1200×2200mm
Net Weight: 500kg Power: 380V, 50HZ, 5A
High Light:

packaging testing instruments

,

compression test equipment

Single Wing Carton Drop Tester Package Carton Box Drop Impact Testing Equipment





Description:



This tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.





Specifications:



Drop Height 300 - 1500mm
Max Weight of Specimen 65 kg
Test space 800×800×800
Impact board dimensions(mm) 1400×1200
Corbel dimensions(mm) 700×350
Motor Highten 1/3P,manual wide adjustment
Overall dimensions(mm) 1400×1200×2200
Net weight(kg) 500
Power 380V 50HZ 5A
Meet the standard ISO22488-1972(E)
Manner of execution Motor-driven drop, hand reset





Theory:



This machine simulates the freedom drop movement from different heights.





Standard:



Design standards:GB4757.5-84 JISZ0202-87 ISO2248-1972(E)





Feature:


1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.





Single Wing Carton Drop Test Equipment , Package Carton Box Drop Impact Testing Machine 0
