Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T4857.5, ISO 2248,JIS Z0202,ASTM D5276
Model Number:
YY1404

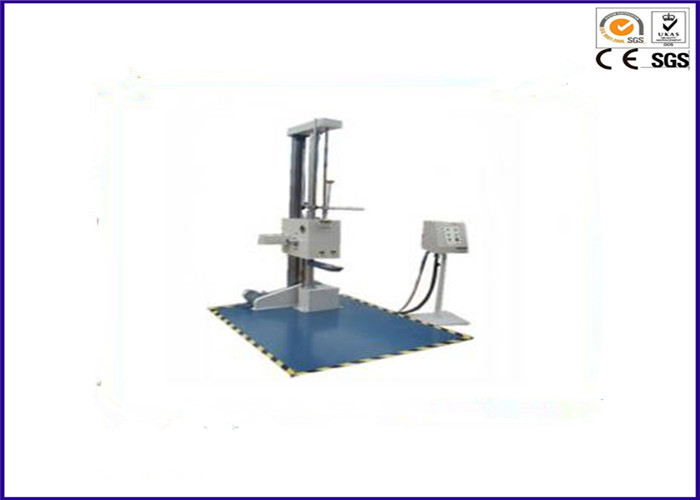

Simulate Transportation Free Drop ISTA Packaging Testing Equipment
Products introduction:
Simulate Transportation Free Drop ISTA Packaging Testing Equipment is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
Main parameters:
| Dropping height | 300mm-1500mm( can be adjustable) |
| Display method: | digital display |
| Maximum weight of the package | 60kg |
| Maximum size of the package | (L×W×H) 1000×700×1000mm |
| Size of the dropping panel | (L×W)1700×1400mm |
| Size of the swing | 200×150×8mm |
| Dropping deviation | ±10mm |
| Deviation of dropping horizon | less than 1° |
| Outside size: (L×W×H) | 1700×1200×2500mm |
| Chamber size: (L×W×H) | 350×350×1100mm |
| Weight | 550kg |
| Power | AC single phase, 220V |
| Test standards | GB/T4857.5, ISO 2248,JIS Z0202,ASTM D5276 |
| Accessories | electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece |
Features:
1. Outside material: advanced paint coat

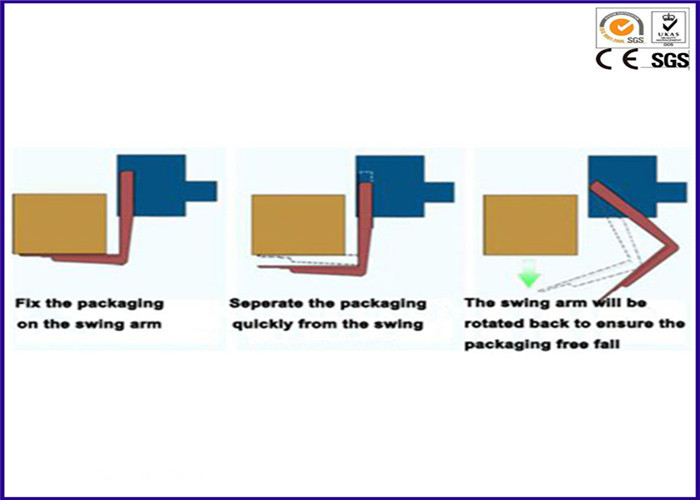

2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
