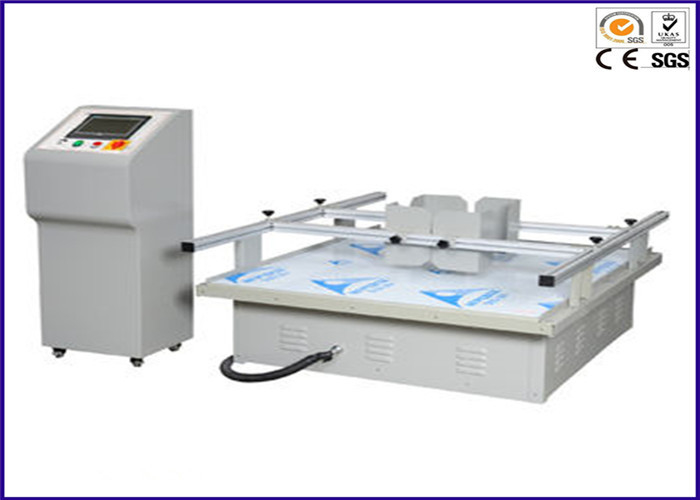

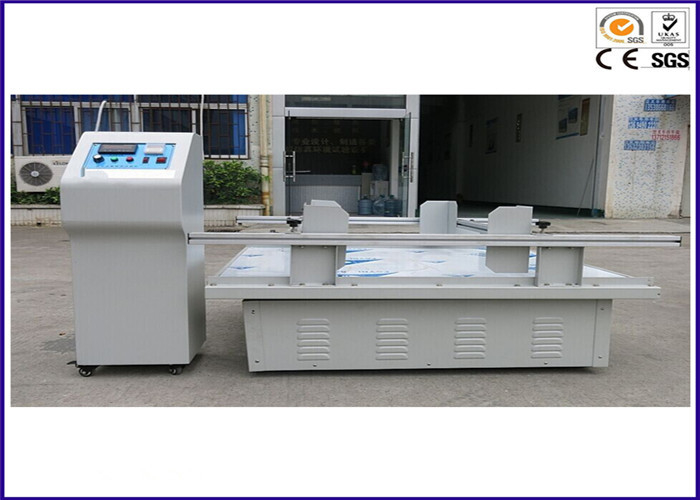

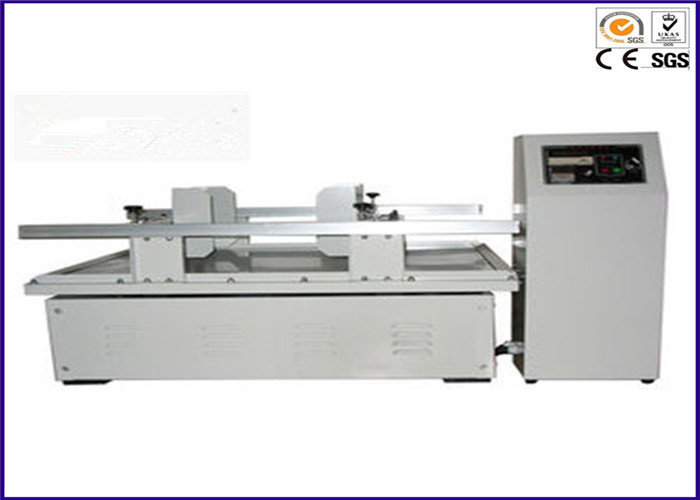

Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator

Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator

  • Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator
  • Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator
  • Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator
  • Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator
Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: EN71 ISTA-1A/1B ANSI UL ASTM
Model Number: YY1406
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Package Testing Equipment Usage: Transport Simulation Vibration Test
Rotating Speed: 150 ~ 300 RPM Amplitude: 25.4mm(1inch)
Time Setting: 0~999hours Mode Of Vibration: Reciprocating Type
High Light:

packaging testing instruments

,

vibration testing equipment



ISTA-1A/1B Package Transport Simulation Vibration Testing Equipment





Description:



Transportation Simulators are used to determine the ability of packages and products to withstand shock and vibration encountered during the following course of typical handling and transportation: In-plant handling and warehousing, shipping, distribution warehousing, and final shipping





Standard:



EN71 ISTA-1A/1B ANSI UL ASTM international shipping standards.





Features:



1. Good cost performance.

2. Digital display for vibration frequency

3. Low noise: with synchronous noiseless belt transmission.

4. Cycling vibration system: in compliance with USA & EURO shipping standards.

5. To use slideway for testing sample loading and unloading: easy and safe operation.

6. Heavy slot steel with vibration damping rubber for bottom plate of the machine, safe and stable working

7. RS-8409 fits for the vibration test of large-sized parts such as office equipment, furniture, houseware.





Parameters:



Model YY1406-100 YY1406-200 YY1406-300 YY1406-600 YY1406-1000
Load (Kg) 100 200 300 600 1000

Effective Area WxD

(mm)

1200×1000 1200×1000 1200×1300 1300×1400 1500×1500
Weight (Kg) 200 250 350 450 600

External Dimension

WxHxD (mm)

1300×650×

1300

1300×650×

1300

1300×650×

1400

1400×750×

1500

1600×850×

1600

Rotating Speed (RPM) 150~300
Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.) 0~999hours
Mode of Vibration Reciprocating type
Power AC220V or according to the equipment specification






Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator 0



Good Performance Package Testing Equipment ISTA 1A / 1B Transportation Simulator 1



ISTA 1A.PDF
