Place of Origin:
China
Brand Name:
YUYANG
Certification:
GB/T4857.4 GB/T4857.16 ISO2872、ASTM D642
Model Number:
YY1407

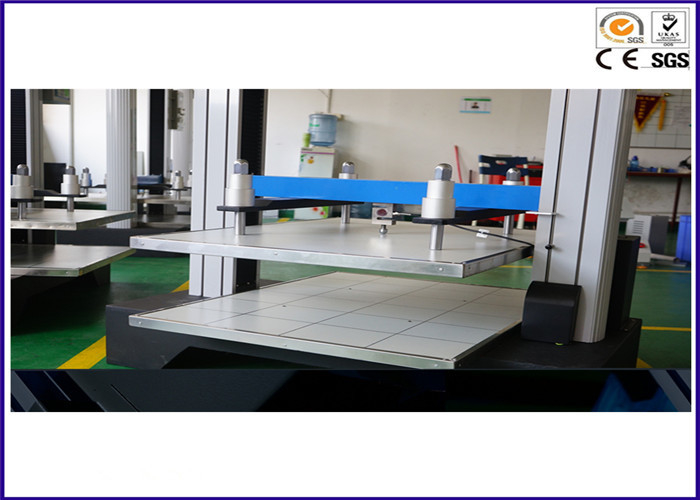

Micro-computer Carton Resist Compression Package Testing Equipment
Product Summary:
Electronic carton compression testing machine used to test the compressive strength
of cartons, containers and other packaging structures, It adopts dynamic holding pressure technology, simulates stacking test , in order to know the compressive strength and impact resistance capacity of product packaging during transportation and stacking. The test results can used as the reference for packaging design.
Features:
1. Taiwan AC frequency conversion motor drives, synchronous belt drive;
2. Adopts the gapless ball screw to lift, precise and stable;
3. With the U.S. high-precision explosion-proof type LOAD CELL;
4. Measured using microcomputer control, dual-LCD display: compressive strength value , maximum compressive strength value (maximum crushing strength), displacement, carton deformation (when the carton crushing deformation), etc. 4 values
5. To adopt Japan high-precision measurement to measure displacement.
6. Automatically print the test data
Standards:
GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642
GB/T16491TAPPI-T804 JIS-Z0212
Applicable Industry:
Electronic carton resist compression testing machine applicable to all factories and enterprises, technical supervision departments,the commodity inspection authorities, research institutes and other departments for testing and researching.
Technical Parameter:
| Model | YY1407 |
| Unit exchange | kgf, Ibf, N, |
| Resolution | 1/10,000 |
| Accuracy | ±1% |
| Display | LCD display |
| Compression space | 100*100*100cm(or designated) |
| Control system | AC converter, gear, Motor |
| Test speed | 12～350mm/min |
| Protector | Leakage protection, overload auto-shutdown, displacement limit protection |
| Printing |
Automatic printing the result, Print (maximum power, average, automatic abtained-point value, the breakpoints ratio, date) |
| Volume | 153×121×180cm |
| Power | 1∮ AC 220V 5A |
