| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | JIS-L1004,L1018,L1031,K6328,P8131,P8112, ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539 |
| Model Number: | YY1410 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Package Testing Equipment | Usage: | Bursting Strength Tester |
|---|---|---|---|
| Pressure Range: | 250~5600kpa | Specimen Clamping Force: | >690kpa |
| Sensing Method: | Pressure Transmitter | Material Of The Ring: | Stainless Steel |
| Opening In Clamp: | 31.5± 0.05 Mm Diameter | Dimension: | 445*425*525 Mm |
| Weight: | 70 Kg | Power: | AC220 10%, 50 Hz |
| High Light: | packaging testing instruments,vibration testing equipment |
||

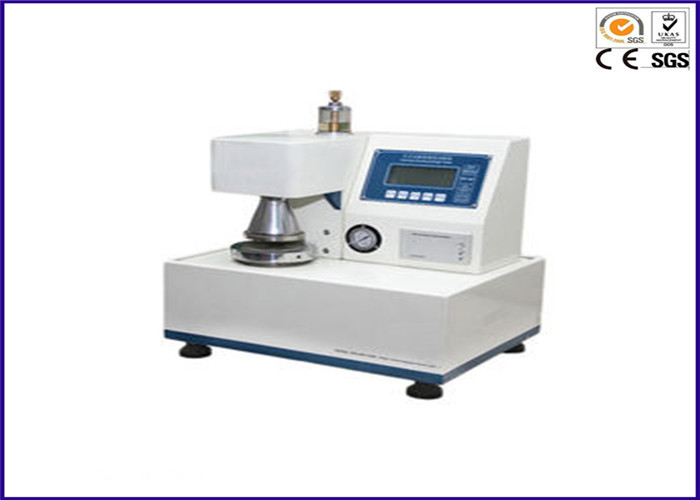

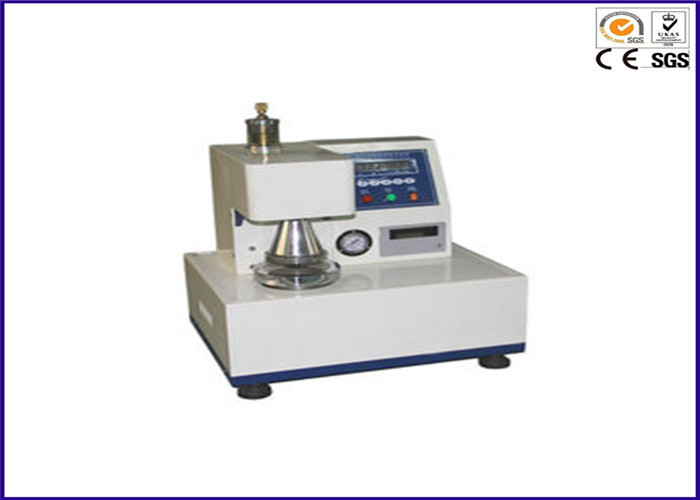

Electronic Paperboard Package Fully Automatic Bursting Strength Testing Equipment
Description:
Burst test equipment is used for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
Standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112, ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
Parameters:
| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (switchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ±0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method & Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/8 HP |
| Operation Method | Automatic |
| Dimension (LWH) | 445*425*525 mm |
| Weight | Approx. 70 kg |
| Power | AC220 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
| Optional Configuration | Printer, Air Pump |
Characteristics:
1. Advanced micro computer controller and digital processor ensure result precise.
2. Printer facility and fully detailed test reports.
3. Results of the tests are stored for viewing or for printing out as required.
4. User-friendly menu interface
5. Power protection ensure automatic record when power cut off.
