Place of Origin:
China
Brand Name:
YUYANG
Certification:
ISO 3035, ISO 3073, ISO 7263, GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
Model Number:
YY1412

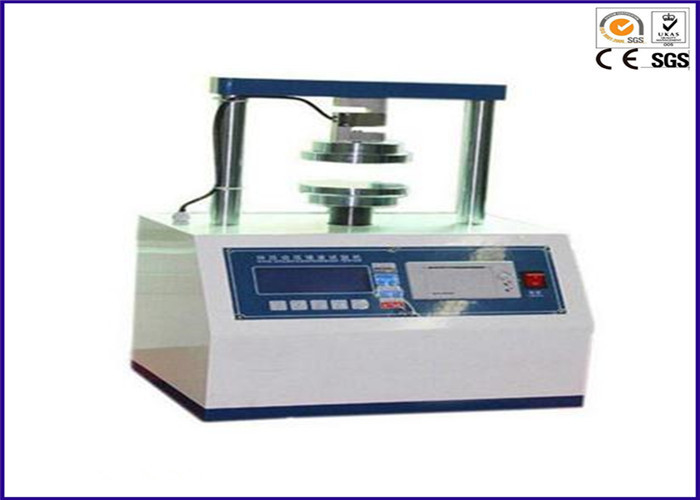

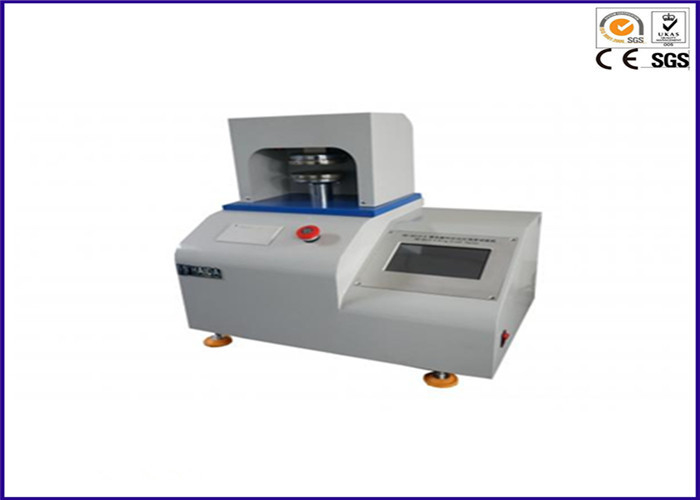

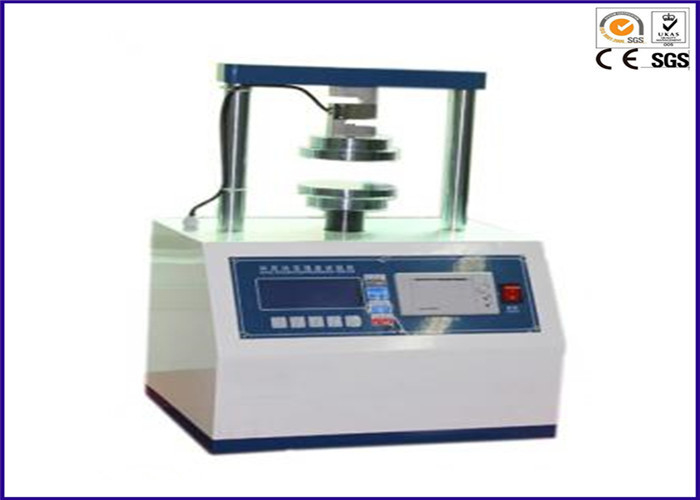

2000N Edge Crush Tester for Paperboard Strength with 130mm Test Stroke
Description:
This tester is used for testing the ring crush strength of the paperboard. With the
proper accessories (optional), it’s also available to test the column compress , ring
crush, concord crush and adhesion strength of the corrugated board.
Standard:
ISO 3035, ISO 3073, ISO 7263, GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
Specifications:
| Capacity | 2000N |
| Accuracy | 0.1kg |
| Platen dimension | 100×100mm(or customize by user needs) |
| Test stroke | 130mm |
| Test speed | constant speed |
| Return function | self-return after test finishing |
| Weight | 60kg |
| Power | 1φ,220V/50Hz |
Accessories:
1. Edge pressure strength test= Ring Crush Tester+ Parallel cutting knife + Edge
pressure counselling piece
2. Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush
fixture
3. Bonding strength test = Ring Crush Tester + Hood strength stripping frame;
4. Flat crush strength test = Ring Crush Tester+ Flat crush sampler;
