| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A 2005, ASTM 5276-98 |
| Model Number: | YY1414 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Package Testing Equipment | Usage: | Carton Resist Compression Test |
|---|---|---|---|
| Max. Load: | 2000Kg | Loading Measuring Accuracy: | ≤ 0.5% |
| Force Data Resolution: | 1/250000 | Test Travel: | 1200mm |
| Weight: | 1000kg | Power: | AC380V,50Hz |
| High Light: | packaging testing instruments,compression test equipment |
||

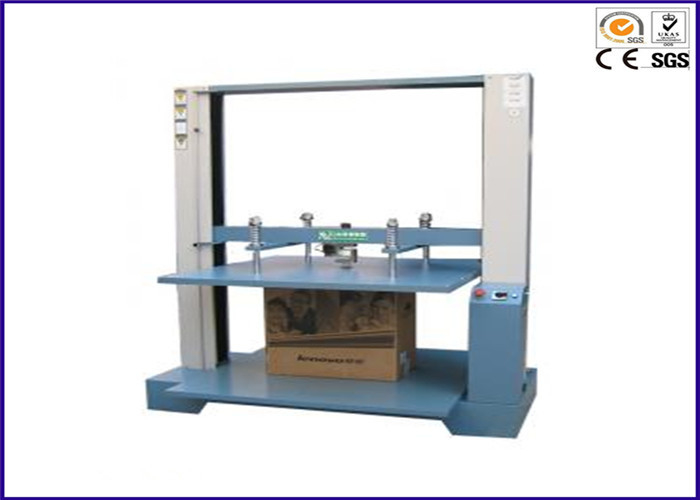

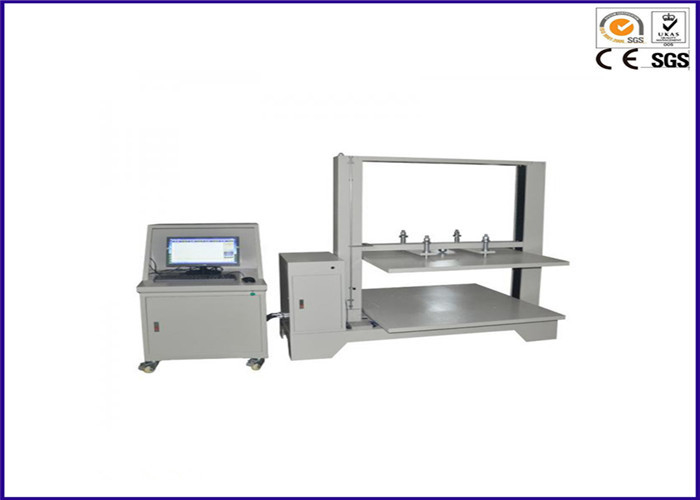

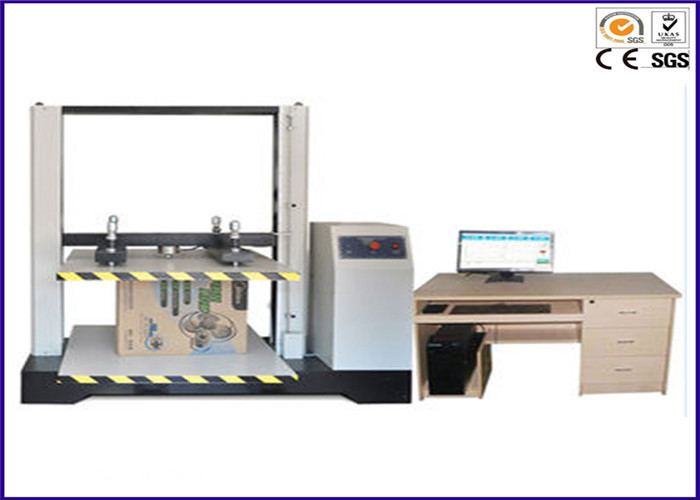

Loading Cell Computer Control Package Carton Resist Compression Testing Equipment
Description:
This Carton Compression Tester is designed to carry out entire packing container compression for various medium-size corrugated box as well as other material compression strength. The packing container is termed as food package, cosmetic package, beer package.
Place testing specimen on a place between two pressing plate and apply pressing force, then record loading and travel of pressing plate till testing specimen broken, maximum loading or pressing plate reach prescribed value.
Feature:
1. Designed with high precise USA loading cell as well as PULSE COMMAND control method assures high accuracy & enables a testing velocity control range at 1~100 mm/min;
2. Software Interface & dialog is available for displaying & controlling of testing projects such as constant speed, constant travel, constant loading(retention time available to set), constant loading increasing rate, constant stress increasing rate, constant strain increasing rate as well as multiple-stage control modes to meet various testing demands;
3. Available to plan and edit the testing report form, testing data can be displayed directly on main interface or dialog;
4. Available for testing curve data comparison of multiple-curve through methods of translation or comparison simultaneously;
5. Designed with multiple-measurement units which is available for free to shift from one to another & automatic return function;
6. Designed with automatic zoom-in to size the graphics in software interface dialog;
7. Available for compressing resistant test, bending resistance testing, Continuous compressing resistant test as well as fatigue test;
8. Higher sensitivity enables rapid responses such as instantaneous determination of crushing and automatic shutdown.
Specification:
| Tester Model | YY1414 |
| Max. Load | 2000Kg |
| Detecting Method | Loading Cell |
| Loading Measuring Accuracy | ≤ 0.5% |
| Force Data Resolution | 1/250000 |
| Displacement Resolution | 1/1000 |
| Displacement Data Resolution | ≤ 0.5% |
| Display Method | Full Computer display and testing control to display & print force curve & reporting sheet. |
| Test Travel | 1200mm |
| Test Space | W1000 X D1000X H1200mm |
| Overall Dimension | W1800 X D1000X H2000mm |
| Controller Size | W300 x D300 x H1100mm |
| Test Velocity | 0.1-100mm/min(Key Input) |
| Protective System | Automatic Shutdown Device: Max.& Min Limit, Automatic Breaking Point-Tester Shutdown, Max.Loading-Machine Shutdown, Over-load Protection, Over-Voltage Protection, Limit Protective Device |
| Travel | 1200mm, Full-Travel Parameter available to be displayed |
| Constant Compression Function | Constant Compression & constant compressing time is available to be set & record current compression parameter & testing time at carton collapse. |
| Gross Weight | Approx.1000Kg |
| Power Source | 3P AC 380V 50HZ |
