|Place of Origin:||China|
|Certification:||UL, CE, ISO|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Plywood Case|
|Delivery Time:||3-5 work days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||10 sets per month|
|Product Name:||Textile Testing Equipment||Usage:||Color Assessment Cabinet|
|Light Sources:||D65, TL84, UV, F/A||D65:||6500K|
textile lab equipment,
fabric stiffness tester

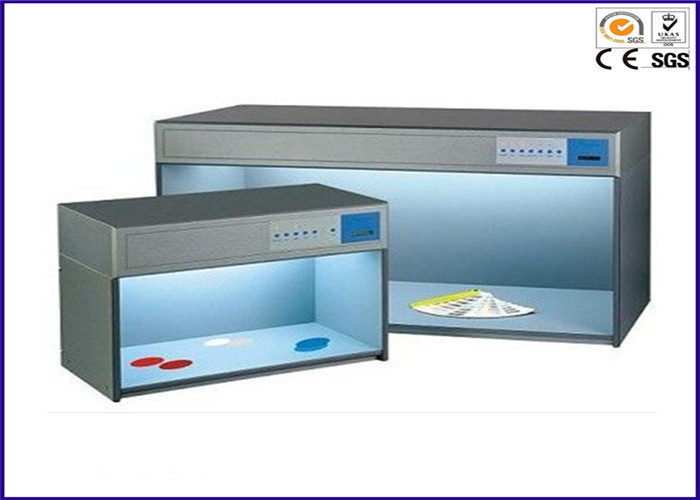

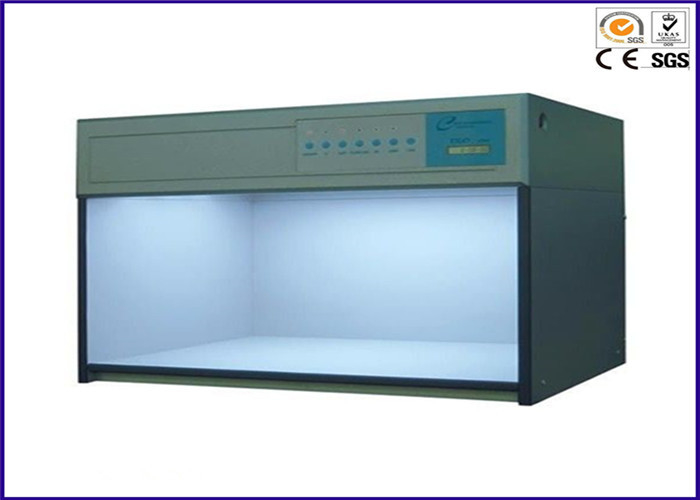

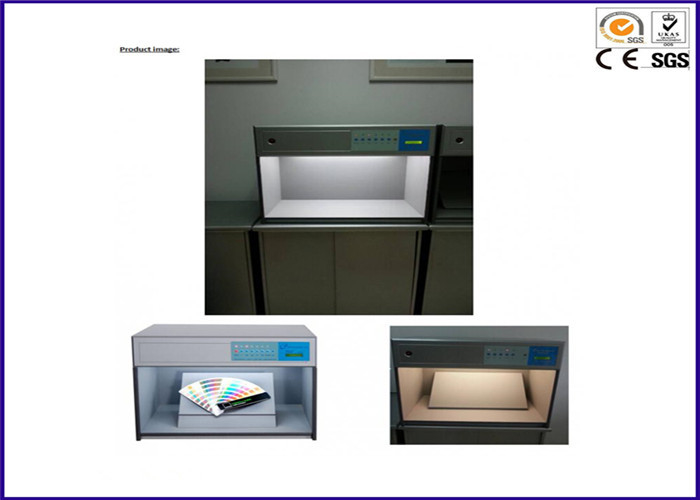

Automatic Color Assessment Textile Testing Equipment for Textile Fabric Test
Color Assessment Cabinet, also a kind of textile testing equipment ,suitable for all industries and applications where there is a need to maintain color consistency and quality-e.g. Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile test.
Since different light source has different radiant energy, when they arrive on the surface of an article, different colors display. With regard to color management in industrial production, when a checker has compared the color consistence between products and examples, but there may exist difference between light source used here and light source applied by the client. In such condition, color under different light source differs. It always brings following issues: Client makes complaint for color difference even requires for rejection of goods, seriously damaging company credit.
To resolve the above problem, the most effective way is to check good color under same light source .For example ,international Practice applies Artificial Daylight D65 as standard light source for checking goods color.
Color Assessment Cabinet is very important to use standard light source to check color difference in night duty.
Besides D65 light source ,TL84,UV, and F/A light sources are available in this Lamp Cabinet for metamerism effect.
1. Provide several light sources, i.e. D65, TL84, UV, F/A
2. Apply microcomputer to switch between the light sources quickly.
3. Super timing function to record use time of each light source separately.
4. All fittings are imported, ensuring quality.
5. Product size is 675mm*455mm*415mm.
Instructions for Light Source:
PHILIPS TLD 18W/840
Shop light Source
Yellow Light Source
