Place of Origin:
China
Brand Name:
YUYANG
Certification:
JIS L0849,GB/T3920-2008,5712,420, ISO105-X12,D02,AATCC8/165
Model Number:
YY810

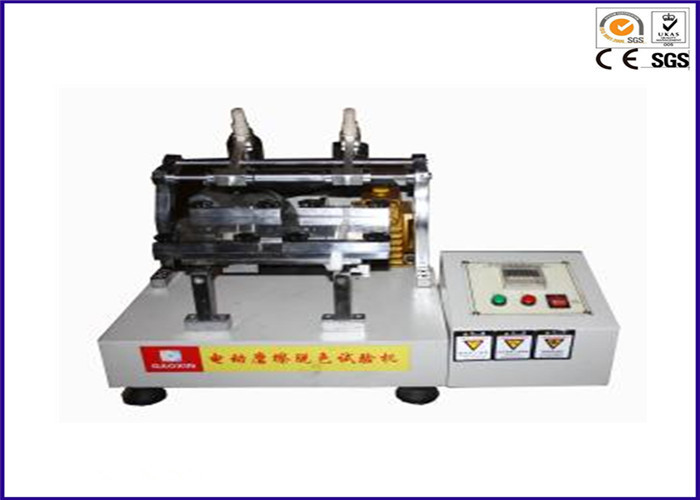

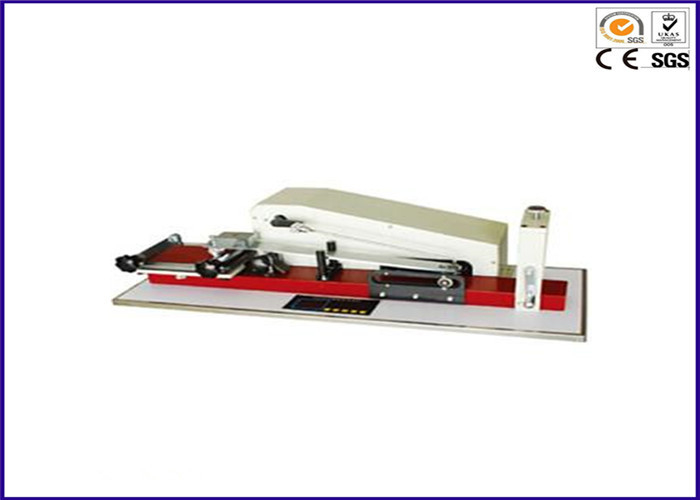

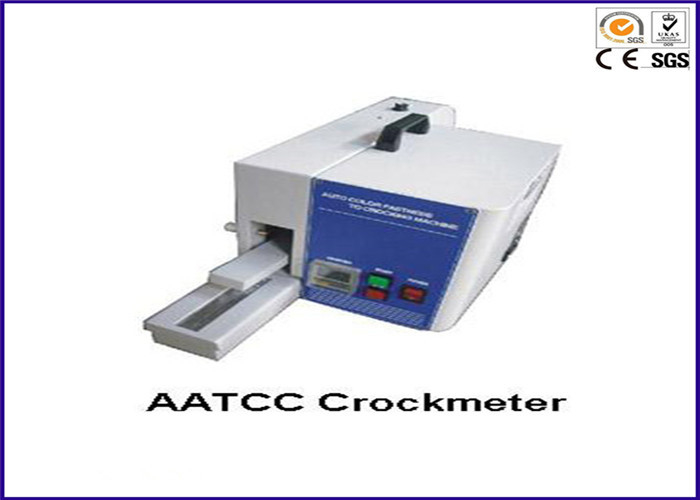

AATCC Motor Driven Crockmeter Electronic Crockmeter to Rubbing Fastness
Description:
Mainly used for marking cotton, wool, silk, knitting, dyeing and other types of textile industry as the determination of color fastness to dry and wet rubbing, scrubbing test color fastness testing equipment.
Parameters:
a) friction head Size: Round: Φ16mm square: 19 × 25mm
b) reciprocating friction and the number of first stroke: 100mm ± 1mm
c) friction head downward pressure: 9 ± 0.8N
d) friction velocity: from one per second (60 ± 3 beats / min)
e) test bed mat material thickness: 1 ~ 1.5mm (thin white consumption)
f) maximum size and thickness of the sample: 220 × 110 × 5mm
g) crank rotation frequency: 60 times / min
h) scrub head: Standard brush
Standard:
JIS L0849,GB/T3920-2008,5712,420；ISO105-X12,D02,AATCC8/165
Specification:
Weight: Net weight: 22KG, Gross weight: approx 30KG
Plywood box size: 91*33*29cm
Testing standard
AATCC 8 Colorfastness to Crocking: AATCC Crockmeter Method
AATCC 165 Colorfastness to Crocking: Textile Floor Coverings-Crockmeter Method
ISO 105-X12 Textiles -- Tests for colour fastness -- Part X12: Colour fastness to rubbing
BS 2543, BS 3424: Part 14, M&S C08, IOS-TM-0002, Mercedes Benz DBL 7384
