Place of Origin:
China
Brand Name:
YUYANG
Certification:
ASTM D5362, JIS L1058, M&S P21A
Model Number:
YY814

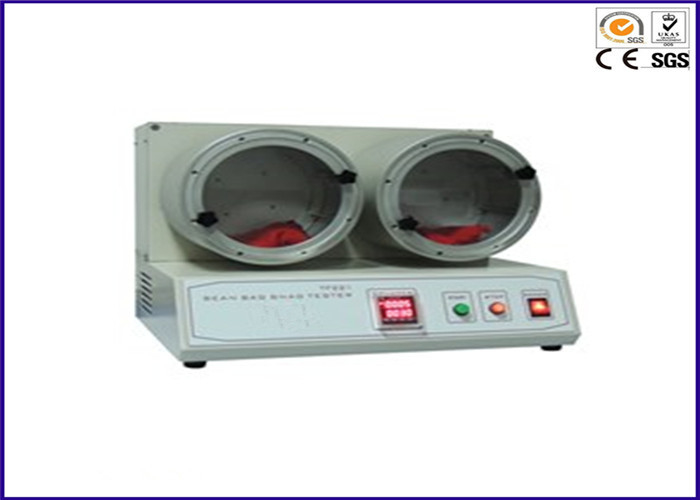

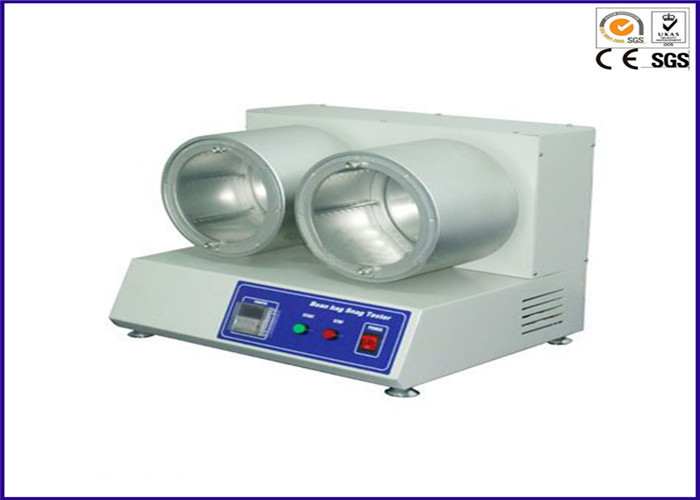

Bean Bag Snag Tester with Rotation Speed 20±3 r/min Footwear Testing Equipment
Description:
Bean Bag Snag Tester. To determine the snagging and picking characteristics of knitted fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20RPM for 100 revolution. Provided with predetermined electronic counter.
Bean Bag Snag Tester, to determine the snagging resistance of knitted and woven fabrics by tumbling fabrics pillows, Bean bag Snag tester complies with ASTM D5362, JIS L1058, etc.
Features:
1. With transparent plexiglass security cover, protect the operator and easy to observe testing process;
2. Drum being made from Anti-rust material for long time use
3. LED display and the counter can be preset;
4. Automatically stopped by the counter after predetermined revolution reach.
5. Wide international accepted testing method
Main technical parameters:
| Rotation speed | 20±3 r/min |
| tumbler | inner diameter:200mm,depth:145mm |
| pinned shelf | 8pcs |
| pinned bar | 9pcs,external diameter:8mm,depth:127mm |
| nails | bulged length 10 mm ,spacing 12 mm ,the angle of vertical direction 30°±5 |
| specimen dimension | 215mmx115mm |
| whole dimension | 47x38x38cm |
| weight(approx) | 38kg |
| power supply | AC 220V 50HZ 3A |
Standard:
ASTM D5362,JIS L1058, M&S P21A
Accessories: specimen plate 115x215mmx21 pcs, Bean bag 2pcs
Optional purchase consumables: scale, cabinet for scale
