High Precision Stroke 0.00004 mm Resolution Tensile Testing Machine
Description:
These series of universal testing machine are used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection,
Specification:
|
Model |
YY1304 |
|
|
Capacity (optional) |
10, 20 kN |
|
|
Unit (Switchable) |
kgf, lbf, N, kN, kPa, MPa |
|
|
Load Resolution |
1/200,000 (or 1/300,000 specified by user) |
|
|
Load Accuracy |
±0.25% |
|
|
Load Range |
Rangeless (full scales at the same amplification) |
|
|
Stroke (exclude the grips) |
1100 mm |
|
|
Effective width |
410 mm |
|
|
Test Speed |
0.001~1000 mm/min or 0.001~1500 mm/min selectable |
|
|
Speed Accuracy |
±0.1% |
|
|
Stroke Resolution |
0.00004 mm |
|
|
Sample Rate |
200 times/sec |
|
|
Communication Interface |
USB |
|
|
Motor |
AC servo motor |
|
|
Dimension (W×D×H) |
Main Unit (Height exclusive of footpad) |
75 × 78 × 232 cm |
|
Computer / Desk |
109 × 65 × 116 cm |
|
|
Weight (approx.) |
Main Unit |
223 kg |
|
Computer / Desk |
50 kg |
|
|
Power |
1∮, 220V, 15A, 50Hz/60Hz or specified by user |
|

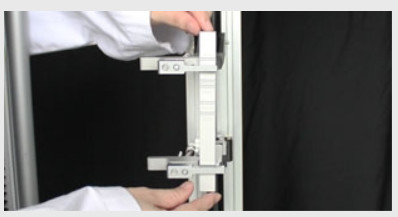

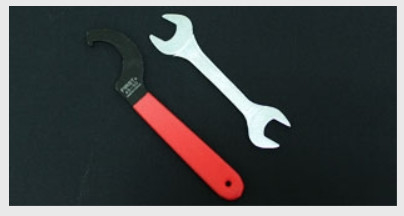

The accessories such as the different grips, elongation measuring-devices... etc. are equipped
according to the requirements specified in the contract; our sales representative will also give
the proper suggestions to our customer beforehand.
