Laboratory Desktop Tensile Strength Testing Machine with Test Speed 0.0001~999 mm/min
Description:
YUYANG series`tensile strength testers are widely applied to determining elongation,
compression, flexing,tear,peeling,shear force,adhesive force,etc.of finished or semifinished products such as rubber,plastic, footwear, leathers, metal,wire, paqer, timber,etc.
Specification:
|
Model |
YY1309 |
||
|
Capacity (optional) |
100, 200, 500 N; 1, 2, 5 kN |
||
|
Unit (Switchable) |
kgf,gf,Ton,lbf, N, kN or by user`s definition |
||
|
Load Resolution |
1/200,000 |
||
|
Load Accuracy |
0.25% |
||
|
Load Range |
Rangeless (full scales at the same amplification) |
||
|
Stroke (exclude the grips) |
1100 mm |
||
|
Test Speed |
0.0001~999 mm/min |
||
|
Speed Accuracy |
±0.5% |
||
|
Stroke Resolution |
0.00004 mm |
||
|
Sample Rate |
200 times/sec |
||
|
Communication Interface |
USB |
||
|
Display method |
U27E+U60 Dedicated Software |
||
|
Motor |
AC servo motor |
||
|
Dimension (W×D×H) |
Main Unit |
60 × 60 × 218 cm(exclude the stand) |
|
|
Weight (approx.) |
Main Unit |
120 kg (excluding control cabinet and grips) |
|
|
Power |
1∮, 220V,50HZ/60HZ, 15A or specified by user |
||

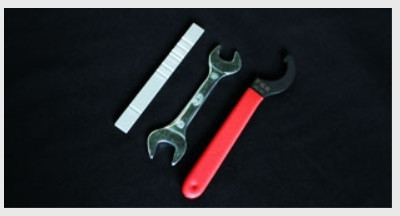

The accessories such as the different grips, elongation measuring-devices... etc. are
equipped according to the requirements specified in the contract; our sales
representative will also give the proper suggestions to our customer beforehand.
