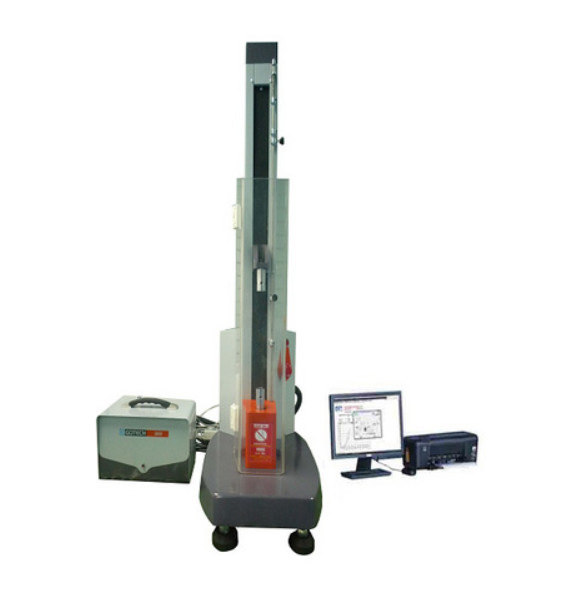

Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension

Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension

  • Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension
  • Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension
  • Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension
Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: QB/T 2918-2007
Model Number: YY1309
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 3pcs /week
Contact Now
Detailed Product Description
Name: Textile Testing Machines Speed Accuracy: ±0.5%
Communication Interface: USB Stroke Resolution: 0.00004 Mm
Test Speed: 0.000~999 Mm/min Sample Rate: 200 Times/sec
Stroke (exclude The Grips): 500 Mm
High Light:

universal tensile machine

,

universal testing machine

Servo Control Tensile Strength Stroke (exclude the grips) 500 mm Tensile Testing Machine





Description:



This instrument is designed to measuring tension, tearing strength, peeling force, etc., for low strength materials including plastic film, plastics, cell phone cable, textile fiber, paper, rubber, food packaging, wire rope, stainless steel wire, copper foil, etc.





Specification:



Model

YY1309

Capacity (optional)

100N

control system

Servo motor with computer system

Load Resolution

1/200,000 (or 1/300,000 )

Load Accuracy

±0.5%

Load Range

Rangeless (full scales at the same amplification)

Stroke (exclude the grips)

500 mm

Communication Interface

USB

Test Speed

0.0001~500 mm/min

Speed Accuracy

±0.5%

Stroke Resolution

0.00004 mm

Computure Acquisition Frequencye

200 times/sec

Dimension (W×D×H)

Main Unit

35 × 40 × 105 cm

Weight (approx.)

Main Unit

50 kg( exclude the grips)

Power

1∮, 220V,50Hz or specified by user







Servo Control Tensile Testing Machine Stroke 500 Mm For Measuring Tension 0
