Place of Origin:
China
Brand Name:
YUYANG
Certification:
DIN 53886, JIS L1092, GB/T 4744, ISO811, FZ/T 01005, AATCC 127
Model Number:
YY817

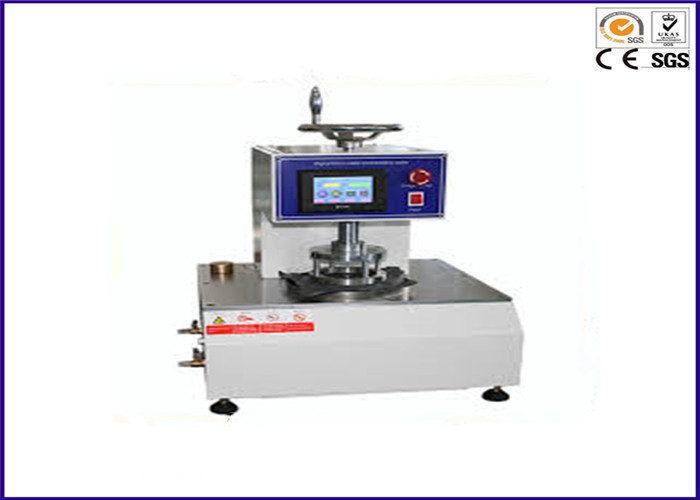

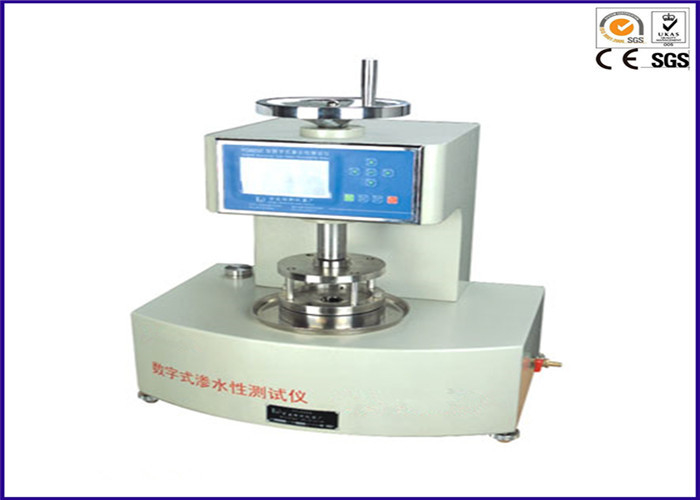

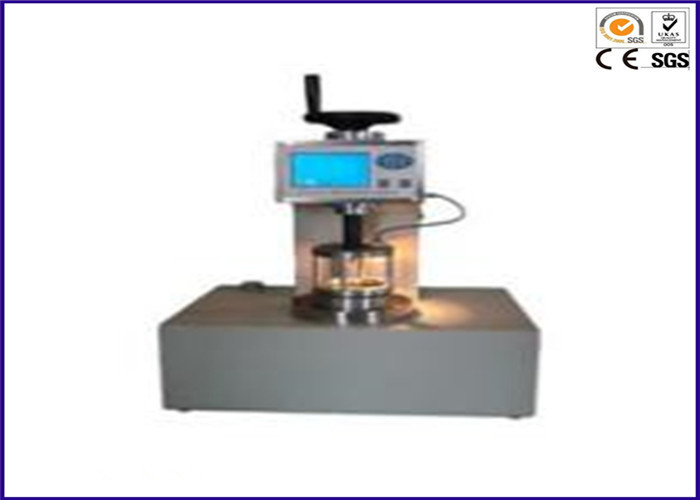

Digital 500pa-200kpa Fabric Hydrostatic Pressure Tester, AATCC 127 Textile Tetsting Equipment
Application:
Used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, etc.
Standards:
DIN 53886 JIS L1092 GB/T 4744,ISO811,FZ/T 01005,AATCC 127
Testing mode
1. Turbocharged method;
2. High pressure supercharge method;
3. High pressure constant method;
4. flexing resistance relaxation method;
5. leakage water method
Technical Parameters:
1. Measuring range: 500pa-200kpa(5-2000cmH2O)
2. Resolution: 1 pa
3. Accuracy: 0.2%FS
4. Pressure speed: 50--900mm/min (500pa-9kpa;5mbar-90mbar)stepless adjustable
5. Accuracy error: ≤1 mm
6. Specimen holder Pneumatic Grip Dimension: 100cm2
7. External dimension: 600×400×780mm(L×W×H)
8. Weight:50 kg
9. Power source: Ac 220V±10% 50HZ 100W or specified
