Durable Textile Testing Equipment Rotawash Washing Fastness Tester For Textile Materials

Durable Textile Testing Equipment Rotawash Washing Fastness Tester For Textile Materials

textile testing machines

fabric stiffness tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO 105 M&S C4A,5,37,P3B IWSTM 7,115,177,193,240,241 AATCC 2,3,28,61,62,86,132,151,190 FTMS 191-5610/5622 BS 1006 NEXT 2,3,5

Model Number:

YY818

Contact Us
Request A Quote
Product Details
Product Name:
Textile Testing Equipment
Usage:
Launderometer
Material:
Stainless Steel
Rotation Speed:
40+/-2rpm
AATCC Canister:
Room Temperature---95℃
ISO Canister:
±2℃
Time Control Range:
99.9min
Time Control Error:
<±5s
Highlight:

textile testing machines

,

fabric stiffness tester

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
10 sets per quarter
Product Description



Durable Textile Testing Equipment Rotawash Washing Fastness Tester For Textile Materials







Description:



Rotawash Washing Fastness Tester is used for determining colour fastness of textile materials to washing. This is attained by mechanically agitating a specimen of textile in contact with pieces of specified adjacent fabrics in a soap soda solution. Before being rinsing and dried. The change in colour of specimen and stains of the adjacent fabrics are assessed with standard Grey Scale.

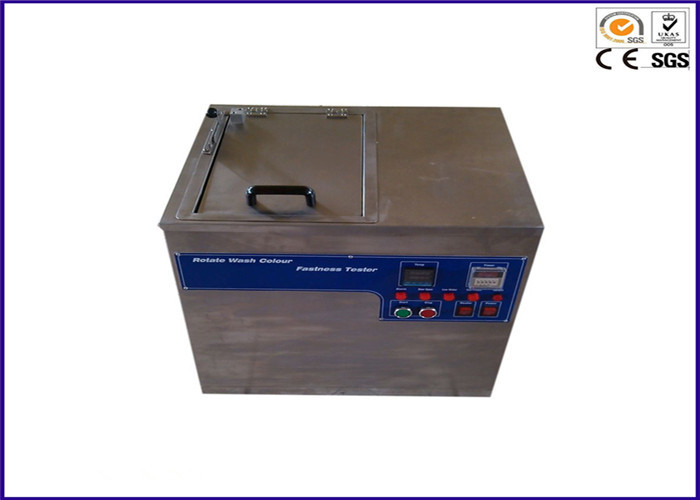

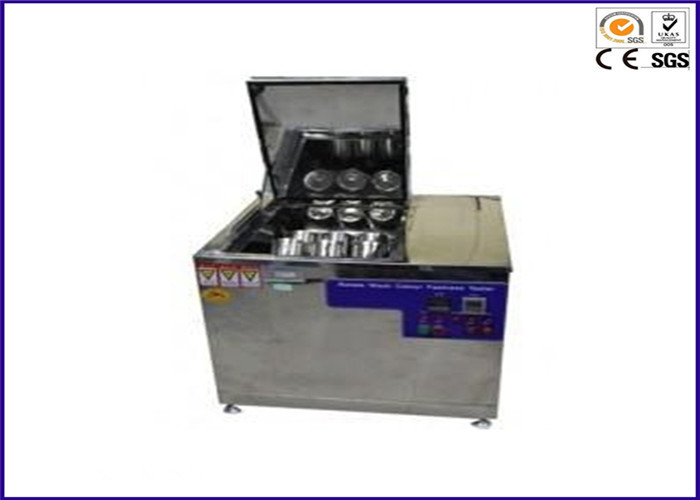

WASHING FASTNESS TESTER’ consists of a thermostatically controlled, electrically heated water bath made of Stainless Steel. The bath is heated by means of immersion heaters and its temperature controlled by a capillary type thermostat. The temperature of water inside the bath is displayed on a digital temperature indicator. The bath has a double walled hinged lid made of stainless steel sheets.

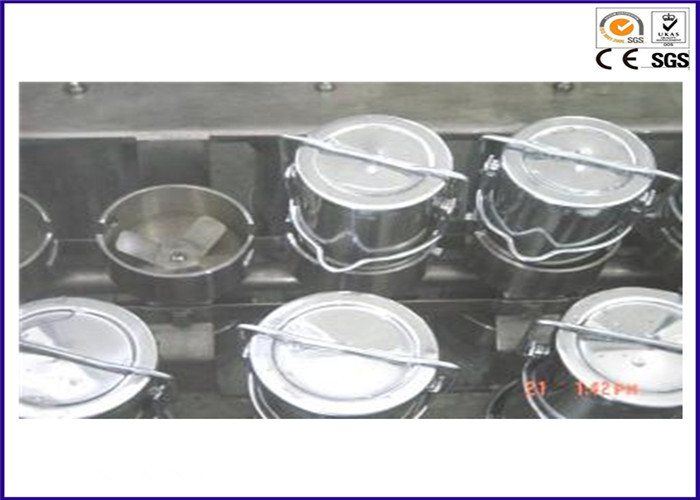

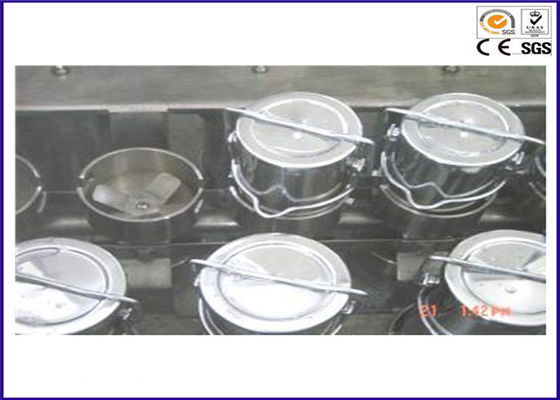

The jars in which the test solution and the test specimens are kept during the test are made from stainless steel and are provided with rubber scales for water tight closing. They are held in a cast stainless steel rotor assembly mounted on a stainless steel shaft at the center of the bath and rotating about a horizontal axis with the help of a geared Motor. A clockwork timer is provided to stop the motor after a pre-determined time. The apparatus is fabricated on a sturdy angle iron frame and is completely enclosed on all four sides with mild steel sheet duly enameled in metallic green paint. The top of the apparatus is covered with stainless steel sheet.

One hundred stainless steel balls of 6 mm diameter are supplied with the apparatus as standard accessory for providing beating action during the washing operation. Extra stainless steel balls and standard Grey Scales are available as optional accessory.





Specification:



Model

YY818-A4(AATCC)+4(ISO)

YY818-B6(AATCC)+6(ISO)

YY818-C8(AATCC)+12(ISO)

Speed

40±2rpm

Temp.range

Room temperature---95℃

Temp. fluctuation

±2℃

Time control range

99.9min

Time control error

<±5s

Heating method

Electric heating

Dimension

550×550×750mm(W×D×H)

750×550×750mm(W×D×H)

1150×600×1100mm(W×D×H)

Power

220V 50Hz 3A

220V 50Hz 5A

380V 50Hz 10A

weight

60 kg

100 kg

140kg





Standards:



ISO 105 M&S C4A,5,37,P3B IWSTM 7,115,177,193,240,241 AATCC 2,3,28,61,62,86,132,151,190 FTMS 191-5610/5622 BS 1006 NEXT 2,3,5





Accessories:

A 4+4

1200ml Washing tank 4 pcs(AATCC)
500+50ml Washing tank 4pcs(ISO)
Dia.6mm stainless ball 500 pcs
Dry cleaning piece 20 pcs



B 6+6

1200ml Washing tank 6 pcs(AATCC)

500+50ml Washing tank 6 pcs(ISO)

Dia.6mm stainless ball 500 pcs

Dry cleaning piece 20 pcs



C 8+8

1200ml Washing tank 8pcs(AATCC)

500+50ml Washing tank 12pcs(ISO)

Dia.6mm stainless ball 500 pcs
Dry cleaning piece 20 pcs

Optional purchase consumables: Grey Scales, Standard detergent, Standard Soap powder, Standard fiber cloth
