| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T2543.1 GB/2543.2 ISO 2061, BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70 |
| Model Number: | YY820 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Product Name: | Textile Testing Equipment | Usage: | Test Yarn Twist |
|---|---|---|---|
| Testing Length: | 10~500mm | Testing Range(Twist): | 1-999 |
| Test Cycles: | 100 | Linear: | 1～499.9 |
| Testing Speed: | 100r/min～2000r/min | Dimensions: | 970x250x310mm |
| High Light: | textile testing machines,fabric stiffness tester |
||

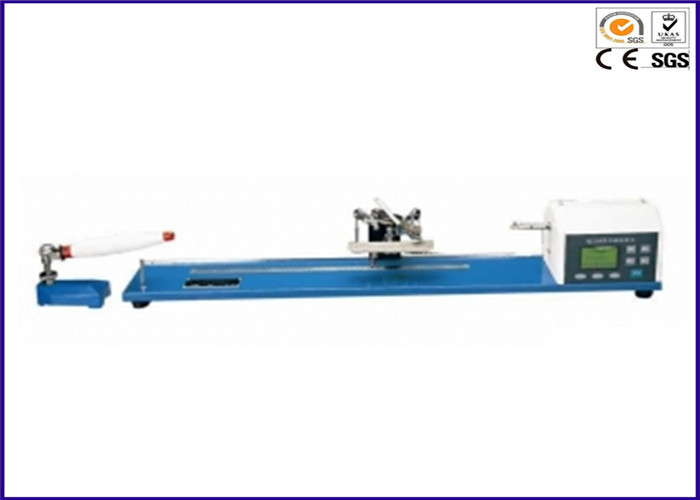

Electronic Reeling Twist Tester Digital Textile Testing Equipment for Test Yarn Twist
Description:
The machine is used for the textile industry to test the yarn twist such as cotton,wool,silk,fibre,chemical fibre etc. Automatically to counting and printing the test data.
Features:
Three methods available to be selected by the operator :
1. Traditional "untwist/ retwist " methos for single yarns.
2. Direct " untwist" method for plied yarns , threads and multifilament yarns.
3. Untwist , retwist and double countercheck for worsted and slippery yarns.
Standards:
GB/T2543.1 GB/2543.2 ISO 2061 ,BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70
Parameters:
Testing Length: 10~500mm selectable
Testing Range(Twist): 1-999
Test cycles: 100
Linear: 1～499.9 tex
Testing Speed: 100r/min～2000r/min (continuously adjustable)
External Dimensions: 970x250x310mm
Power Source: AC220V 50HZ
Standards: GB/T2543.1 GB/2543.2 ISO 2061 ,BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70
Accessories: power line 1pcs, magnifying glass , Analysis needle
