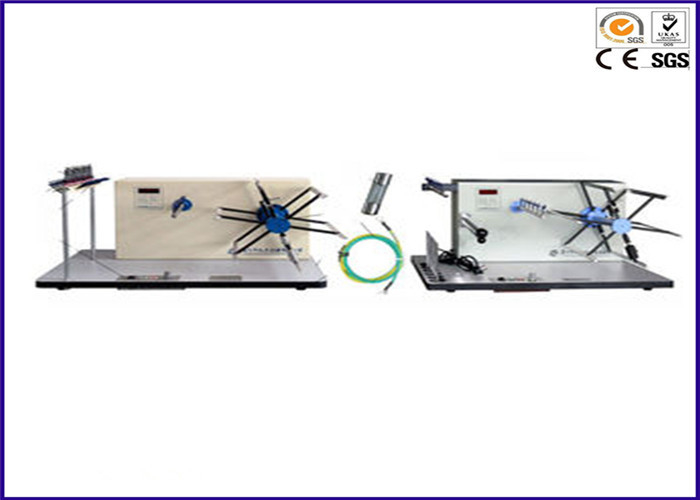

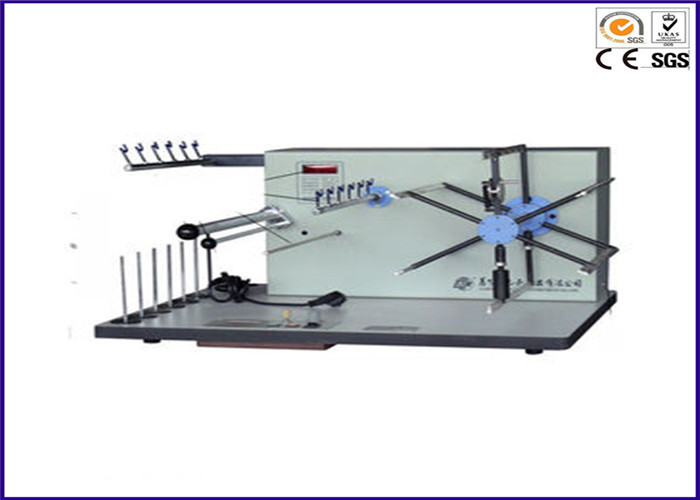

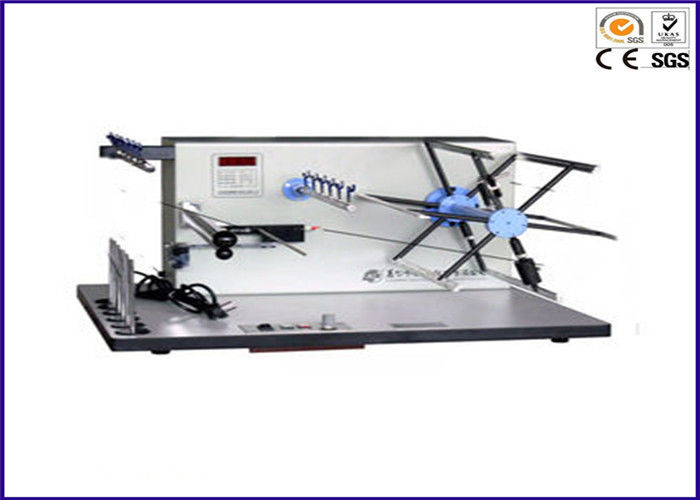

Automatic Textile Testing Equipment Electronic Yarn Reel Tester and Wrap Reel Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D1907, ASTM D2260, ISO 2060, BS 2010, DIN 53830
Model Number: YY821
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Yarn Reel And Wrap Reel Test
Reel Circumference: 1000mm Rev Of Reel: 25-300 RPM
Interval Of Spindle: 65cm Number Of Wrap: 2~9999 Rev
Programmable Stop: 1~9 Rev Dimensions: 780×660×480mm
High Light:

textile testing machines

,

fabric stiffness tester



Automatic Textile Testing Equipment Electronic Yarn Reel Tester and Wrap Reel Tester







Usage:



Electronic Wrap Reel is designed to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.





Standards:



ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

BS 2010 Method for determination of the linear density of yarns from packages

DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)





Characteristics:


1. Electronic Wrap Reel Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable), and auto tracking speed of reel, have two start up model (hard startup, soft start up), all make unit work consistently and stably;

2. Precision DC speed regulating motor with synchromesh belt makes precisely positioning;

3. Numeric speed controlling panel, make unit work consistently and stably;

4. Two optional start up mode (hard start up, soft start up), do not break yarn when start up;

5. Electronic limit trips, total rev number and user programmable stops;

6. Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.





Specifications:



Model

YY821

Reel circumference

1000mm (metric system)

Rev of reel

25-300 RPM (numeric pre-settable)

Interval of spindle

65cm

Number of wrap

2~9999 Rev(pre-settable)

Programmable stop

1~9 rev(pre-settable)

Traveling reciprocating distance

35mm±1mm

Reeling pre-tension

0~100cN (pre-settable)

Instrument Size

780×660×480mm

Instrument weight

50kg





Features:



1. Timing cog belt of direct transmission, No-lap skid

2. Countint by Optocoupler

3. Import electronic tension sensors, dynamic display the around yarn tension, no additional tension impact (B type)
