Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester

Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester

  • Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester
  • Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester
  • Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester
  • Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester
Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T4802.2,ASTM D4970,ISO12945-2, GB/T13775,ASTM D4966,ISO12947
Model Number: YY833
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Martindale Abrasion And Pilling Test
Station Number: 4 Station Maximum Dynamic Range: 24±0.5mm ,60.5±0.5mm
Gripper: 200 ± 1g Weight Of Pressure Hammer: 2385 ± 10g
Weight: 150kg Dimensions: 885mm×600mm×410mm(L×W×H)
High Light:

textile testing machines

,

fabric stiffness tester



Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester





Description:



The theory: at a given pressure ,circular fabric specimen and the same material, carrying out friction Lissajous trajectory graph, after achieved the required rotation, evaluate the pilling degree of the specimen. Also applies to GB/T13775, ASTM D4966, ISO12947 and other fabric wear test. The theory: circular fabric sample at a certain pressure, rubbing with the standard abrasive according to Lisa if (Lissajous) curve’strajectory, leading to specimen damaged, use the times of specimen damaged to represent fabric abrasion wear resistance.





Feature:



The instrument learn the advantages of domestic and foreign similar equipment’s design, it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate,computer system uses two counting methods, visual appearance, convenient setting, 8 station testing at the same time to improve test efficiency. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm, and a variety of trajectory matching accessories, can adapt to a variety of test methods standard.





Standard:



The pilling degree test of fabric of GB/T4802.2,ASTM D4970,ISO12945-2 etc.

The wear test of fabric of GB/T13775,ASTM D4966,ISO12947 etc.





Specifications:



Model

YY833

Station number

4 station

Count display



a. Estimated counting:0~999999 times

b. Total counting:0~999999 times

Maximum dynamic range

24±0.5mm ,60.5±0.5mm

Weight of pressure thing



a.Gripper:200±1g

b. Cloth samples hammer:395±2g

c. Furniture accessories sample hammer:594±2g

d. Stainless steel butterfly piece:260±1g

Effective friction diameter of grinding block



A type: 200g (1.96N) friction head ¢ 28.8-0.084mm

B type: 155g (1.52N) friction head ¢ 90-0.10mm

The relative velocity of Gripper and the grinding station

50-2r/min

Weight of pressure hammer

2385±10g

Dimensions

885mm×600mm×410mm(L×W×H)

Weight

150kg

Power

Ac220V,50Hz

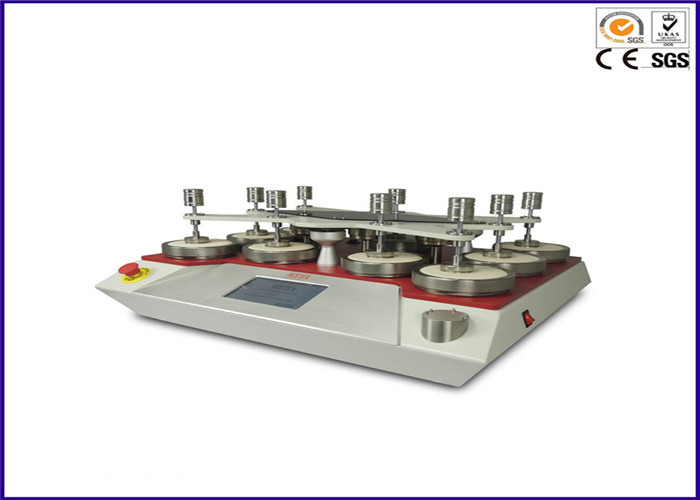

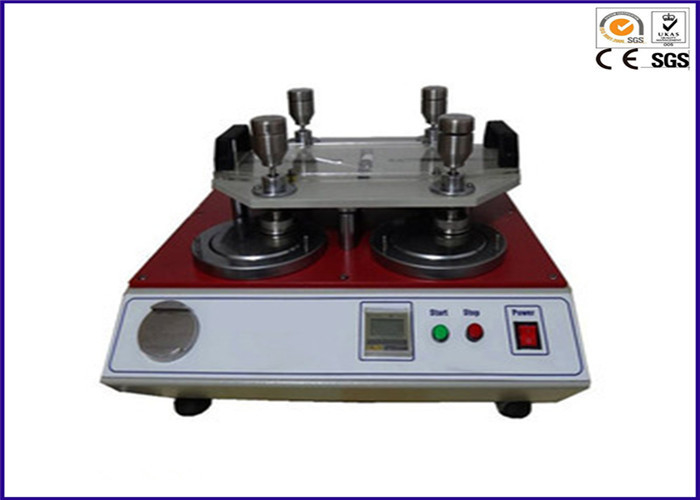

Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester 0

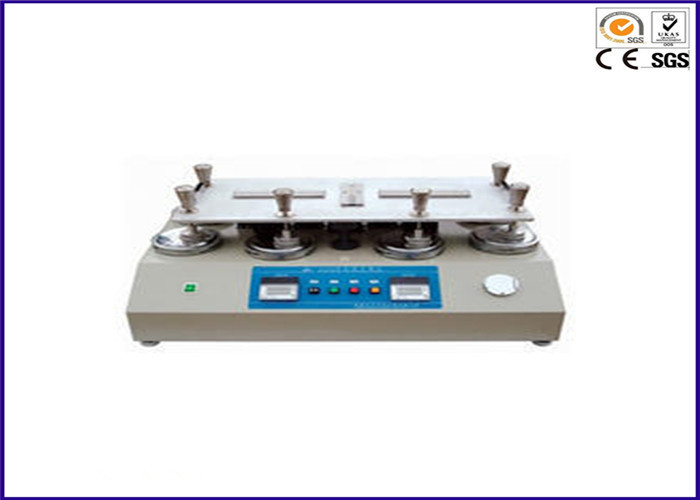

Four Heads Wear Resistance Abrasion Textile Testing Equipment , Pilling Martindale Abrasion Tester 1
