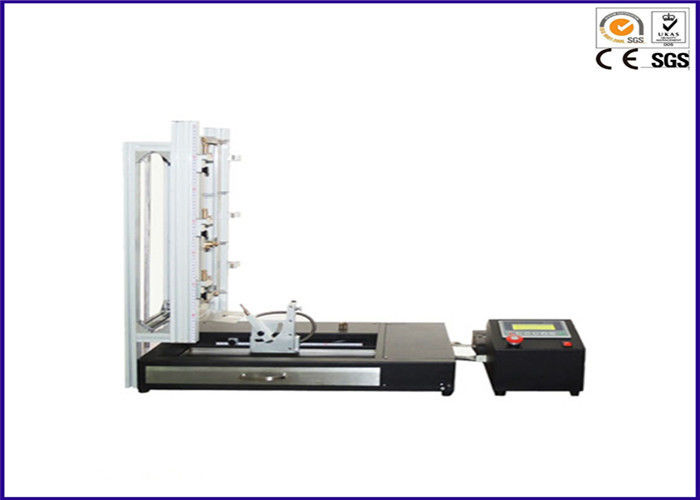

0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment

0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment

  • 0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment
  • 0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment
  • 0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment
  • 0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment
0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 5456,8746,BS EN ISO 6940,6941,15025,BS 5438
Model Number: YY836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Multi-purpose Textile Flammability Test
Test Sample: 560mmx170mm Flame Level: 0~60mm
Burner Angle: 0°/22.5°/90° Firing Time: 5 S
Weight: 30kg Dimensions: 93x65x88cm
High Light:

textile testing machines

,

fabric stiffness tester



0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment





Description:



This textile flammability tester machine is used to test the flame spread performance of single-or multi-component (coating, quilted, multi-layered, laminated products and similar combinations) including clothing, curtains, draperies and large tent awning and door cover textile at vertical condition.





Parameter:



1. Test sample: 560mmx170mm
2. Flame level: 0~60mm adjustable

3. Burner angle: included angle with level line:0°/22.5°/90°adjustable
4. Firing time: 5 s
5. Burning gas: butagas
6. Size(WxDxH): 93x65x88cm

7. Weight:≈30Kg
8. Power:1∮ AC 220V 50Hz





Standards: GB/T 5456,8746,BS EN ISO 6940,6941,15025,BS 5438, EN 1103, EN 14878

Accessories: Flame gauge 40mm 1pcs(ISO 6940,6941), Flame gauge 25mm 1pcs( ISO 6940,6941

Fire needle mouth positioning instructions 2pcs (ISO 6940,6941), clamps 2 set, weights 8 pcs,

burning torch 1pcs Micro gas tanks device, Micro gas cylinders, power line 1pcs



0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment 0



0~60mm Flame Level 0°/22.5°/90° Multi-purpose Textile Flammability Testing Equipment 1
