DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | AATCC 35 |
| Model Number: | YY839 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Product Name: | Textile Testing Equipment | Usage: | Rain Test |
|---|---|---|---|
| Sample Dimensions: | 150mm | Press Foot Diameter: | 200*200mm |
| Sample Nip Width: | 152mm | Sample Nip Space Between: | 165mm |
| High Light: | textile testing machines,fabric stiffness tester |
||

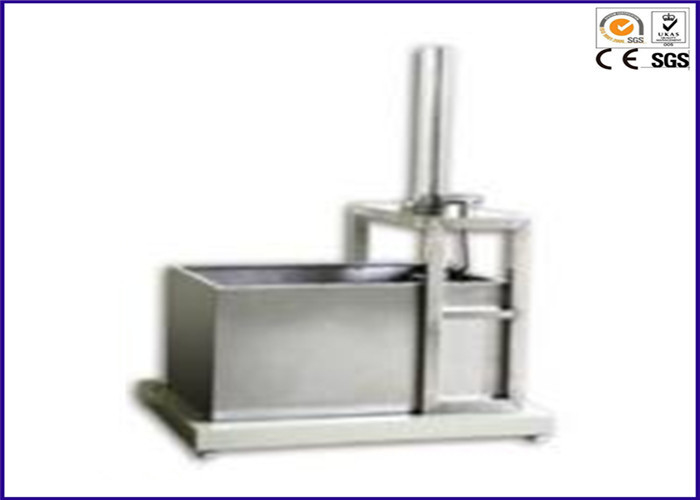

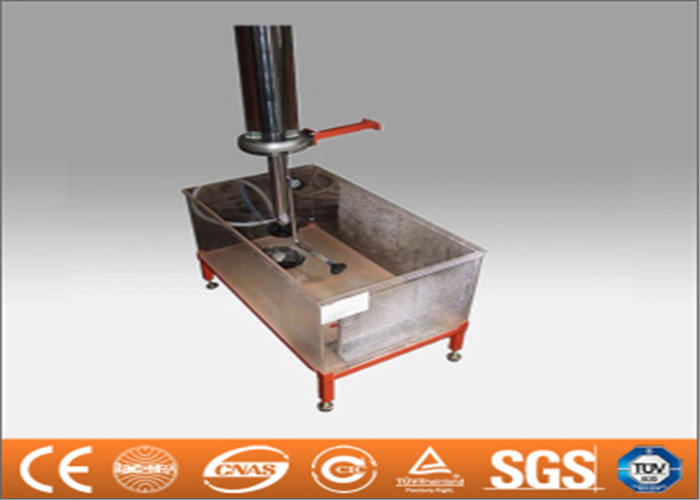

AATCC 35 Rain Tester 150mm Specimen Stainless Steel Textile Testing Equipment
Description:
To determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized blotting paper which is weighed before and after each test.
Principle:
Use the weighted absorbent paper to wrap over the test sample, make the test sample under water spraying for 5 minutes in controlled conditions, then re-weighted the absorbent paper to determine the amount of water infiltrated in the test sample during the spraying process.
Specification:
1. Sample Dimensions:150mm
2. Press foot diameter:200*200mm
3. Blotting Paper Dimensions:152*152mm
4. Sample Nip Width:152mm
5. Sample Nip Space Between:165mm
Standards: AATCC 35
