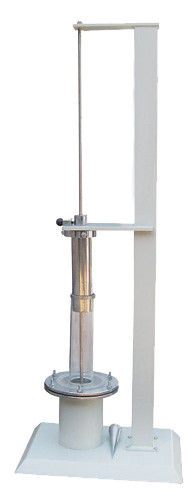

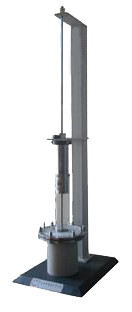

Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630

Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630

  • Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630
  • Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630
  • Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630
Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: BS EN ISO13433, GB/T17630, JTG E50
Model Number: YY849
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, L/C,
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Product Name: Tensile Testing Machine Usage: Geotextile Dynamic Perforation Test
Clamp Inner Diameter: 150±0.5mm Cone Weight: 600±5g
Division: 2mm/scale Overall Size: 435×575×1600mm
High Light:

textile testing machines

,

fabric stiffness tester



BS EN ISO13433, GB/T17630 Geotextile Dynamic Perforation Testing Machine





Description:



This machine is use to test dynamic Perforation Test (cone Drop Test) for all kinds of geotextile and geosynthetics products.





Principle:


The geotextile specimen is horizontally clamped in the clamping ring, and then the specified quality of the steel cone from the 500mm height drop on the sample, the formation of holes in the sample, and then marked with a small angle of the cone into the hole Measured the degree of penetration.





Application:


Construction, building materials, water conservancy, electricity, metallurgy, petrochemical, port, road bridge, municipal and other basic construction projects.





Standards:



BS EN ISO13433 Geosynthetics-Dynamicperforationtest(conedroptest)

GB/T17630, JTG E50





Parameters:



Model

YY849

Clamp Inner Diameter

150±0.5mm

Distance from the top of cone to sample

500±2mm

Drop Cone Angle and Weight

Cone Angle:45°;Total Weight:1000±5g

Cone Weight

600±5g;division:2mm/scale

Overall Size

435×575×1600mm





Standard Configuration



1 Main machine 1set

2 Stainless steel cone 1pcs

3 Measuring cone 1pcs

4 Sampling template 1pcs



Geotextile Dynamic Perforation Testing Equipment BS EN ISO13433 GB/T17630 0
