Place of Origin:
China
Brand Name:
YUYANG
Certification:
BS EN ISO 9863-1,JTG E50GB/T 13761
Model Number:
YY849

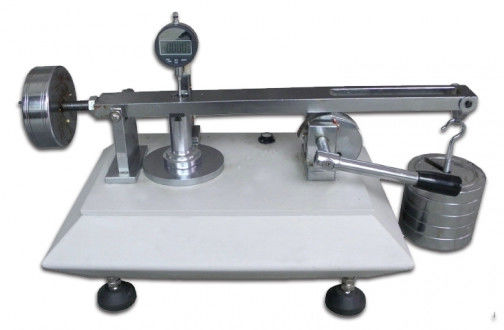

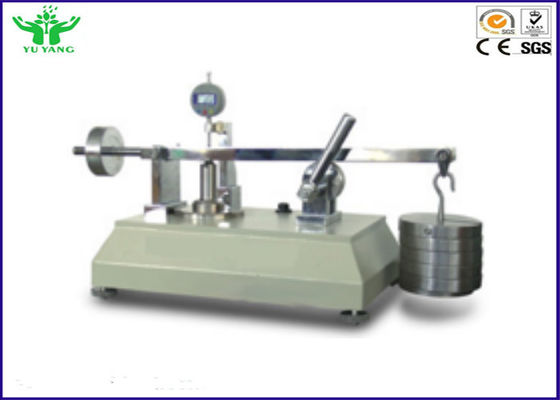

Laboratory ISO 9863-1 Geotextile Thickness Tester Textile Testing Equipment
Description:
This thickness tester is used to measure the thickness of geosynthetics products under different pressure in a specified time.
Standards:
BS EN ISO 9863-1,JTG E50GB/T 13761
Parameter:
Model |
YY849 |
Presser-foot area |
25cm (diameter:¢56.42mm) |
Presser-foot weight |
5N(510.2g *4pcs) |
Sample pressure |
2±0.01kpa;20±0.1kPa;200±0.1kPa |
Gauge |
0~24±0.01mm |
Gauge |
0~1±0.001mm |
Dimension |
730×320×350mm |
Weight |
38kg |
