Place of Origin:
china
Brand Name:
YUYANG
Certification:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527
Model Number:
YYP-003

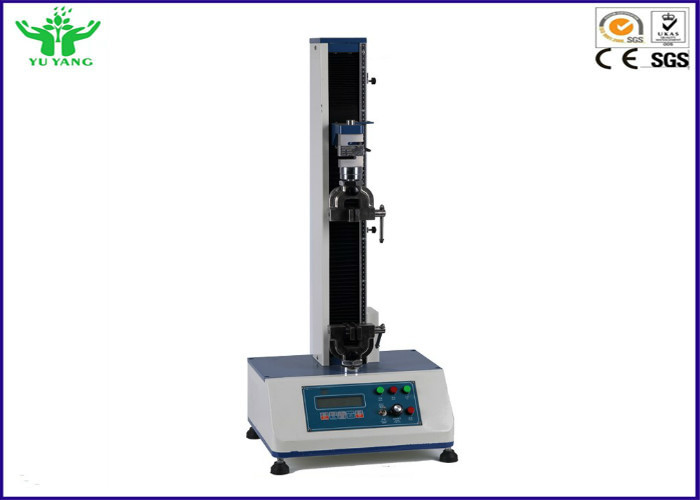

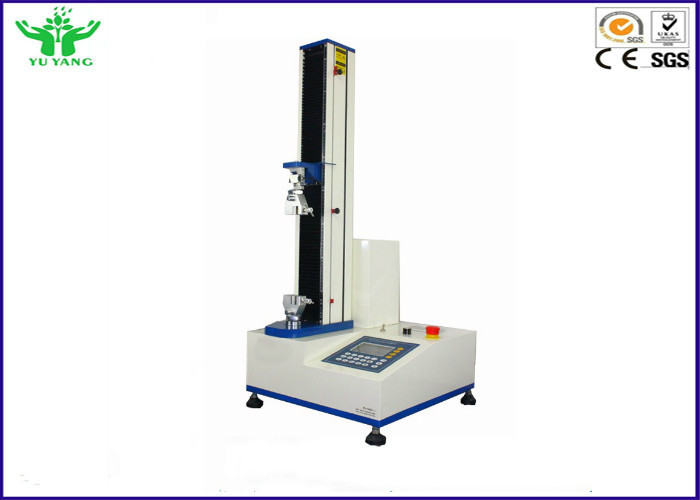

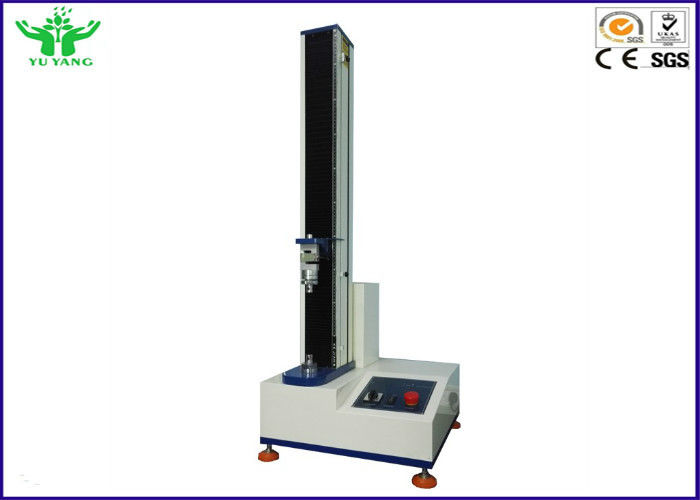

ASTM D903 Desktop manual package tensile test equipment 5KN 1PH AC220V 50/60Hz
Products introduction:
This equipment is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Characteristics:
1. That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performace, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
Design Standards:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527
| Model | YY003-1 | YY003-2 |
| Range of speed | 50~500mm/min | 0.1~500mm/min |
| Motor | AC motor | Panasonic sevor motor |
| Resolution | 1/150,000 | 1/250,000 |
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional | |
| Whole stroke | 850mm (contain grips, can customize) | |
| Accuracy | ±0.5% | |
| Force relative error | ±0.5% | |
| Displacement relative error | ±0.5% | |
| Test speed relative error | ±0.5% | |
| Effective testing space | 120mmMAX | |
| Accessories | computer, printer, system operation manual | |
| Optional accessories |
stretcher, air clamp
|
|
| Operation method | Windows operation | |
| Weight | 70kg | |
| Dimention | (W×D×H)58×58×145cm | |
| Power | 1PH, AC220V, 50/60Hz | |
Safety Device:
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
