Electronics Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine

Electronics Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine

  • Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine
  • Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine
  • Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine
  • Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine
Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine
Product Details:
Place of Origin: china
Brand Name: YUYANG
Model Number: YYP-006
Payment & Shipping Terms:
Packaging Details: wooden case Delivery Time 7days
Delivery Time: 5-8 work days
Supply Ability: 200 Set/Sets per Month
Contact Now
Detailed Product Description
FM Function:: 1 ~ 600Hz Max Testing Load:: 0~100(Kg)
Sweep Function:: Any Adjustment 1 ~ 600Hz Vibration Table Size: 50×1×50cm (L*H*W)
Table Size: Vertical 50×20×50cm (L*H*W) Maximun Acceleration: 0~20g
Amplitude(mmp-p): 0~5mm Supply Voltage (V): 220±20%
High Light:

packaging testing instruments

,

compression test equipment

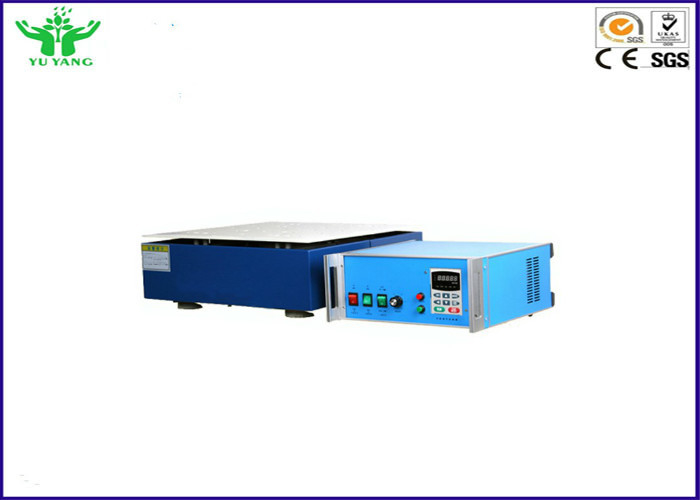

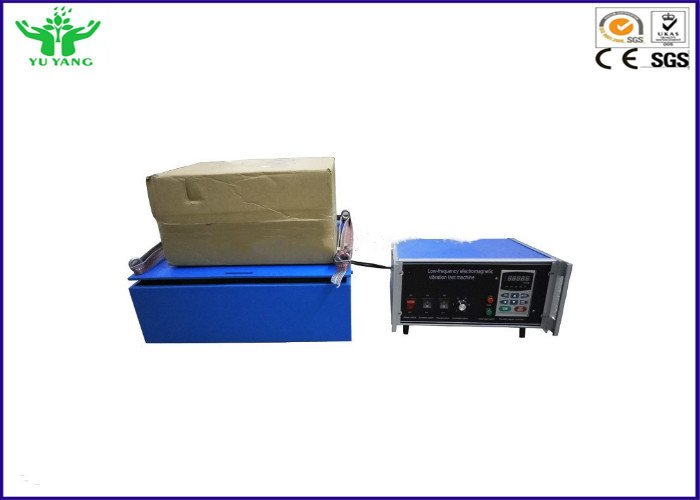

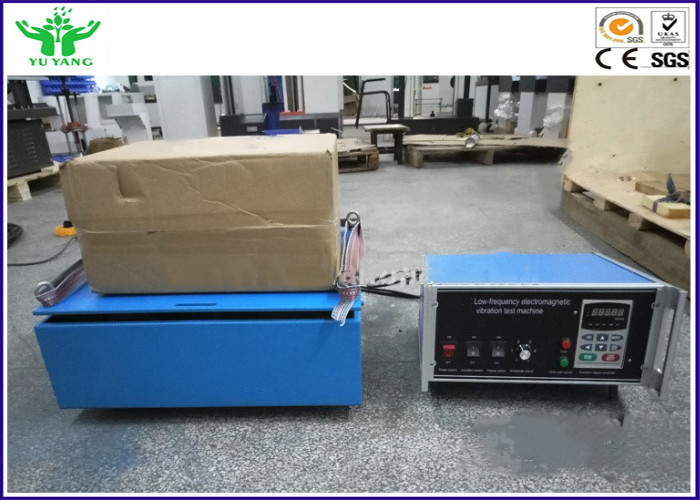

Electronics Package Low Frequecy Transportation Simulation Vibration Test Machine 0~100Kg



Product Description:





Name Electronics Package Low Frequecy Transportation Simulation Vibration Test Machine 0~100Kg
Vibration table size 50×1×50cm (L*H*W)
Table size Vertical 50×20×50cm (L*H*W)
Vibration direction Vertical
Max testing load 0~100(Kg)
FM function(1~400HZ)

either a frequency in the frequency range must be (maximum

acceleration / 20g maximum amplitude / 5mm)

Sweep function(1~400HZ)

(up frequency / down frequency / time range) can be swept back

and forth by setting arbitrarily standard

Programmable Function

(1~400HZ)

1 ~ 15 of each segment can be arbitrarily set (frequency / time)

can be recycled

Harmonic function(1~400HZ)

1 ~ 15 multiply increase a. low to highfrequency b. high to

low frequency c.low to high and then to low frequency / can

be recycled

Logarithmic function(1~400HZ) 3 kinds of model number / can be recycled
Vibration Machine frequency(KW) 1.5
amplitude(mmp-p) 0~5mm
Maximun Acceleration 0~20g
Vibration wave Sine wave (half-wave / full wave)
Time control Can be installed at any time (seconds)
Supply voltage (V) 220±20%
Maximum current(A) 7

Full-featured computer-controlled

(need to purchase)

It need to buy a adapter if want to control, storage, recording

and print by computer.

Precision Frequency can display to the 0.01Hz, precision 0.1Hz

Shows the acceleration amplitude

(optional)

If you want to know the value of amplitude, acceleration,

maximum acceleration, the exact figure need to purchase this

measuring instrument



Note: 1g = 9.8m/s2 acceleration (unit g) = 0.002 * f2 (frequency units HZ) * D (amplitude units mmp-p)



Equipment summary:



Electronics package low frequecy transportation simulation vibration test machine is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other

industry research, development, quality control and manufacturing. quality control inspection and

production line, assembly line. It is more suitable for quality inspection of finished product for improving

product quality.



Main functions:



Sine wave (half-wave / full wave), FM, sweep, programmable, frequency-doubling of the number, amplitude, maximum acceleration, time control, 485 Tong Xun interface, simple

set acceleration, simple fixed amplitude



Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine 0Electronics  Package Testing Equipment / Low Frequecy Transportation Simulation Vibration Test Machine 1
