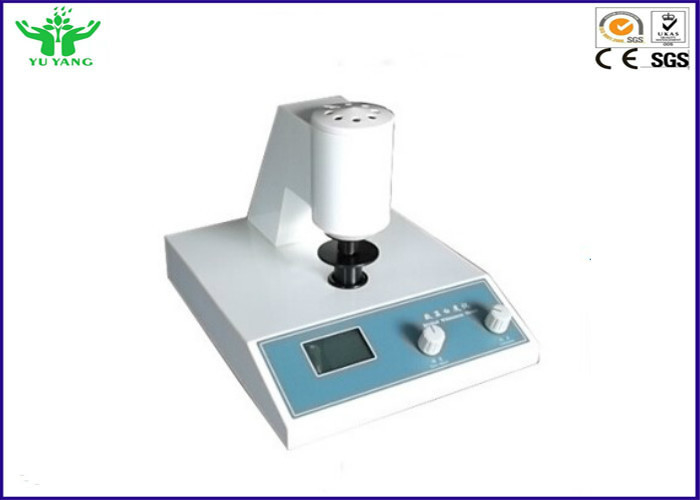

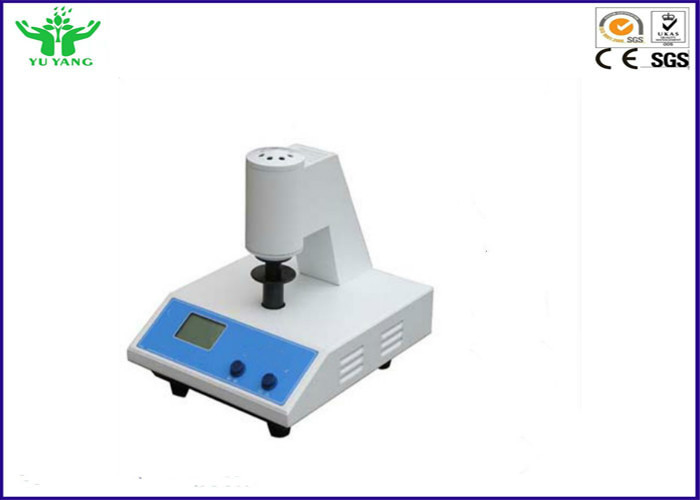

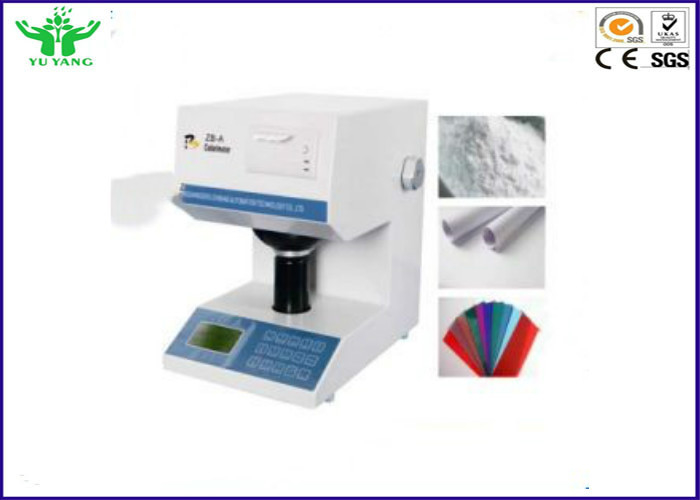

LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199

LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199

  • LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199
  • LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199
  • LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199
  • LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199
LCD Electronic Digital Package Testing Equipment / Plastic Film Paper Brightness Whiteness Opacity Tester 0-199
Product Details:
Place of Origin: china
Brand Name: YUYANG
Certification: JJG512-87, GB2913, GB5950,
Model Number: YYP-011
Payment & Shipping Terms:
Packaging Details: Strong Wooden Case
Delivery Time: 5-8 work days
Supply Ability: 150 Set Per Month
Contact Now
Detailed Product Description
Show Drift:: ≤0.5% Power Source:: AC220V/ 50Hz 35W
Zero Draft:: ≤ ± 0.1 Repeatability:: <= 0.2
External Dimension:: 325 Times 265 Times 280mm Measuring Condition:: 45/0
Calibrate:: φ 30 Basic Deviation:: ≤ ± 1
Measuring Range:: 0-199 Indication Error:: ≤1.0%
High Light:

vibration testing equipment

,

compression test equipment



LCD Electronic Digital Plastic Film Paper Brightness Whiteness Opacity Tester 0-199



Product Description:



Electronic Digital Plastic Film Paper Brightness Whiteness Opacity Tester is mainly applied to measure the non-colored surface of a flat object or white powder, can be accurately drawn with the visual. It is in full accordance with international standards such as ISO 2469 requirements and relevant national standards, industry standards to design formed. With 45 / O optical measurement system compared to similar devices, with lines from the sample surface caused by measuring reflection characteristics influence the direction of the advantages. Determination of the scattering coefficient of paper whiteness and the optical absorption coefficient.





Main function:



1, apparatus of the spectrum condition, by the strict integral filter match is made.
2, apparatus, controlled by micro-computing technology and automatic data processing, and can add the printer.
3, apparatus with a back-up electrical, data on the frequent power failure or shutdown will not be lost.
4, apparatus, switching power, high efficiency, small size, light weight, strong anti-interference, power supply for wide range of advantages.
5, instrument data can be set from the touch-type keyboard.
6, the instrument measurement data directly from the LED display shows measurement results.
7, measured ISO brightness (ie R457 Blu-ray brightness), fluorescent whitening on the samples can be measured by fluorescent emission of fluorescence brightness.
8, Determination of transparency (T) and the brightness of the object stimulus (V10).
9, determination of opacity (0).





To meet the standard:



1, in line with ISO2469 international standard d / o lighting observation geometry, the integrating sphere

diameter of 150mm, test hole diameter 32mm, with shiny absorber to eliminate specular reflection light of the

sample.
2, R457 optical system relative spectral power distribution: the main peak wavelength of 457 nm, half-wave width of 44nm, RY optical system consistent with CIE standard spectral power distribution of the Y10

stimulus conditions D65/100
3, apparatus, precision line JJG512-87 "White meter," a product of white meter's technical requirements.
4, consistent with JJG (light) 48-90 "reflection photometer," the requirements.



Applicable industry:

Electronic Digital Plastic Film Paper Brightness Whiteness Opacity Tester can be widely used in paper, cardboard, pulp, silk, textile, paint, cotton fiber, ceramic materials, porcelain clay, household chemicals, flour, starch, plastic raw materials and other objects of the brightness and other optical properties determined.



Parameters:



Measuring range 0-199
Measuring condition 45/0
Illuminant D65
Display method LCD
Whitness Mean R457 blue ray whiteness
Minimum Readout 0.1
Calibrate φ 30
Zero draft ≤ ± 0.1
Basic deviation ≤ ± 1
Repeatability ≤ 0.2
Power supply AC220V/ 50Hz 35w
External Dimension 325 times 265 times 280mm
Characteristic Universal-type, high precision, strong function, good stability
Standards JJG512-87, GB2913, GB5950,
