Place of Origin:
China
Brand Name:
YUYANG
Certification:
Tappi-T472, T808, T810, T811, T818, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS
Model Number:
YYP-020

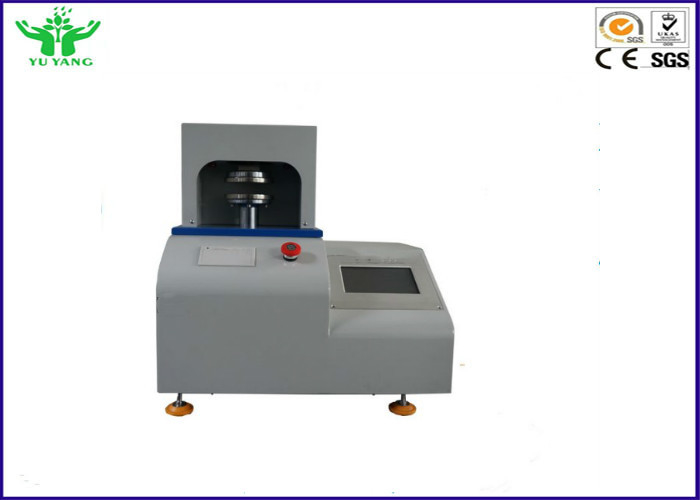

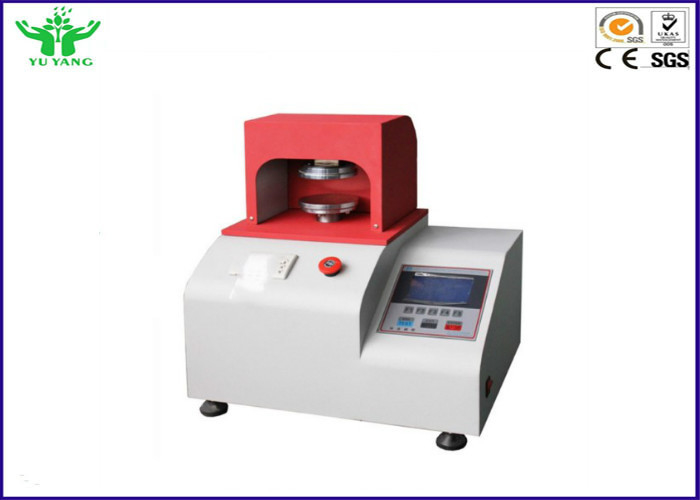

12.7 mm/Min Corrugated Paper Edge Compression / crush Testing Equipment 500mm
Product Description:
Corrugated Paper Edge Compression / crush Testing Equipment , Computer servo multi-function carton tension and compression strength tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
The main technical parameters:
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/100,000 |
| Precision | < 0.5% |
| Display Mode | LCD |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 80 mm |
| Pplaten Parallelism | ±0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 570×415×730 mm |
| Weight | Approx. 48 kg |
| Power | AC220V, 1.5A |
Standard:
TAPPI-T472; T808, T810, T811, T818, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS
