| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc. |
| Model Number: | YYL-002 |
| Packaging Details: | Standard exporting plywood case |
|---|---|
| Delivery Time: | 5-8 work days |
| Supply Ability: | 300 Set/Sets per Month |
| Load Resolution:: | 1/300000 | Load Accuracy: | 1 Class/ 0.5 Class Optional |
|---|---|---|---|
| Load Range: | 2%-100% Of Full Scale /0.4%-100% Optional | Deformation Test Range: | 2%~100% |
| Deformation Accuracy: | ≤±1% | Disp. Resolution: | 0.04um |
| High Light: | textile lab equipment,universal tensile machine |
||

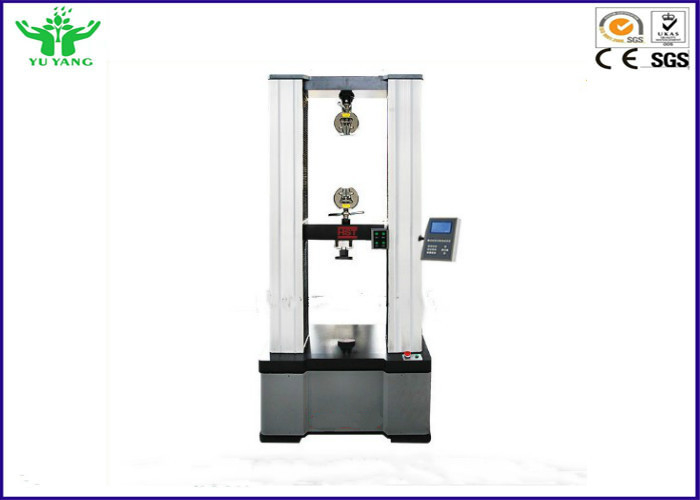

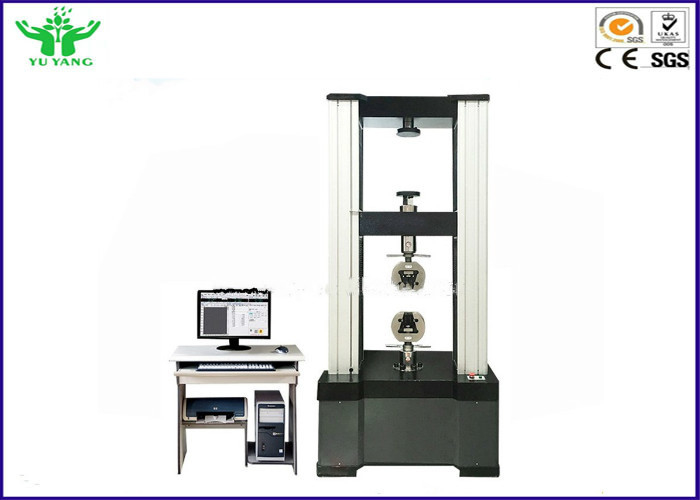

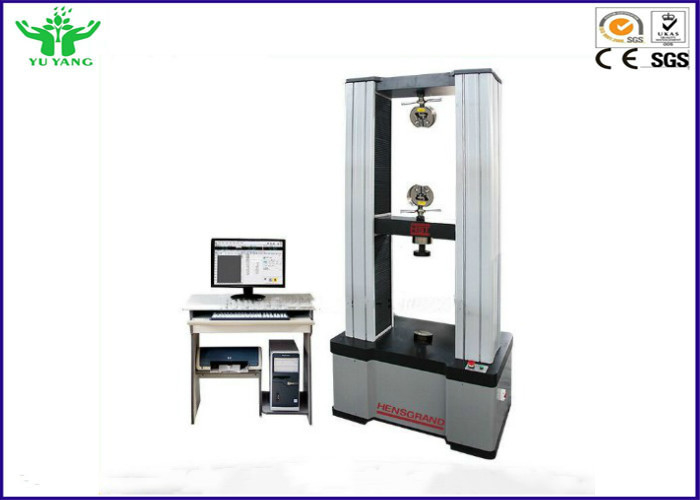

100kn/20ton Metal Matrix Composites Electronic Universal Tensile Testing Machine ≤±1%
Metal Matrix Composites Electronic Universal Tensile Testing Machine are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Specifications:
| Model | YYL-1/2//3/5 | YYL-10/20//30/50 | YYL-100 | YYL-200/ 300 | YYL-500/ 600 | |||||||||||
| Max. Load | 1kN | 2kN | 3kN | 5kN | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN | 500kN | 600kN | |||
| Structure | Four-column Floor Type (upper is compression and lower is tensile) | |||||||||||||||
| Control model | Computer control |
Constant stress, constant strain,constant displacement closedloop control System |
||||||||||||||
| Load accuracy | 1 class/ 0.5 class optional | |||||||||||||||
| Load range | 2%-100% of full scale /0.4%-100% optional | |||||||||||||||
| Load resolution | 1/300000 | |||||||||||||||
| Deformation test range | 2%~100% | |||||||||||||||
| Deformation accuracy | ≤±1% | |||||||||||||||
| Displacement accuracy | ≤±1% | |||||||||||||||
| Disp. resolution | 0.04um | |||||||||||||||
| Displacement speed | 0.05-500mm/min | 0.05-200mm/min | ||||||||||||||
| Tensile space | 700mm | 600mm | 550mm | 700mm | ||||||||||||
| Compression space | 700mm | 600mm | 550mm | 700mm | ||||||||||||
| Test width | 400mm | 450mm | 600mm | 650mm | ||||||||||||

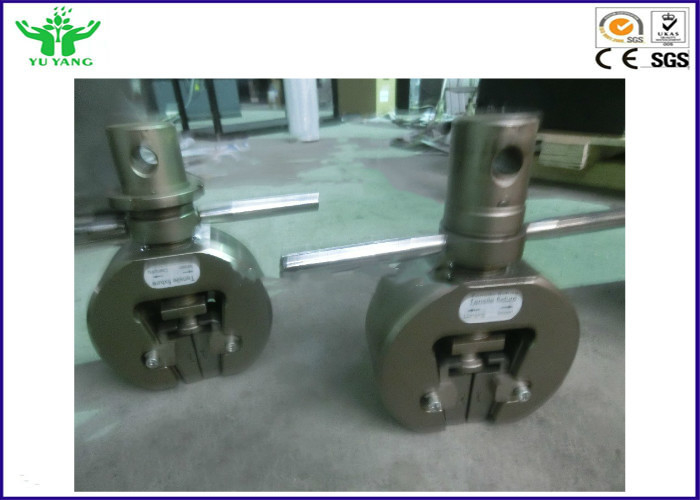

| Clamp way | Manual clamp / Hydraulic clamp (optional) |
Hydraulic clamp |
||||||||||||||
| Load Cell Configuration |
One(max load), more load cells can be added according to customer requirement |
|||||||||||||||
| Extend configuration |
Large deformation extensometer, high or low temperature teste chamber, high temperature oven |
|||||||||||||||
| Power supply | AC220/380V±10%,50Hz (can be customized) | |||||||||||||||
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
