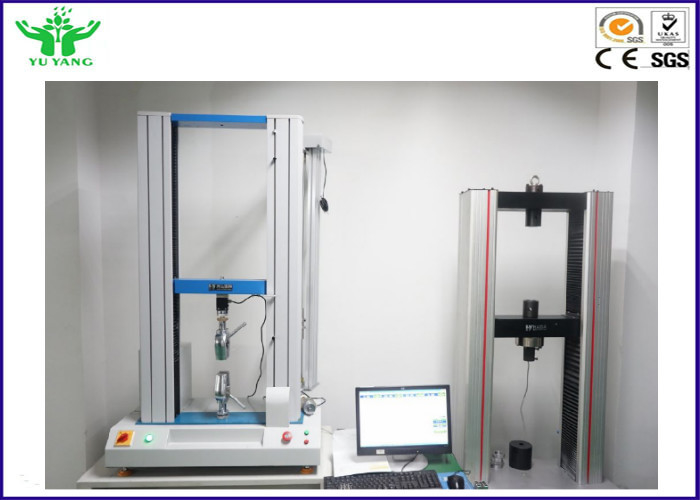

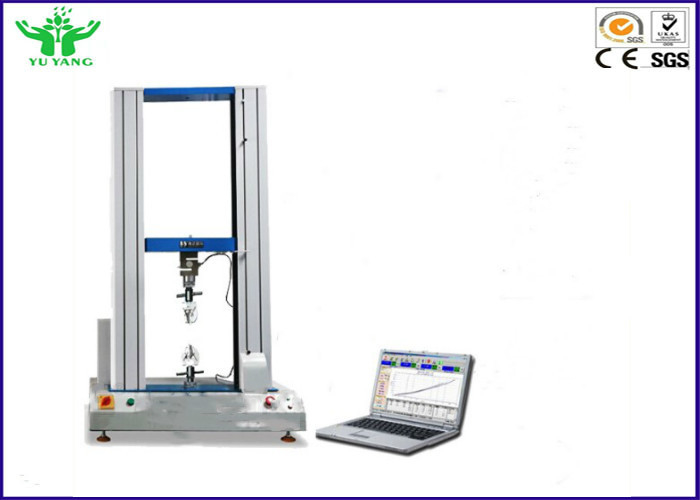

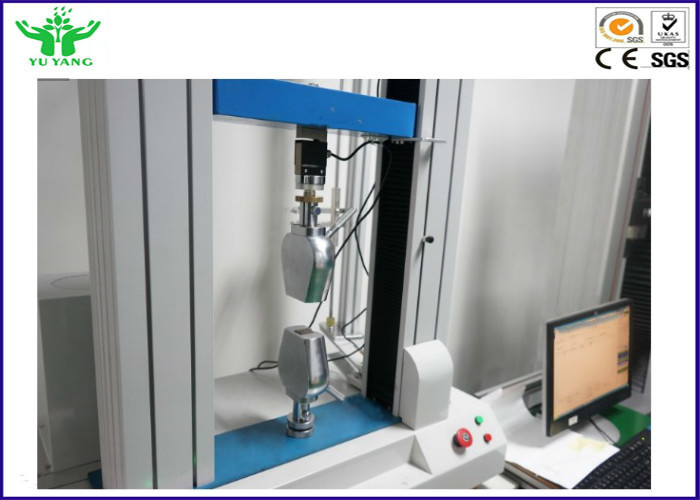

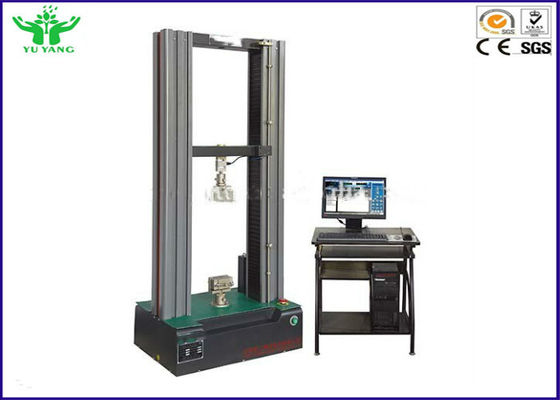

Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class

Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class

Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class
Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class
Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903\GB/T16491\GB/T1040\GB/T8808\GB13022\GB/T
Model Number: YYL-004
Payment & Shipping Terms:
Packaging Details: export wooden caton
Delivery Time: 5-8 work days
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Test Speed:: 0.1-500mm/Min (Adjustable ) Motor:: Panasonic Servo Motor
Power:: 1phase, AC220V, 50Hz Resolution:: 1/250, 000
Load Accuracy:: Within 0.5% Max. Test Force:: 300 KN
Accuracy Class:: 0.5 Class Measurement Range Of Force Value: 2%-100% FS
Control:: Computer Control
High Light:

textile lab equipment

,

universal tensile machine



0.1-500mm/Min Servo Motor Universal steel wire Tensile Testing Machine 0.5 class



Product Description:



This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards. The tensile testing machine also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.





Features:



Name 0.1-500mm/Min Servo Motor Universal steel wire Tensile Testing Machine 0.5 class
Model YYL-01L, 02L, 05L, 1L, 2L, 5L, 10, 20, 30, 50, YYL-100, YYL-200, 300
Max. test force 300 kN
accuracy class 0.5class
measurement range of force value 2%-100% FS
test force accuracy ±1%
displacement measurement micrometer gauge
speed of test 0.01-500 mm/min
effective testing width 400 mm, 550mm
clamp configuration

1, Equipped fixture can be based on users' needs or customer made.

2, Alternative transducer is available to extend the measuring range.

3, The tensile space can be heighten on users' requirement.



dimension 650*330*1730mm, 760*460*1900mm, 1050*750*2100mm, 1050*900*2400mm





Standard:



GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC, ASTM D903GB/T16491GB/T1040GB/T8808GB13022GB/T



Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class 0Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class 1Universal Steel Wire Tensile Testing Machine With Servo Motor 0.5 class 2
