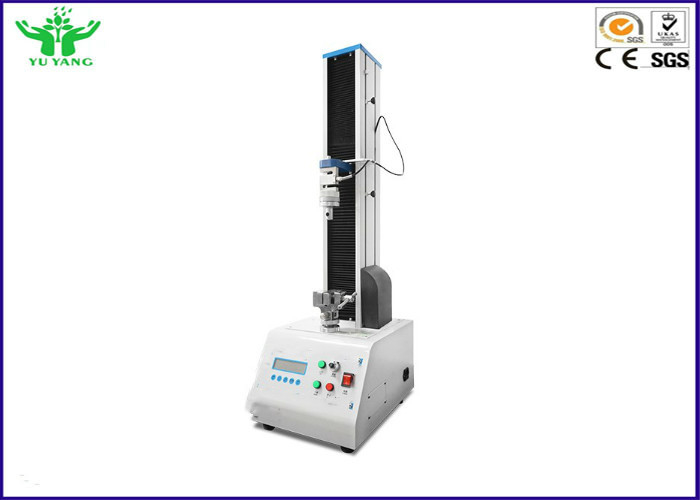

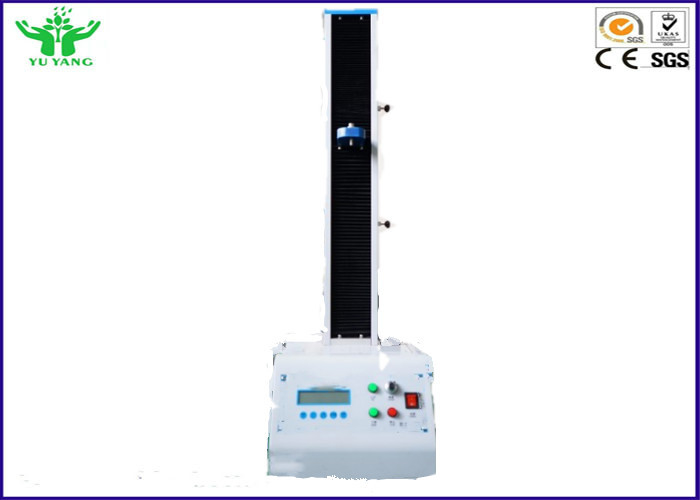

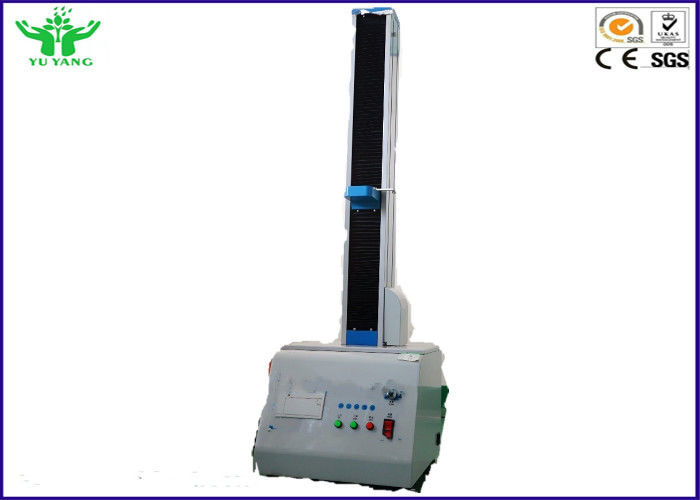

Button Compression Tensile Testing Machine Economical Material 1000mm​ 20 - 300mm/Min

Button Compression Tensile Testing Machine Economical Material 1000mm​ 20 - 300mm/Min

textile lab equipment

universal tensile machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM D903\Cns-11888\JIS K6854, Pstc-7

Model Number:

YYL-006

Contact Us
Request A Quote
Product Details
Motor::
Panasonic Servo Motor
Test Speed::
20-300mm/min (adjustable )
Resolution::
1/100,000
Max. Stroke::
1000mm (including Fixture)
Load Accuracy::
Within0.5%
Accuracy::
1%±0.5%
Unit::
G,KG,N,LB
Display Device::
Pointer Type & LCD Display
Highlight:

textile lab equipment

,

universal tensile machine

Payment & Shipping Terms
Packaging Details
Strong wooden case
Delivery Time
8-10 work days
Supply Ability
200 Set/Sets per Month
Product Description





1000mm​ Economical Material Button Compression Tensile Testing Machine 20-300mm/Min





Product Description:



Economical Material Button Compression Tensile Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Servo Used Flex Test Meter used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect. of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.





Features:


1) Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
2) Using a single-screen operation; do not need to switch the screen;
3) With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4) The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5) Tensile strength test, tear resistance test, peel strength test, bend strength test, shear force test
(with different fixtures according to national and international standards customer required.)





Safety Device:


1. Stroke protection: upper and low limit protection, prevent over preset
2. Force protection: system setting
3. Emergency stop device: Handling emergencies.





Main Technical Parameters:



Items

Specification



Sensor LOAD CELL
Capacity 2kg,50kg (Push-pull gauge optional)
Unit switchover kg, N
Display device Pointer type & LCD display
Resolution 1/10,000
Accuracy ±1%
Max. stroke 650mm (include the fixture)
Test speed 20-300mm/min (adjusted by the knob )
power AC220V 50HZ
Weight Approx.30kg
Accessories One set tensile clamp,one piece English software CD, one piece operation video CD, one piece English user manual





Standard:



ASTM D903Cns-11888JIS K6854, Pstc-7



Button Compression Tensile Testing Machine Economical Material 1000mm​ 20 - 300mm/Min 0Button Compression Tensile Testing Machine Economical Material 1000mm​ 20 - 300mm/Min 1
