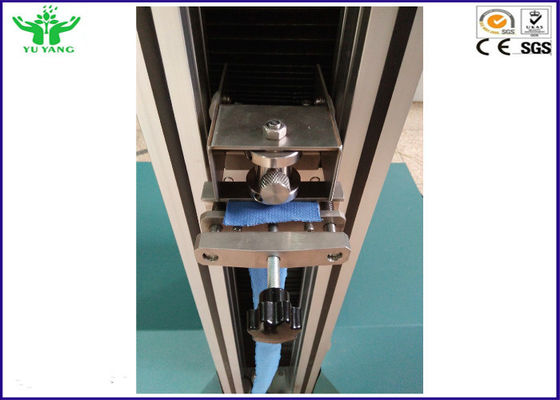

Electronic Socks Tensile / Digital Socks Tensile Testing Instrument With LCD Controller
Product Description:
The Electronic Multifunction Socks Tensile / Digital Socks Tensile Instrument is mainly used to determine the straight extension and transverse extension of stockings, swimwear, pantyhose, belly and knitted pants.
The main parameters:
1. Tensile speed: 20mm / s-250mm / s Promise adjustable;
2. Test movement: 100-3000mm; (can be customized to increase to 3400mm);
3. Rated tension, 0.1N-200N adjustable range, the test tensile force can be set according to the actual test requirements;
4. Side set LCD controller, set the tensile speed, rated tension, stretch holding time and other test conditions parameters, real-time display test test results;
5. Configuration pre-tensioning weight, manual fixture;
6. Test can be completed to test the sample elongation;
7. Structure size: 1000mm *700mm*3500mm;
8. Weight: 120kg.
Model Number: | YYL-011 |
Power: | Electronic |
Structure size: | 1000mm *700mm*3500mm |
Tensile speed: | 20mm / s-250mm / s Promise adjustable |
Test movement: | 100-3000mm |
Weight: | 120kg. |
Main Features:
1, the control panel location of about 100cm high, ergonomic and practical needs, easy to operate;
2, vertical stretching structure, easy to sample installation and testing;
3, vertical vertical structure, horizontal footprint is small;
4, Siemens PLC control system, precise control, stable and reliable.
Performance Characteristics:
The instrument has built-in constant tensile test mode, fixed tensile tensile test mode, satisfying different test requirements such as fixed elongation force, constant elongation rate and constant timing elongation. The system has a built-in force elongation, , Elastic recovery, plastic deformation and other test options to facilitate the user to choose the test method.
Standards:
FZ / T 70006, FZ / T 73001, FZ / T 73011, FZ / T 73013, FZ / T 73029, FZ / T 73030
