DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM D882, ASTM F1306, ASTM D1938, ASTM D2732, ASTM D1709, ISO 7765-1, ASTM D1894, ASTM D1424, ASTM D1922, ISO 1974, |
| Model Number: | YYL-012 |
| Packaging Details: | Strong Wooden Case |
|---|---|
| Delivery Time: | 7-10 work days |
| Supply Ability: | 200 Sets Per Month |
| Accuracy:: | ±0.5% | Test Speed:: | 0-500mm/Min(Adjustable ) |
|---|---|---|---|
| Max. Stroke:: | 1200mm (Excluding Fixture) | Resolution:: | 1/250, 000 |
| Elongation Accuracy:: | 0.001mm | Power:: | 1phase, AC220V, 50Hz |
| Weight:: | 0-100Kg | Force Reading:: | Kgf, Ibf, N, Kn, T Etc |
| High Light: | textile lab equipment,universal tensile machine |
||

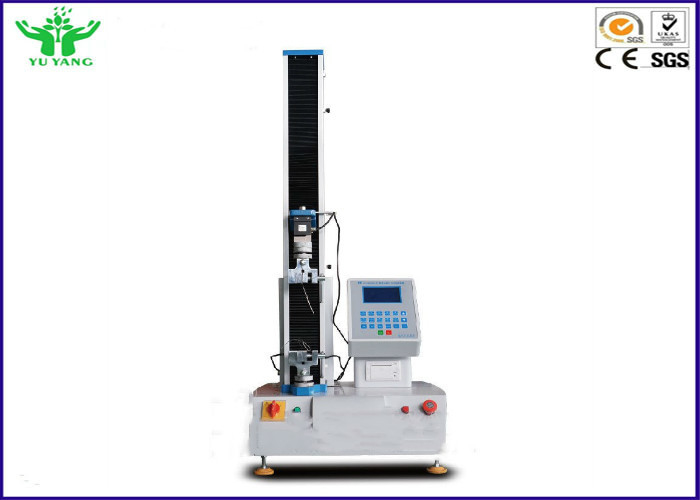

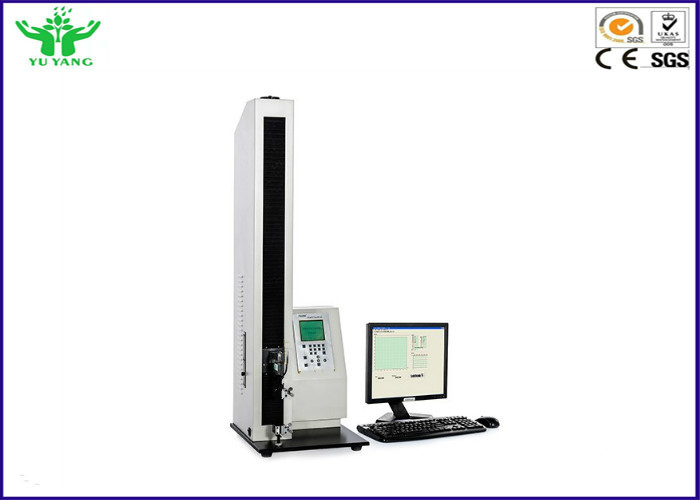

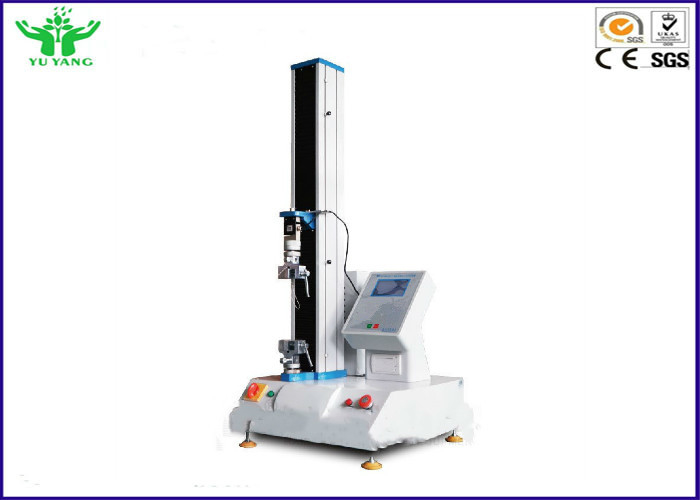

Product Description:
Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Features:
| Item | Description |
| Frame capacity | 500kg |
| Load cell brand | Germany brand load cell for high accuracy 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | LCD with build-in printer /PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Stanard:
Film/Plastic Film:ASTM D882: Tensile TestASTM F1306: Puncture TestASTM D1938: Trouser Tear TestASTM D2732: Thermal Shrinkage TestASTM D1709, ISO 7765-1: Free-Falling Dart MethodASTM D1894: Static and Kinetic Coefficients of FrictionASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
Contact Person: Mele Pu
Tel: +8618476767313
