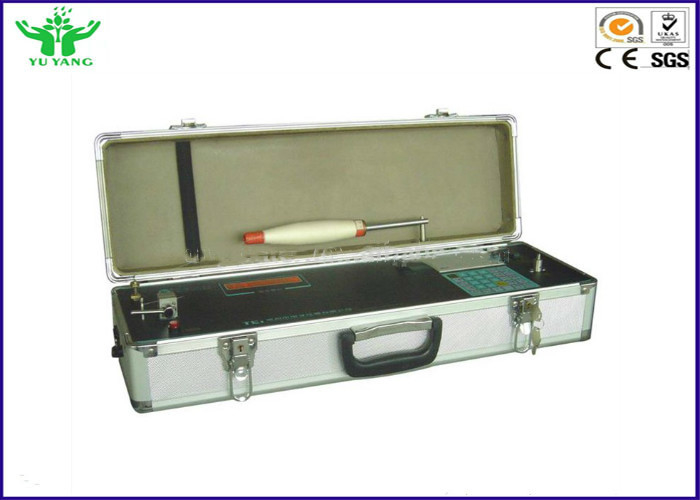

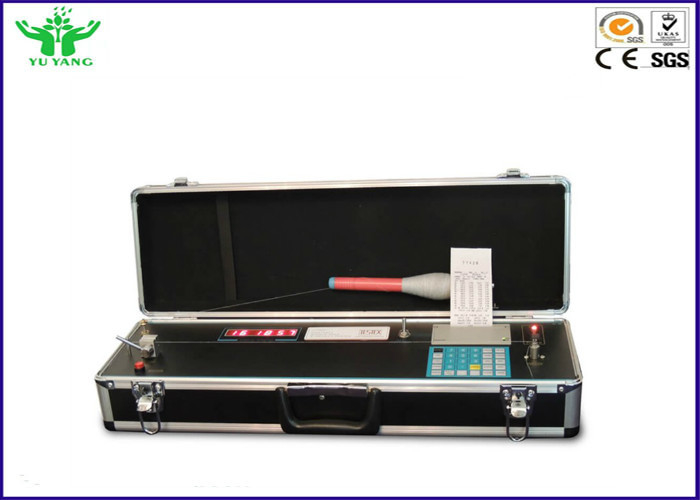

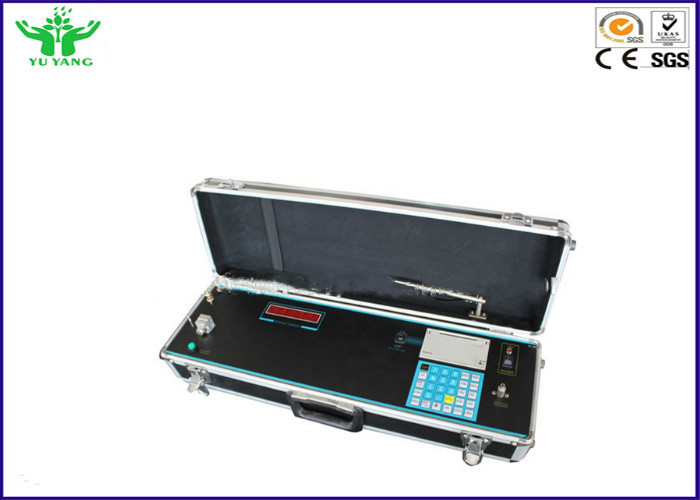

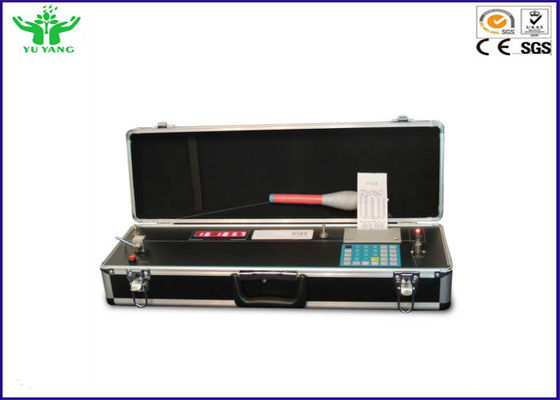

3000cN max Portable Single Yarn Tensile Strength Testing Machine ≤100times
Portable Single Yarn Tensile Strength Testing Machine is used to determine the breaking load and extension of single yarns and threads for small scale laboratory use or field test.
1. Portable type, easy and fast to operate, easy to carry
2. With micro-computer to printout test data
3. Equipped with calibration weight to calibrate the equipment when necessary, more accurate
Main Parameteres:
| Model | YYL-014 | |
| Load range | 3000cN max | |
| Load error | ≤±1% of display value | |
| Gauge length | 500mm | |
| Test times for each group | ≤100times | |
| Data output | LED display or print out | |
| Linear range | 1~599.9tex | |
| Power supply |
|
|
| Dimensions | 625mm×190mm×140mm (L×W×H) | |
| Weight | 7.6kg |
Standard:
ISO2062, GB/T 3916
