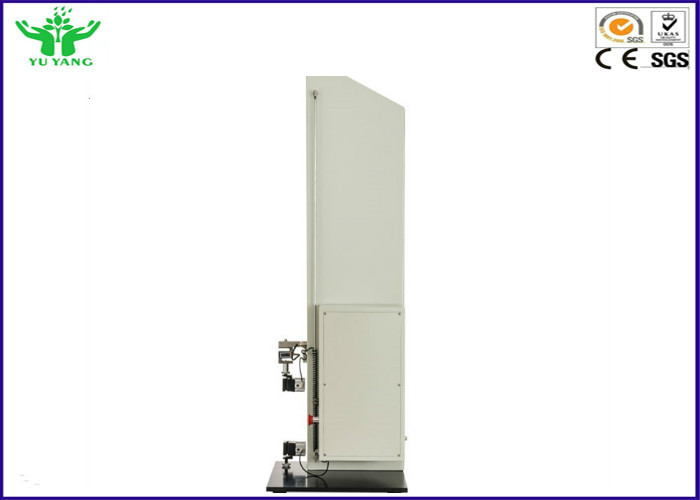

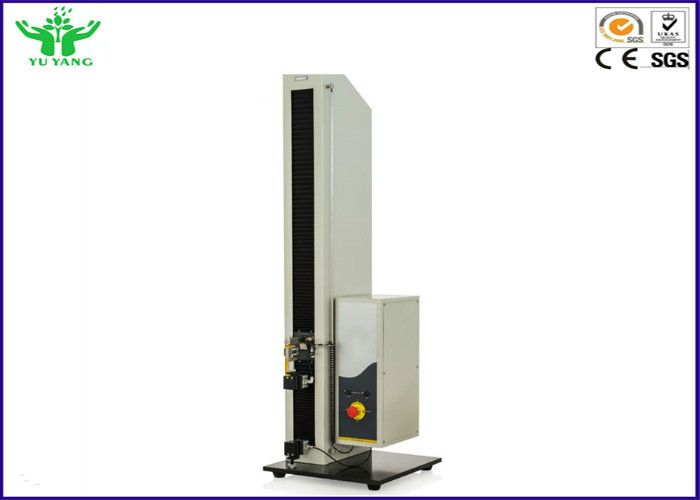

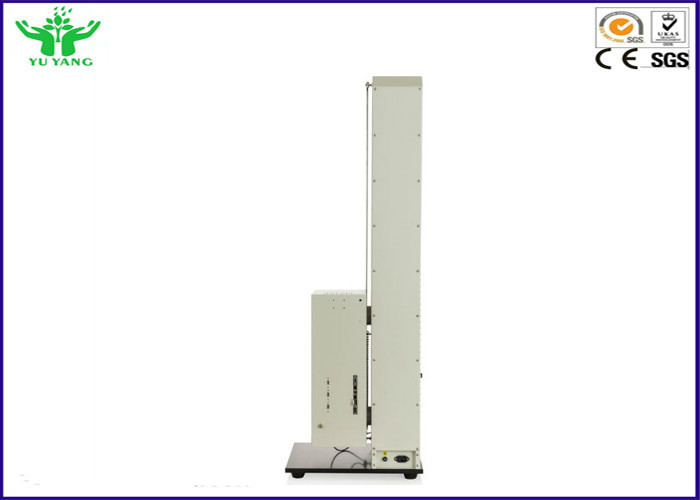

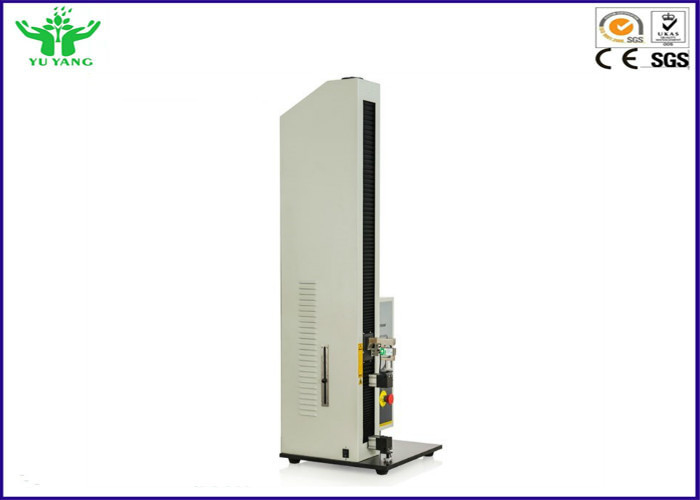

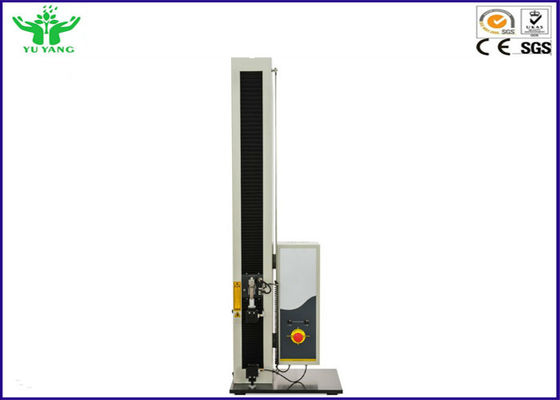

Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min

Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min

  • Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
  • Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
  • Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
  • Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
  • Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
Vertical Manual Tensile Testing Machine High Speed 50 - 300mm / min
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T16491-1996, GB/T 4850-2002, GB8808, GB/T 1040.3-2006, GB/T17200, GB/T2790, GB/T2791, GB/T2792, QB/T2358
Model Number: YYL-016
Payment & Shipping Terms:
Packaging Details: wooden case
Delivery Time: 5-8 work days
Supply Ability: 200 Set/Sets per Month
Contact Now
Detailed Product Description
Test Accuracy:: 1% Of FS Accurate Grade:: 1 % /0.5 %
Range Of Testing Speed:: 0.01~300mm/min Max Load:: 0~2KN
Stroke:: 600mm Resolution: 1 / 50000
Measurement System: Load Cell + HZ-2000 Accuracy Load Of Measurement: The Load Cell + HZ-2000 Screen ± 0.5% (full Range Of 5% -100%)
High Light:

textile lab equipment

,

universal tensile machine



1% of FS 50-300mm / min Manual Tensile Testing Machine 200times/sec



Product Description:



 Manual Tensile Testing Machine is widely used in controlling the quality or applied to test the flexible material with large deformation; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.





Main Feature:



Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.



  • 1% of full scale effectively ensures the accuracy of test results
  • 2 independent test modes are available, including tensile strength and peeling force to meet the distinct requirements of users
  • 3 kinds of testing data provided for each test i.e. Maximum Value, Minimum Value and Average Value. Group data analysis is also available
  • Elongation rate can be easily obtained by the precise ruler
  • Different test range of load cells and 7 distinct test speeds to meet different test requirements



Main Parameters:



Maximum load 50N
Capacity choice 200N, 500N, 1KN or less than can be self-selected
Unit KG,N,LB, TON can be exchanged.
Measurement system Load cell + HZ-2000
Accuracy load of measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Resolution 1 / 50000

Maximum test stoke

(excluding fixtures)

About 500mm (excluding gripper, special testing space can be customized

according to customer needs)

Test speed

50-300mm / min with stepless speed and 5 fixed-speed (special testing

speed can also be customized according to customer needs)

Data sampling frequency 200times/sec
Display dark blue LCD display, membrane touch keys, with the following functions
Machine size 45x58x135cm (length*width*height)
Weight 75KG
Ratio of Breakpoint

from 0 ~ 99%, which the user can set according to different materials to

stop the machine, realizing stop machine at any position.

Safety The system would shut down if overload or over-trip.
Shape column shell is made of aluminum material.
Power system AC Motor
Power 120W(depending on different demand of force using different motor)
Power supply 1Φ, 220V, 15A
Max load: 0~2KN





Standard:



GB/T16491-1996, GB/T 4850-2002, GB8808, GB/T 1040.3-2006, GB/T17200, GB/T2790, GB/T2791, GB/T2792, QB/T2358
