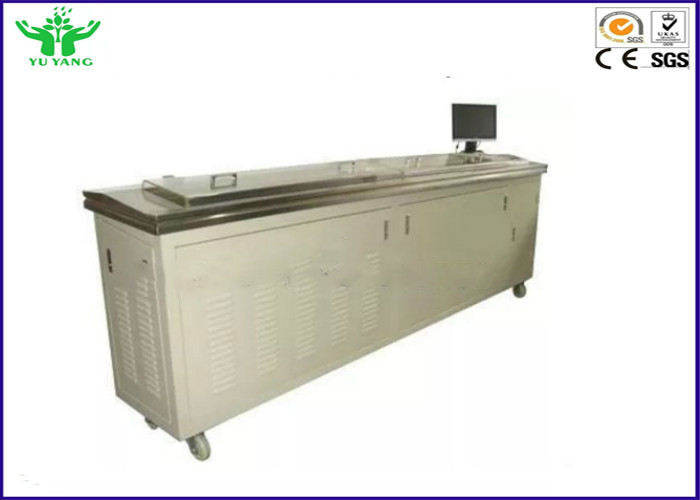

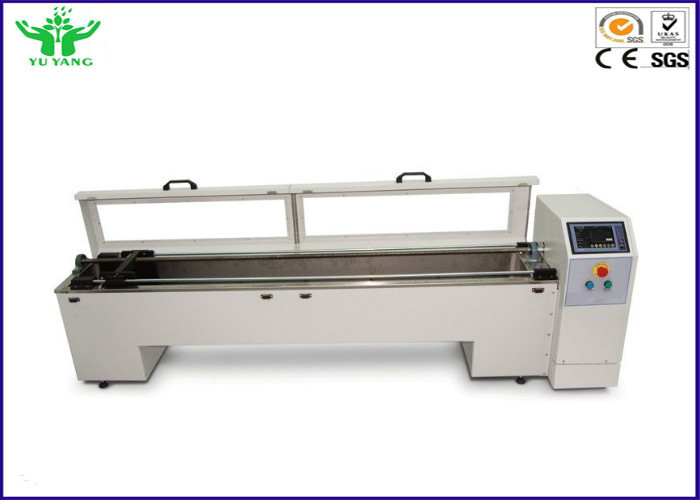

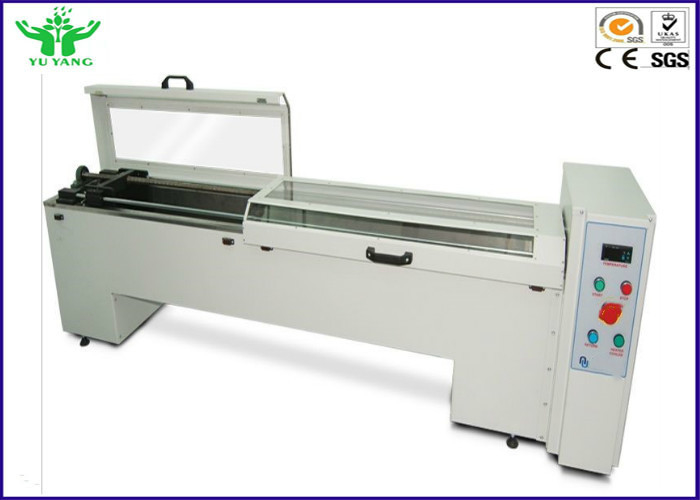

10~50 mm/min Asphalt Ductility Tensile Testing Machine 0~300 N Textile Lab Equipment

Name: 10~50 mm/min Asphalt Ductility Tensile Testing Machine 0~300 N Textile Lab Equipment
Brand: YUYANG
SKU: YYL-018
Price: 1 USD
Availability: InStock
Rating: 4.9 (125 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	GB/T 4508-2010, T0602-2011, JTG E20-2011, JTJ052, ASTM D113
Model Number:	YYL-018

Payment & Shipping Terms:

Packaging Details:	Wooden Case
Delivery Time:	5-8 work days
Supply Ability:	100 Piece/Pieces per Month

Contact Now

Detailed Product Description

Measurement Range::	2.0 M (±10mm)	Heating Type::	By An Electric Heater
Heating Power::	3200 W	Temperature Controlling Range::	5~50°C; Digitally Displayed
Temperature Controlling Accuracy::	±0.1°C	Dragging Speed::	Two Grades, 10~50 Mm/min,
Measurement Accuracy::	±1 Mm	Dragging Force Measurement Range::	0~300 N
Dragging Force Accuracy::	±1N;	Display Resolution::	0.1 N
Ambient Temperature::	-10~+35°C	Relative Humidity::	≤85%
High Light:	textile lab equipment , universal tensile machine

10~50 mm/min Asphalt Ductility Tensile Testing Machine 0~300 N

Product Description:

Asphalt Ductility Tensile Testing Machine is suitable to determine the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and at a specified temperature.

Main Technical Features:

1. It adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. The sample can be easily installed in and the maximun measurement distance can reach 1.5m.

2. It adopts high-accuracy digital temperature controller.The resolution is 0.01℃ and accuracy is 0.1℃.

3. It adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform.

4. Three specimens. Suitable to the test standard for asphalt duclility.

5. The specimen can return and positioning automatically after the determination.

6. It adopts membrane panel and LCD temperature controller. Water-proof, durable and easy to clean.

Main parameters:

Power supply: AC 220 V (-5%~+10%), 50 Hz
Measurement range: 2.0 m (±10mm)
Heating type: by an electric heater
Heating power: 3200 W
Bath circulation: by a magnetic circulation pump
Temperature controlling range: 5~50°C; digitally displayed
Temperature controlling accuracy: ±0.1°C
Dragging speed: two grades, 10~50 mm/min,
frequency conversion stepless adjustable
Measurement accuracy: ±1 mm
Ductility display: Controlled by microprocessor;
digitally displayed after data processing
Dragging force measurement range: 0~300 N
Dragging force accuracy: ±1N;
Display resolution: 0.1 N
Data output: 1) Communicate with a computer through a RS232 port
2) Printed out by a micro-printer
Refrigeration type: by a compressor; input power is 800 W
Ambient temperature: -10~+35°C
Relative humidity: ≤85%

Power supply	AC220V(-5%~+10%),50Hz
Measurement range	2.0m(±10mm)
Heating mode	Electric heater
Heating power	3200W
Liquid circulation	By magnet circulation pump
Temperature control range	(5~50)°C,adjustable. Resolution is 0.01℃
Temperature control accuracy	±0.1℃
Tensile speed	10mm/min and 50mm/min, two grades
Measurement accuracy	±1 mm
Ductility display	Digital display after data processed by a single chip machine
Refrigeration	Compressor 1.25P, input power is 950W
Ambient temperature	(-10~+35)℃
Relative humidity	≤85%
Maximum power consumption	4100W
Overall dimension	2365mm×520mm×1000mm

Standard:

GB/T 4508-2010, T0602-2011, JTG E20-2011, JTJ052, ASTM D113
