3.3 cbm High frequency vacuum lumber drying oven / Environmental Test Chamber 3-75kw
Product Description:

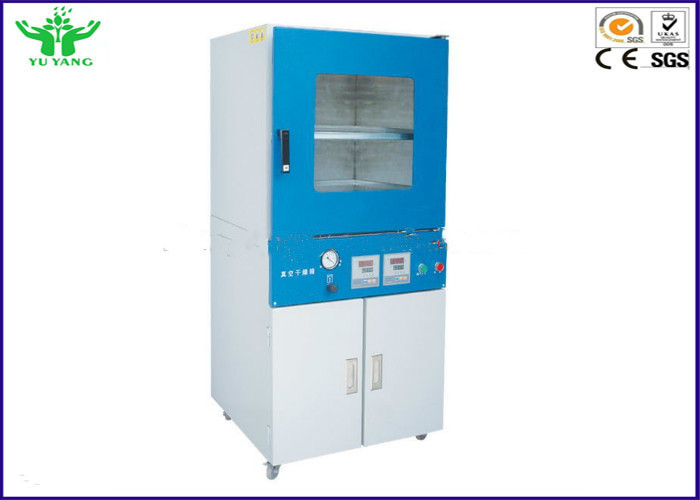

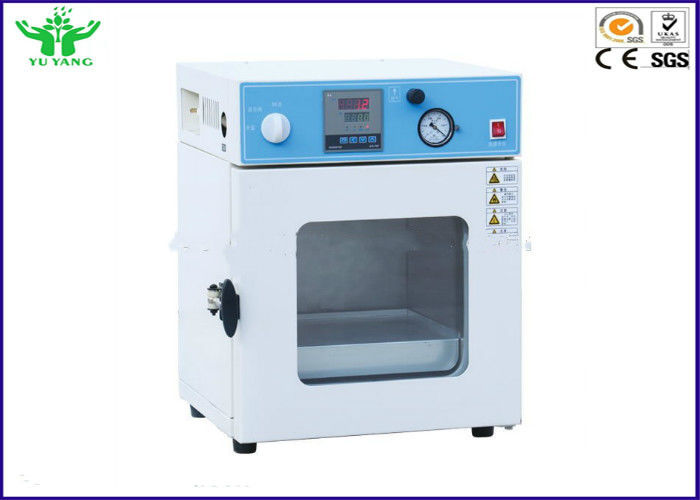

Vacuum Drying Oven:
| Model ( Stainless inner container ) | 6020AB | 6050AB | 6090AB | 6210AB |
| Model (General container) | 6020A | 6050A | ||
| Working voltage (V) | AC220V 50Hz | |||
| Range of temperature control (°C) | Room temperature +5-200°C | |||
| Wave degree of temperature (°C) | ±1 | |||
| Power (KW) | 0.3 | 1.4 | 1.4 | 2 |
| Vacuum degree (Pa) | less than 133 | |||
| Size of Working Room (mm)( H×W×D ) | 275*300*300 | 345*415*370 | 450*450*450 | 650*550*600 |
| Overall dimension (mm)( L×W×H ) | 655*480*510 | 770*530*590 | 700*640*1400 | 810*780*1720 |
Summary of use:
It applies in drying, sterilizing and heat treatment of articles under the relatively vacuum condition in laboratories of industrial mining enterprise, colleges and universities, scientific research institute and medicine and health units etc.
Characteristics:
1.The working room adopts high quality and imported stainless steel or cold-rolled steel plate with corrosion resistant. It is durable.
2.The closed door could be adjusted. The complete formed high temperature resistance silicon rubber door-sealing ring could guarantee the high vacuum degree.
3.Double-layer tempering bulletproof glass door is easy to observe the articles in the working room.
4.The rectangular working room makes full use of effective volume.
5.Microcomputer control DD (Digital display) instrument with functions of high precision on temperature control, over- temperature alarm and automatic cutout.

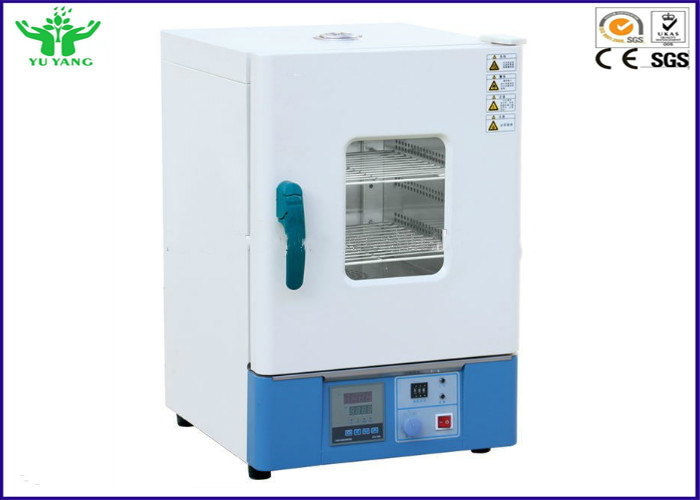

Other Models:Electric Thermostatic and Blast Drying Oven (250℃/300℃/500℃)
| Model ( Blaster ) | 101-0 | 101-1 | 101-2 | 101-3 | 101-4 | |
| Model (Thermostatic) | 202-0 | 202-1 | 202-2 | 202-3 |
202-00 |
|
| Working voltage (V) | AC220V 50Hz | AC380V 50Hz | AC220V 50Hz | |||
|
Range of temperature control |
Room temperature +10-250℃ | Room temperature +10-300℃ |
Room temperature +10-250℃ |
|||
|
Wave degree of temperature (℃) |
±1
|
|||||
| Power (KW) | 1.2 | 2 | 2.4 | 4 | 6 | 0.6 |
|
Volume(L) |
43 | 71 | 136 | 225 | 640 | 15 |
|
Size of Working Room (mm) |
350×350×350 | 450×450×350 | 550×550×450 | 750×600×500 | 1000×800×800 |
250×250×250 |
|
Overall dimension (mm) |
720*520*630 | 760*530*720 | 920*640*875 | 1030*710*1145 | 1230*1010*1259 |
510*420*470 |
Electro- thermostatic blast drying oven:
| Model ( Blaster ) | 101-5 | 101-6 | 101-7 | 101-8 | 101-9 | 101-10 |
| Working voltage (V) | AC380V 50Hz | |||||
| Range of temperature control (°C) | Room temperature +10-300°C | |||||
| Wave degree of temperature (°C) | ±1 | |||||
| Power (KW) | 12 | 15 | 36 | 48 | 60 | 74 |
|
Volume(L) |
1200 | 1800 | 7200 | 10000 | 15000 | 24000 |
| Uniformity degree of temperature | 3.5% | |||||
| Heating time (min) | ≤60 | |||||
