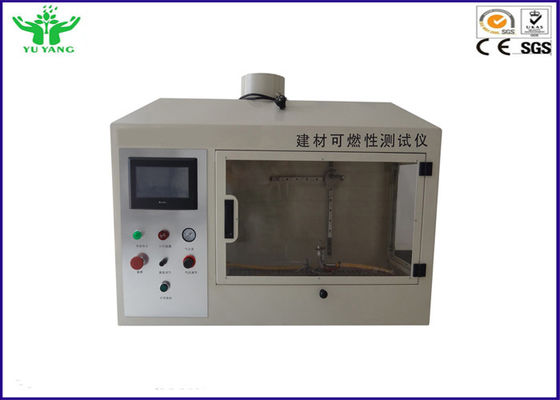

ISO 11925-2 Single Flame Source Test Apparatus
The Single Flame Source Test Apparatus is built in accordance with ISO 11925-2: Reaction to fire tests for building products - Part 2: Ignitability when subjected to direct impingement of flame. The ignitability apparatus is based on the German Kleinbrenner method for determining ignitability of building products in the vertical orientation,by direct small flame impingement under zero impressed irradiance
1, the chamber of single flame source test apparatus is painted,it looks beautiful.
2, The combustion chamber dimensions: length 700mm X width 400mm X high 600
3, The flame height of this ignitability tester can be adjusted, it can automatically ignite;
4, The flame burning application time and hold time can range from 0 to 99 minutes 99 seconds regulation;
5, Combustion angle: 0°(vertical), 45°
6, The burner of iso 11925-2 tester can be moved in a horizontal direction;
7, Glass doors for easy observation test;
8, All fixtures are made of stainless steel; beautiful and corrosion;
9, This ignitability test equipment is equipped with two types stainless steel sample holder,with flame height measuring;
10, High degree of test automation, test data accurate, easy to operate.
• Programmable Logic Controller (PLC) Control is adopted by this ignitability apparatus.
• Automatic timing, automatic detection of the flame, automatic ignition, ignition abnormal protection;
• This ignitability tester is designed with LCD touch screen display;
• It can fulfill real-time monitoring of experimental data, queries six samples of experimental data, query alarm content.
Installation requirements of ISO 11925-2 Single Flame Source Test Apparatus
|Electrical||110V AC 60Hz / 230V AC 50Hz|
|Ambient Temperature||Operating 10°C to 35°C|
|Gas supply||Propane with a minimum purity of 95%.|
