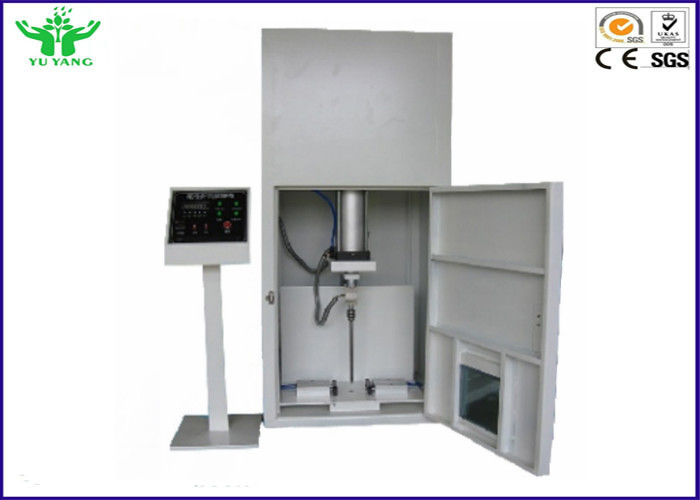

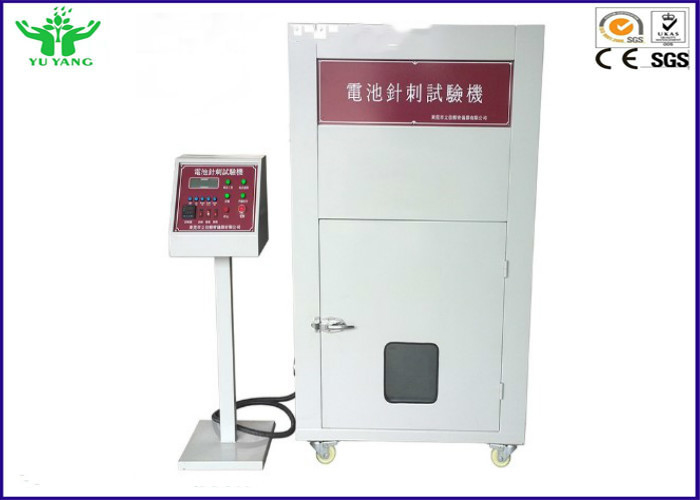

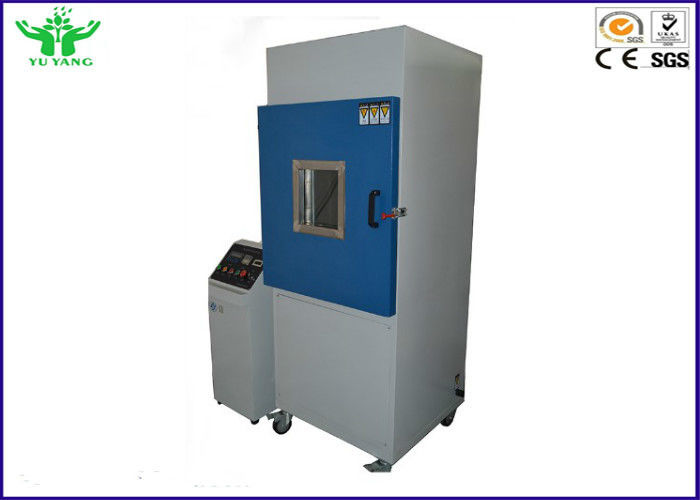

150kg-200kg Li-ion Battery Safety Performacne Nail Penetration Test Equipment
The machine use for testing the safety performance through the nail Penetration test. After testing, the battery should not catch fire,smoke or explode. It is also an essential testing device for every battery manufacturer and Research Institute.
1.The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.
2.Lighting system is designed to observe the internal testing process; The inner box materials are resistance combustible materials.
3. Nail Penetration force controllable within range from 250N to 13KN ,meet different standards.
4.The time can be set, the precision is higher, and the maximum force can be displayed directly.
5. Be equipped with the exhaust air vent (it is convenient for customers to discharge the odor produced in the battery test to the outside of the laboratory).
6.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety and Easy operation.
7. Double-layer explosion-proof glass window and explosion-proof chamber.
|Force Range||1~20KN(13KN standard)Adjustable, customized)|
|Tester Architecture||Free Stand & Vertical Nail Penetration|
|Power Supply||380V/50HZ 10A|
|Penetrating speed||10~ 40mm/s(adjustable)|
|Penetrating speed Accuracy||≤±1%|
|Test space||W300 X D300 X H200mm|
|High Temp. Resistant Steel Needles||Diameter φ3mm~φ8mm|
|Maximum penetration force||150~200KG|
|Observation window size||200 X 200mm(10mm thickness Double layer explosion-proof glass)|
|Overall Dimension||W780 X D630 X H1280mm|
|Exhaust fan||Diameter 120mm (Back side of the chamber is equipped with an exhaust fan)|
|Lighting||The top of the chamber is equipped with a light lamp|
|Controller||PLC automatic control, the man-machine interface presupposes various
working modes, and the operationis simple and convenient.
(Touch Screen optional)
|Penetrating Time Maintaining||0~99 Hours 99 Minutes & 99 seconds, time can be controllable to control
the deformation and stop if test fulfilled.
|Auxiliary Function||Explosion-proof Pressure Release System, Exhaust System,
|Stucture||Inner chamber: stainless steel plate|
|Outside of chamber: cold rolled plate with painting|
|Wheels: There are 4 Movable universal wheels in the bottom of chamber|
|Door: double layer door, flat handle, explosion-proof glass window.|
|Machine Weight||Estimate 120kg|
|Working environment||Allowed working environment:0 ~ 35ºC|
|Performance assurance environment:5 ~ 28ºC|
|The space between the equipment and the wall and the surroundings
must ≥ 1500mm.
|Using suggestion||Placing the equipment close to the window will be convenient to discharge
the odor produced in the test outside.
|Do not put flammable and explosive things around the equipment.|
|Equipment and related accessories should be maintained regularly|
|Customized service||Welcome to Non-standard,Specail requirements,OEM/ODM orders.|
